This example gives a tour of available frequency-domain requirements for control system tuning with `systune`

or `looptune`

.

The `systune`

and `looptune`

commands tune the parameters of fixed-structure control systems subject to a variety of time- and frequency-domain requirements. The `TuningGoal`

package is the repository for such design requirements.

The `TuningGoal.Gain`

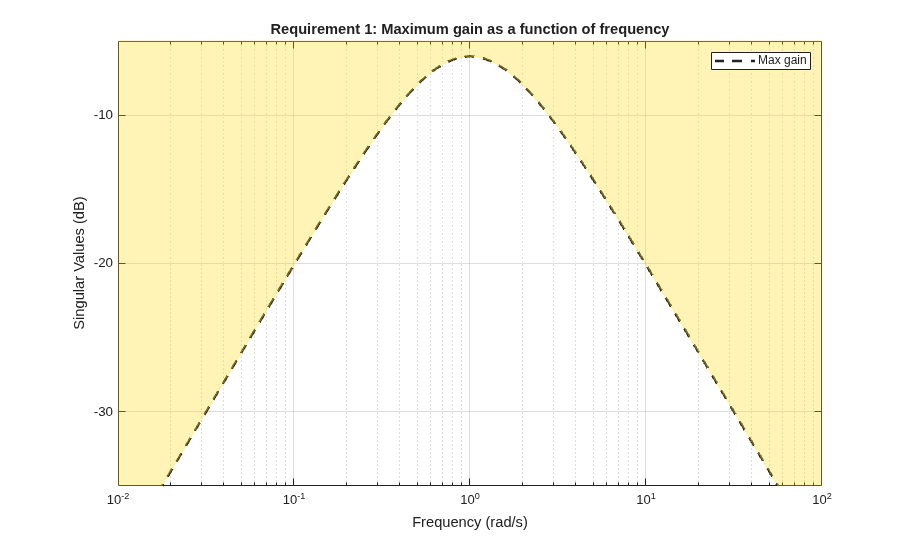

requirement enforces gain limits on SISO or MIMO closed-loop transfer functions. This requirement is useful to enforce adequate disturbance rejection and roll off, limit sensitivity and control effort, and prevent saturation. For MIMO transfer functions, "gain" refers to the largest singular value of the frequency response matrix. The gain limit can be frequency dependent. For example

s = tf('s'); R1 = TuningGoal.Gain('d','y',s/(s+1)^2);

specifies that the gain from `d`

to `y`

should not exceed the magnitude of the transfer function .

viewGoal(R1)

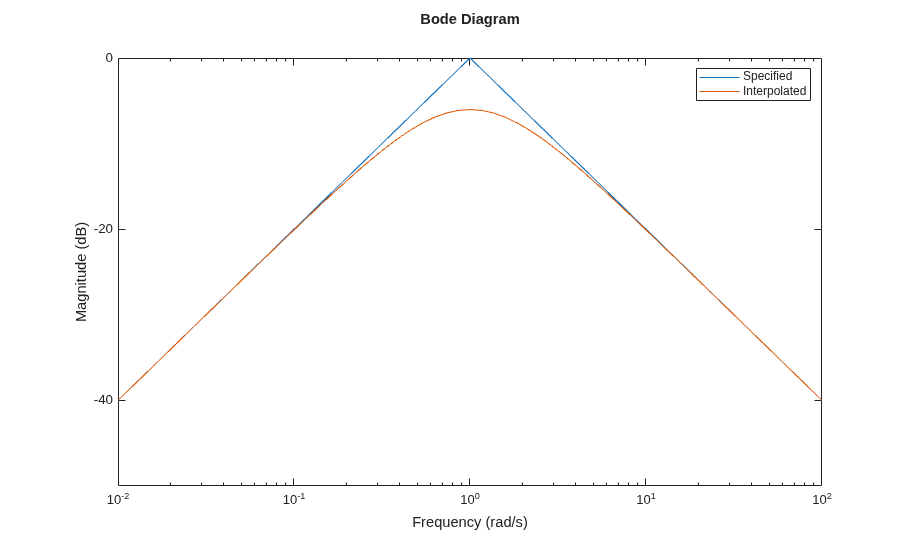

It is often convenient to just sketch the asymptotes of the desired gain profile. For example, instead of the transfer function , we could just specify gain values of 0.01,1,0.01 at the frequencies 0.01,1,100, the point (1,1) being the breakpoint of the two asymptotes and .

Asymptotes = frd([0.01,1,0.01],[0.01,1,100]); R2 = TuningGoal.Gain('d','y',Asymptotes);

The requirement object automatically turns this discrete gain profile into a gain limit defined at all frequencies.

bodemag(Asymptotes,R2.MaxGain) legend('Specified','Interpolated')

The `TuningGoal.Variance`

requirement limits the noise variance amplification from specified inputs to specified outputs. In technical terms, this requirement constrains the norm of a closed-loop transfer function. This requirement is preferable to `TuningGoal.Gain`

when the input signals are random processes and the average gain matters more than the peak gain. For example,

R = TuningGoal.Variance('n','y',0.1);

limits the output variance of `y`

to for a unit-variance white-noise input `n`

.

The `TuningGoal.Tracking`

requirement enforces reference tracking and loop decoupling objectives in the frequency domain. For example

R1 = TuningGoal.Tracking('r','y',2);

specifies that the output `y`

should track the reference `r`

with a two-second response time. Similarly

R2 = TuningGoal.Tracking({'Vsp','wsp'},{'V','w'},2);

specifies that `V`

should track `Vsp`

and `w`

should track `wsp`

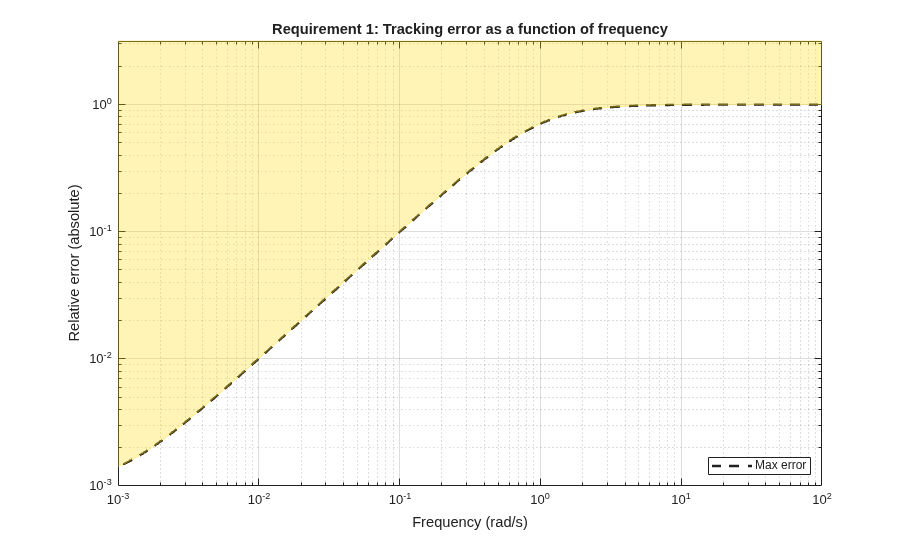

with minimum cross-coupling between the two responses. Tracking requirements are converted into frequency-domain constraints on the tracking error as a function of frequency. For the first requirement `R1`

, for example, the gain from `r`

to the tracking error `e = r-y`

should be small at low frequency and approach 1 (100%) at frequencies greater than 1 rad/s (bandwidth for a two-second response time). You can use `viewGoal`

to visualize this frequency-domain constraint. Note that the yellow region indicates where the requirement is violated.

viewGoal(R1)

If the response has excessive overshoot, use the `TuningGoal.Overshoot`

requirement in conjunction with the `TuningGoal.Tracking`

requirement. For example, you can limit the overshoot from `r`

to `y`

to 10% using

R3 = TuningGoal.Overshoot('r','y',10);

In feedback loops such as the one shown in Figure 1, the open- and closed-loop responses from disturbance to output are related by

where is the loop transfer function measured at the disturbance entry point. The gain of is the disturbance attenuation factor, the ratio between the open- and closed-loop sensitivities to the disturbance. Its reciprocal is the sensitivity at the disturbance input.

**Figure 1: Sample feedback loop.**

The `TuningGoal.Rejection`

requirement specifies the disturbance attenuation as a function of frequency. The attenuation factor is greater than one inside the control bandwidth since feedback control reduces the impact of disturbances. As a rule of thumb, a 10-times-larger attenuation requires a 10-times-larger loop gain. For example

```
R1 = TuningGoal.Rejection('u',10);
R1.Focus = [0 1];
```

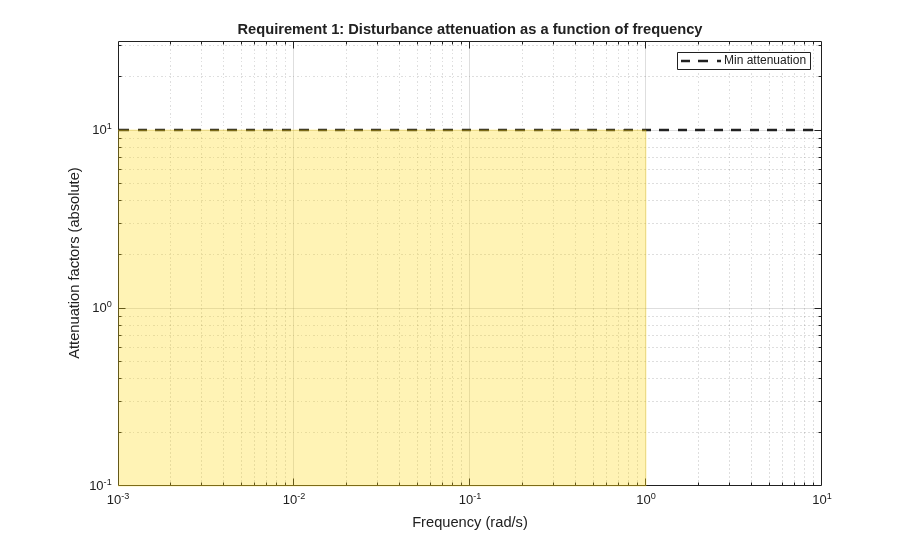

specifies that a disturbance entering at the plant input "u" should be attenuated by a factor 10 in the frequency band from 0 to 1 rad/s.

viewGoal(R1)

More generally, you can specify a frequency-dependent attenuation profile, for example

s = tf('s'); R2 = TuningGoal.Rejection('u',(s+10)/(s+0.1));

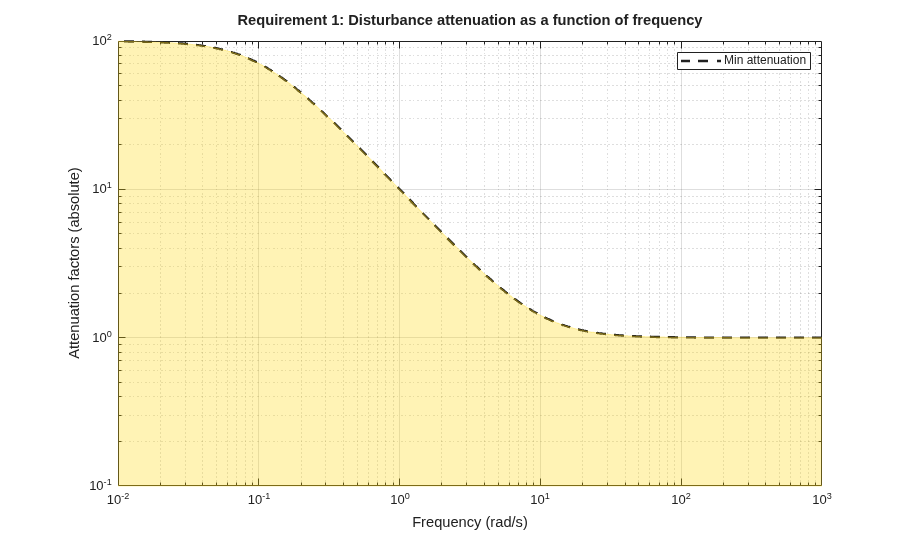

specifies an attenuation factor of 100 below 0.1 rad/s gradually decreasing to 1 (no attenuation) after 10 rad/s.

viewGoal(R2)

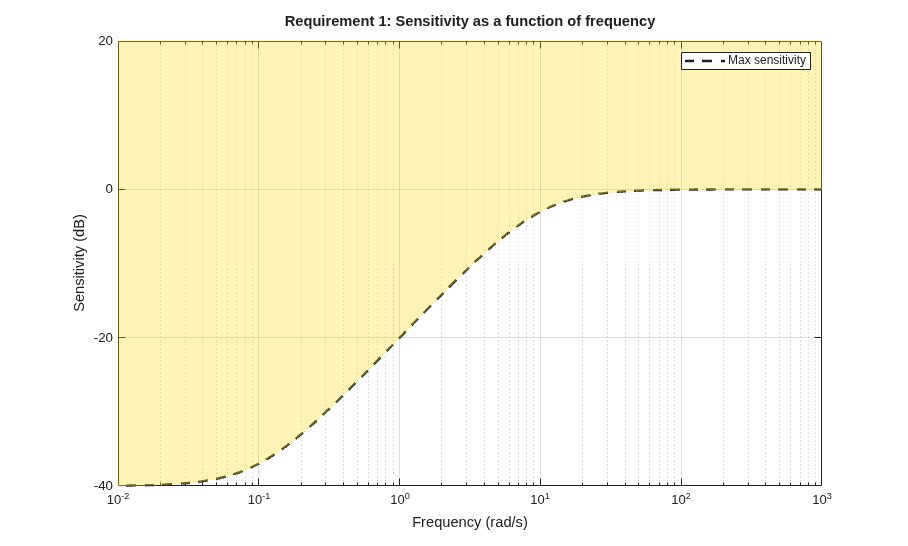

Instead of specifying the minimum attenuation, you can use the `TuningGoal.Sensitivity`

requirement to specify the maximum sensitivity, that is, the maximum gain of . For example,

```
R3 = TuningGoal.Sensitivity('u',(s+0.1)/(s+10));
```

is equivalent to the rejection requirement `R2`

above. The sensitivity increases from 0.01 (1%) below 0.1 rad/s to 1 (100%) above 10 rad/s.

viewGoal(R3)

The `TuningGoal.WeightedGain`

and `TuningGoal.WeightedVariance`

requirements are generalizations of the `TuningGoal.Gain`

and `TuningGoal.Variance`

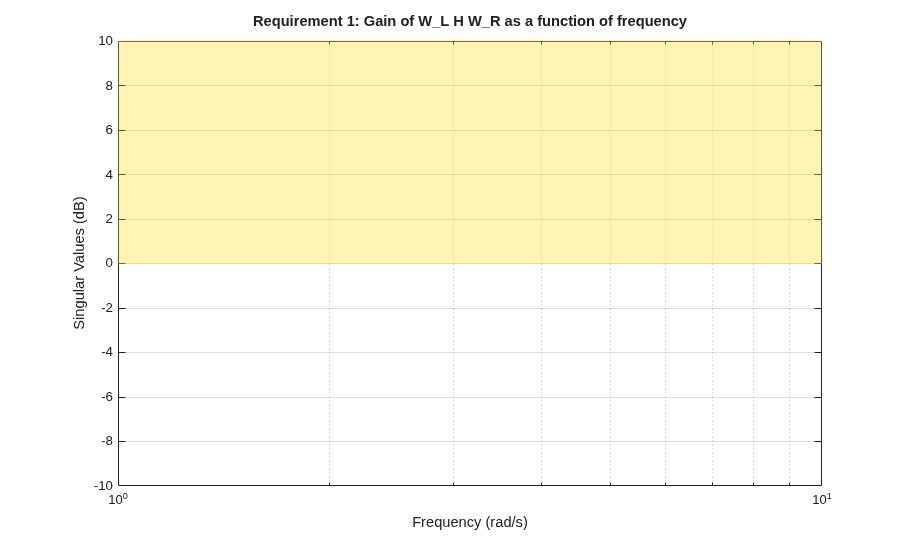

requirements. These requirements constrain the or norm of a frequency-weighted closed-loop transfer function , where and are user-defined weighting functions. For example

WL = blkdiag(1/(s+0.001),s/(0.001*s+1)); WR = []; R = TuningGoal.WeightedGain('r',{'e','y'},WL,[]);

specifies the constraint

Note that this is a normalized gain constraint (unit bound across frequency).

viewGoal(R)

`TuningGoal.Gain`

| `TuningGoal.Overshoot`

| `TuningGoal.Rejection`

| `TuningGoal.Sensitivity`

| `TuningGoal.Tracking`

| `TuningGoal.Variance`

| `TuningGoal.WeightedGain`

| `TuningGoal.WeightedVariance`
