Combine Buses into an Array of Buses

Tip

Simulink® provides several techniques for combining signals into a composite signal. For a comparison of techniques, see Types of Composite Signals.

What Is an Array of Buses?

An array of nonvirtual buses is an array whose elements are buses. Each bus object has the same signal name, hierarchy, and attributes for its bus elements.

An example of using an array of buses is to model a multi-channel system, such as a communications system. You can model all the channels using the same bus object, although each of the channels could have a different value.

To use an array of buses:

For an example of a model that uses an array of buses, open the sldemo_bus_arrays model. In this example, the nonvirtual bus input signals connect to a Vector Concatenate or Matrix Concatenate block that creates an array of bus signals. Here is the diagram after you update it:

The model uses the array of buses with:

  • An Assignment block, to assign a bus in the array

  • A For Each Subsystem block, to perform iterative processing over each bus in the array

  • A Memory block, to output the array of buses input from the previous time step

Benefits of an Array of Buses

Use an array of buses to:

  • Represent structured data compactly.

    • Reduce model complexity.

    • Reduce maintenance by centralizing algorithms used for processing multiple buses.

  • Streamline iterative processing of multiple buses of the same type, for example, by using a For Each Subsystem with the array of buses.

  • Simplify changing the number of buses, without your having to restructure the rest of the model or make updates in multiple places in the model.

  • Use built-in blocks, such as the Assignment or Selector blocks, to manipulate arrays of buses just like arrays of any other type. Using a array of buses avoids the need for you to create custom S-functions to manage packing and unpacking structure signals.

  • Use the combined bus data across subsystem boundaries, model reference boundaries, and into or out of a MATLAB Function block.

  • Keep all the logic in the Simulink model, rather than splitting the logic between C code and the Simulink model. This approach supports integrated consistency and correctness checking, maintaining metadata in the model, and avoids the need to manage model components in two different environments.

  • Generate code that has an array of C structures, which you can integrate with legacy C code that uses arrays of structures. This approach simplifies indexing into an array for Simulink computations, using a for loop on indexed structures.

Define an Array of Buses

For information about the kinds of buses that you can combine into an array of buses, see Bus Requirements.

To define an array of buses, use a Concatenate block. The table describes the array of buses input requirements and output for each of the Vector Concatenate and the Matrix Concatenate versions of the Concatenate block.

BlockBus Signal Input RequirementOutput
Vector Concatenate

Vectors, row vectors, or columns vectors

If any of the inputs are row or column vectors, output is a row or column vector.

Matrix Concatenate

Signals of any dimensionality (scalars, vectors, and matrices)

Trailing dimensions are assumed to be 1 for lower dimensionality inputs.

Concatenation is on the dimension that you specify with the Concatenate dimension parameter.

Note

Do not use a Mux block or a Bus Creator block to define an array of buses. Instead, use a Bus Creator block to create scalar bus signals.

  1. Define one bus object for all of the buses that you want to combine into an array of buses. For information about defining bus objects, see Specify Bus Properties with Bus Objects.

    The sldemo_bus_arrays model defines an sldemo_bus_arrays_busobject bus object, which both of the Bus Creator blocks use for the input bus signals (Scalar Bus) for the array of buses.

  2. Add a Vector Concatenate or Matrix Concatenate block to the model and open the Block Parameters dialog box.

    The sldemo_bus_arrays_busobject model uses a Vector Concatenate block, because the inputs are scalars.

  3. Set the Number of inputs parameter to be the number of buses that you want to be in the array of buses.

    The block icon displays the number of input ports that you specify.

  4. Set the Mode parameter to match the type of the input bus data.

    In the sldemo_bus_arrays model, the input bus data is scalar, so the Mode setting is Vector.

  5. If you use a Matrix Concatenation block, set the Concatenate dimension parameter to specify the output dimension along which to concatenate the input arrays. Enter one of the following values:

    • 1 — concatenate input arrays vertically

    • 2 — concatenate input arrays horizontally

    • A higher dimension than 2 — perform multidimensional concatenation on the inputs

  6. Connect to the Concatenate block all the buses that you want to be in the array of buses.

Group Constant Signals into an Array of Buses

You can use a Constant block to compactly represent multiple constant-valued signals as an array of buses. You can use this technique to reduce the number of signal lines in a model and the number of variables that the model uses, especially when the model repeats an algorithm with different parameter values.

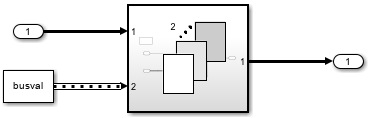

To generate a constant-valued array of bus signals, use an array of MATLAB® structures in a Constant block. The block output is an array of buses, and each field in the array of structures provides the simulation value for the corresponding signal element.

You can also use an array of structures to specify the Value property of a Simulink.Parameter object, and use the parameter object in a Constant block.

  1. Open the example model ex_constantbus_array.

    The variables ParamBus and const_param_struct appear in the base workspace. The variable const_param_struct contains a structure whose field names match the elements of the bus type that ParamBus defines.

  2. Update the diagram to view the signal line widths.

    The output of the Constant block is a single scalar bus of type ParamBus. The structure variable const_param_struct specifies the constant value in the block.

  3. At the command prompt, create an array of two structures by copying the structure const_param_struct. Customize the field values by indexing into the individual structures in the array.

    const_struct_array =...
     [const_param_struct const_param_struct];

    const_struct_array(2).Offset = 158;
    const_struct_array(2).Gain = 3.83;
    const_struct_array(2).Threshold = 1039.77

    const_struct_array =

    1x2 struct array with fields:

        Offset
        Gain
        Threshold


  4. In the Constant block dialog box, set Constant value to const_struct_array.

  5. Add two Selector blocks to the model, and connect the Constant block as shown.

  6. In the Selector block dialog box, set Index to 1 and Input port size to 2.

  7. In the Selector1 block dialog box, set Index to 2 and Input port size to 2.

  8. Copy the block algorithm in the model, and connect the blocks as shown.

  9. Update the diagram. The signal line width and style indicate that the output of the Constant block is an array of buses. The Selector blocks each extract one of the buses in the array.

    Each copy of the algorithm uses the constant values provided by the corresponding structure in the variable const_struct_array.

To create an array of structures for a bus that uses a large hierarchy of signal elements, consider using the function Simulink.Bus.createMATLABStruct. You can also use this technique to create an array of structures if you do not have a scalar structure that you can copy.
