TimeScopeConfiguration
Control Scope block appearance and behavior
Description
Scope configuration properties control the appearance and behavior of a scope
block. Create a scope configuration object with get_param
, and then
change property values using the object with dot notation.
Creation
myScopeConfiguration = get_param(gcbh,'ScopeConfiguration')
creates a scope configuration object for the selected scope block.
Properties
Title on a scope window, specified as a character vector or string scalar.
Size and location of scope window, specified as a four-element vector consisting of the left, bottom, width, and height positions, in pixels.
By default, a scope window appears in the center of your screen with a
width of 560
pixels and height of 420
pixels.
Set this property to true
to make the scope window
visible.
Set this property to true
to open the scope when the
simulation starts.
Set this property to true
to display the full path of
the scope relative to the model on top of the scope window. If you set this
property to false
, only the name of the scope block
appears on top of the scope window.
The Scope Viewer does not support this property.
Set this property to true
to maintain the background
color of the scope and the signal colors while copying the scope to
clipboard. When you paste this scope to a document or print this scope, the
colors are retained. If you set this property to false
and copy the scope to clipboard, colors change to a toner friendly version
when you paste or print the scope.
Number of input ports on a scope block, specified as a character vector or string scalar. The maximum number of input ports is 96.
Number of display rows and columns, specified as a two-element vector. The maximum layout dimension is 16-by-16.
If the number of displays is equal to the number of ports, signals from each port appear on separate displays.
If the number of displays is less than the number of ports, signals from additional ports appear on the last y-axis.
If the number of displays is greater than the number of ports, the scope creates empty tiles.
Time interval between Scope block updates during a simulation, specified as a character vector or string scalar. This property does not apply to floating scopes and scope viewers.
Set this property to true
to process each column of the
input as an independent channel (frame-based processing). Frame-based
processing is available only with discrete input signals.
Set this property to false
to process each element of
the input as an independent channel (sample-based processing).
Specify whether or not to maximize the size of signal plots:
'Auto'
— IfTitle
andYLabel
are not specified, maximize all plots. If one of the plots has a user-defined title or a y-axis label, theMaximizeAxes
property will be set to'Off'
.'On'
— Maximize all plots. Values inTitle
andYLabel
are hidden.'Off'
— Do not maximize plots.
Each of the plots expands to fit the full display. Maximizing the size of signal plots removes the background area around the plots.
Set this property to true
to hide the menu and
toolbar.
If you dock the scope, this property is inactive.
Method to scale y-axes, specified as one of these values:
'Manual'
— Manually scale y-axes using theYLimits
property or the pan and zoom operations on the scope display.'Auto'
— Scale y-axes during and after simulation.'Updates'
— Scale y-axes after the number of block updates (time intervals) you specify in theAxesScalingNumUpdates
property.
Number of updates before scaling y-axes, specified as a character vector or string scalar.
Dependencies
To enable this property, set AxesScaling
to
'Updates'
.
Length of x-axis range to display, specified as one of these values:
'Auto'
— Difference between the simulation start and stop times.'One frame period'
— Use the frame period of the input signal. This option is available only when you set theFrameBasedProcessing
property totrue
.Positive real number — Any value less than the total simulation time specified as a character vector or string scalar.
The block calculates the beginning and end times of the
x-axis range using the
TimeDisplayOffset
and TimeSpan
properties. For example, if you set TimeDisplay
to
10
and the TimeSpan
to
20
, the scope sets the x-axis
range from 10
to 30
.
Method to display data beyond the visible x-axis range, specified as one of these values:
'Wrap'
— Draw a full screen of data from left to right, clear the screen, and then restart drawing of data.'Scroll'
— Move data to the left as new data is drawn on the right. This mode is graphically intensive and can affect run-time performance.
You can see the effects of this option only when plotting is slow with large models or small step sizes.
Units to display on the x-axis, specified as one of these values:
'Metric'
— Display time units based on the length of theTimeSpan
property.'None'
— DisplayTime
on the x-axis.'Seconds'
— DisplayTime (seconds)
on the x-axis.
x-axis range offset number, specified as a character vector or string scalar. For input signals with multiple channels, enter a scalar or vector of offsets.
Scalar — Offset all channels of an input signal by the same value.
Vector — Independently offset the channels.
Location of x-axis labels display, specified as one of these:
'All'
— Display x-axis labels on all displays.'Bottom'
— Display x-axis labels only on the bottom display.'None'
— Do not display labels and deactivateShowTimeAxisLabel
property.
Set ShowTimeAxisLabel
to true
and
set Maximize axes
to 'Off'
.
Set this property to true
to display the
x-axis labels.
Set the ActiveDisplay
property before setting this
property.
If this property is set to true
, also set
TimeAxisLabels
. If
TimeAxisLabels
is set to 'None'
,
this property is inactive.
Scope display for setting display-specific properties, specified as a character vector or a string scalar. The display number corresponds to its column-wise placement index. For multi-column layouts, the displays are numbered down and then across.
Display-specific properties include ShowGrid
,
ShowLegend
, Title
,
PlotAsMagnitudePhase
, YLabel
,
and YLimits
.
Display title, specified as a character vector or string scalar. The
default value %<SignalLabel>
uses the input signal
name for the title.
Set the ActiveDisplay
property before setting this
property.
Set this property to true
to display the legend.
Names listed in the legend are the signal names from the model. For signals with multiple channels, a channel index is appended after the signal name. See the Scope block page for an example.
Set the ActiveDisplay
property before setting this
property.
Set this property to true
to display vertical and
horizontal grid lines on active display.
Set the ActiveDisplay
property before setting this
property.
Specify whether or not to display the magnitude and phase plots:
false
— Display signal plot.If the signal is complex, plot the real and imaginary parts on the same y-axis (display).
true
— Display magnitude and phase plots.If the signal is real, plot the absolute value of the signal for the magnitude. The phase is 0 degrees for positive values and 180 degrees for negative values.
Set the ActiveDisplay
property before setting this
property.
Minimum and maximum values of y-axis for active display, specified as a two-element numeric vector.
Set the ActiveDisplay
property before setting this
property.
When PlotAsMagnitudePhase
is true
,
this property specifies the y-axis limits for the
magnitude plot. The y-axis limits of the phase plot are
always [-180 180]
.
y-axis label for active display, specified as a character vector or string scalar.
Set the ActiveDisplay
property before setting this
property.
If PlotAsMagnitudePhase
is true
,
the value of YLabel
is hidden and plots are labeled
Magnitude
and Phase
.
Set this property to true
to save scope data to a
variable in the MATLAB® workspace. This property does not apply to floating scopes and
scope viewers.
If this property is set to true
, you must also specify
the properties DataLoggingVariableName
and
DataLoggingSaveFormat
.
This property does not apply to floating scopes and scope viewers.
Variable name for saving scope data in the MATLAB workspace, specified as a character vector or string scalar. This property does not apply to floating scopes and scope viewers.
This property does not apply to floating scopes and scope viewers.
Dependencies
To enable this property, set DataLogging
to
true
.
Set this property to true
to limit buffered data before
plotting and saving data.
For simulations with Stop Time set to
inf
, set this parameter to
true
.
If you set this property to true
, also specify the
number of data values to plot and save with the
DataLoggingMaxPoints
property.
Maximum number of data values to plot and save, specified as a character vector or string scalar. The scope plots and saves the data values from the end of a simulation. For example, setting this property to 100 saves the last 100 data points.
Dependencies
To enable this property, set
DataLoggingLimitDataPoints
to
true
. Specifying this property limits the data
values a scope plots and saves in the MATLAB variable specified in
DataLoggingVariableName
.
Set this property to true
to reduce scope data before
plotting and saving.
If this property is set to true
, you must also specify
the DataLoggingDecimation
property.
Decimation factor applied to the signal data before plotting and saving,
specified as a character vector or string scalar. The scope buffers every
Nth data point, where
N is the decimation factor you specify. A value of
1
buffers all data values.
Dependencies
To enable this property, set
DataLoggingDecimateData
to
true
.
Variable format for saving scope data to the MATLAB workspace, specified as one of these values:
'Dataset'
— Save data as a dataset object. This format does not support variable-size data, MAT-file logging, or external mode archiving. For more information, seeSimulink.SimulationData.Dataset
.'StructureWithTime'
— Save data as a structure with associated time information. This format does not support single- or multiport data, or multirate data.'Structure'
— Save data as a structure. This format does not support multirate data.'Array'
— Save data as an array with associated time information. This format does not support single- or multiport data, variable-size data, or multirate data.
This property does not apply to floating scopes and scope viewers.
Dependencies
To enable this property, set DataLogging
to
true
.

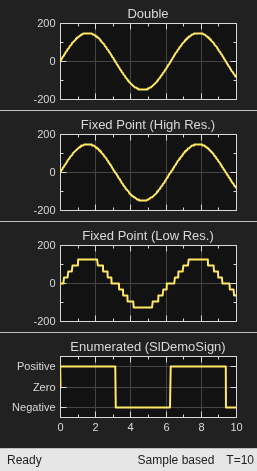

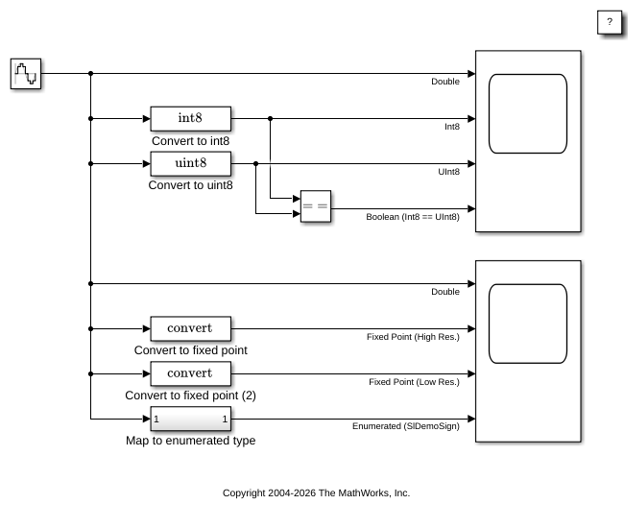

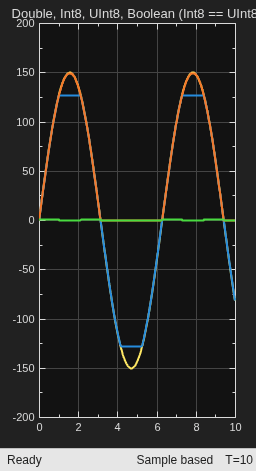

Examples
This example creates a scope configuration object using the 'vdp' model which models the van der Pol equation.
open_system('vdp') myScopeConfiguration = get_param('vdp/Scope','ScopeConfiguration'); myScopeConfiguration.NumInputPorts = '2';
Version History
Introduced in R2013a
See Also
Scope | Floating Scope | Time Scope (DSP System Toolbox)
