Include Functional Mockup Unit (FMU) in model
Simulink Extras / FMU Import
The FMU block imports existing functional mockup units (FMUs) into Simulink®. The block automatically selects an FMU mode based on the existing FMU you want to import:

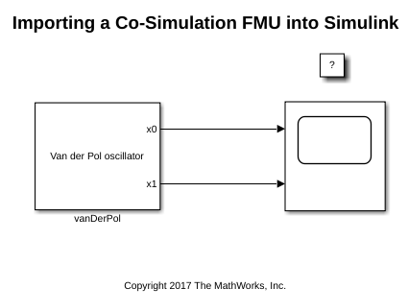

Co-Simulation — Integrate FMUs that implement a
Functional Mock-up Interface (FMI) Co-Simulation interface. These FMUs may
contain local solvers that are used for tool coupling.

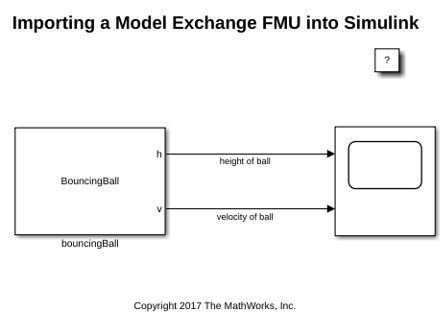

Model Exchange — Integrate FMUs that implement an
FMI Model Exchange interface. These FMUs do not contain local solvers. Instead,
they inherit solvers from Simulink.
This block supports FMI versions 1.0 and 2.0. For FMI version 2.0, if your FMU contains both Co-Simulation and Model Exchange elements, the block detects them and prompts you to select the mode you want the block to operate in.
To use this block, you must first have an existing FMU, exported from another tool, or authored in C language.
Port_1— Placeholder port
Placeholder port that produces no output as is. Input and output ports are configured when an actual FMU is imported into the block. Both input and output ports support numerical and string data types. String size is limited to 255.
FMU name— FMU name
Specify the name of an FMU, with or without the file extension. This entry is case sensitive. The FMU must exist on the MATLAB® path.
To specify an FMU name, enter the name in the FMU name text box.
When you click OK, the block creates an /slprj/_fmu/unique_ID folder with the unpacked files and the file hierarchy intact.
|Type: character vector|
|Values: name of an FMU, with or without file extension|
Enable FMU debug logging— Enable FMU logging for debug purposes
Redirect debug logs to— Specify where to direct debug logs
Enable FMU tolerance— Specify FMU tolerance
Relative tolerance— FMU tolerance
Communication Step Size— Step size between co-simulation time instants
Specify the time interval between simulation time instants for the block.
To inherit the sample time from the driving block or the model solver, set
this parameter to
-1. For more information, see Specify Sample Time.
