Vision Sensors
R2026bSensors that capture images
Configure sensor blocks to determine the presence, orientation, and accuracy of surrounding objects.
Blocks
 | Pixy2 Vision Sensor | Represent connected CMUcam5 Pixy2 vision sensor and tracks object (color blob) (Since R2023a) |
 | OV2640 Camera Sensor | Capture JPEG images using ArduCam 2MP Mini Plus camera module with OV2640 sensor (Since R2023b) |
Featured Examples
Get Started with Pixy2 Vision Sensor for Robotics Applications Using Arduino Hardware and Simulink
Use Simulink® Support Package for Arduino® Hardware and an Arduino hardware board to get started with interfacing the Pixy2 vision sensor for robotics applications.

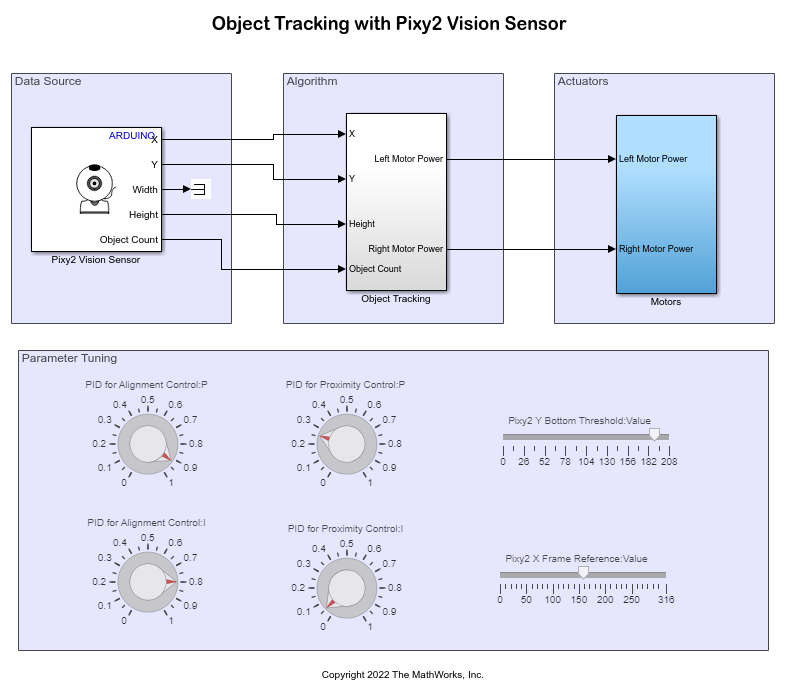

Develop Object Tracking Robot Using Arduino Hardware and Simulink
Use Simulink® Support Package for Arduino® Hardware and an Arduino hardware board to develop object tracking robot.

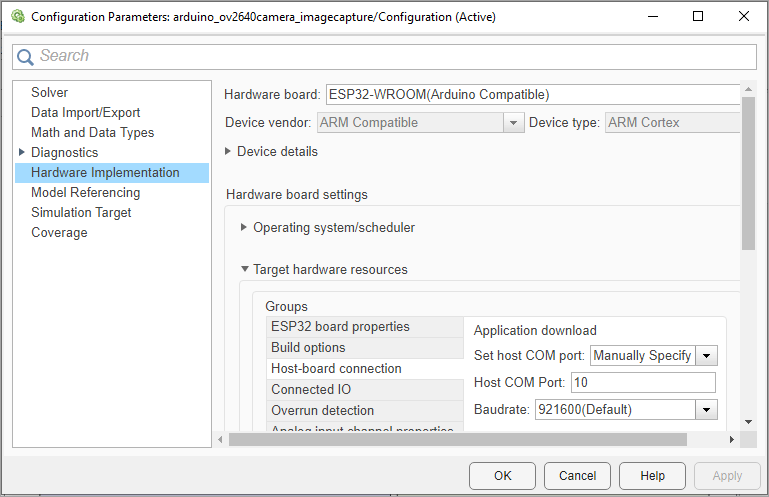

Capture Images Using ArduCam OV2640 Camera Module and ESP32 Hardware
Capture JPEG images using the ArduCam OV2640 camera module with ESP32 hardware.
