Measure IIP2 of Device Under Test

R2026b
Open Script

Use the IIP2 Testbench block to verify the input second-order intercept (IIP2) of a device under test (DUT).

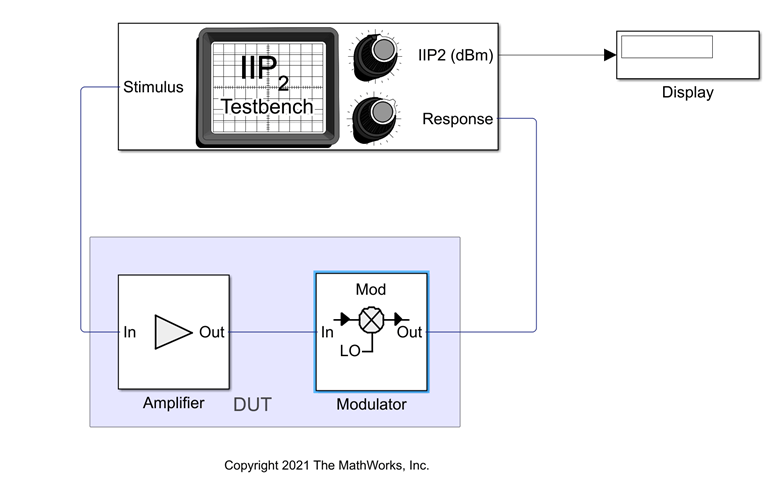

Connect the blocks as shown in the model.

Set the parameters for DUT and the testbench.

Amplifier block:

  • Available power gain — 10 dB

  • Intercept points convention — Input

Mixer block:

  • Available power gain — 5 dB

  • Local oscillator frequency — 2.0 GHz

  • Add Image Reject filter — on

  • Intercept points convention — Input

  • IP2 — 32 dBm

  • Filter type — Highpass

  • Implementation — Constant per carrier

  • Passband edge frequency — 2.05 GHz

IIP2 Testbench block:

  • Input frequency (Hz) — 2.1e9

  • Output frequency (Hz) — 0.1e9

  • Simulate noise (both stimulus and DUT internal) — off

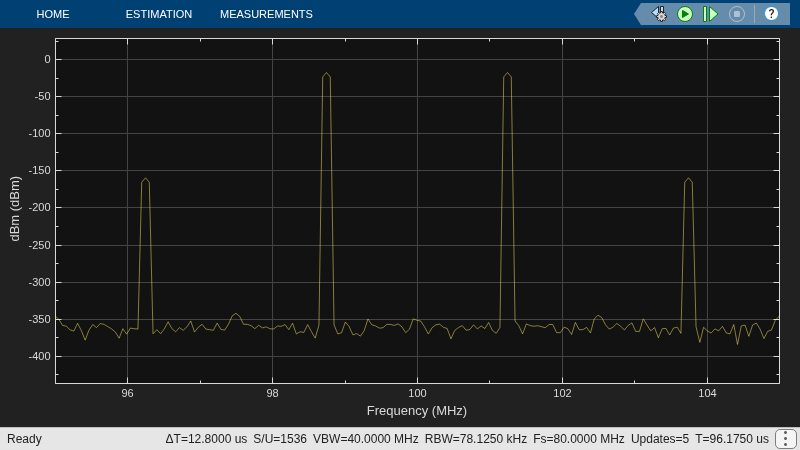

Run the model. Since the mixer is preceded by a 10 dB amplifier you will see that the display shows an IIP2 value of 22 dBm. This is calculated using the rquation, IIP2_DUT = IIP2 of mixer – available power gain of amplifier = 22 dBm.
