Model phase shift in RF systems
RF Blockset / Circuit Envelope / Elements

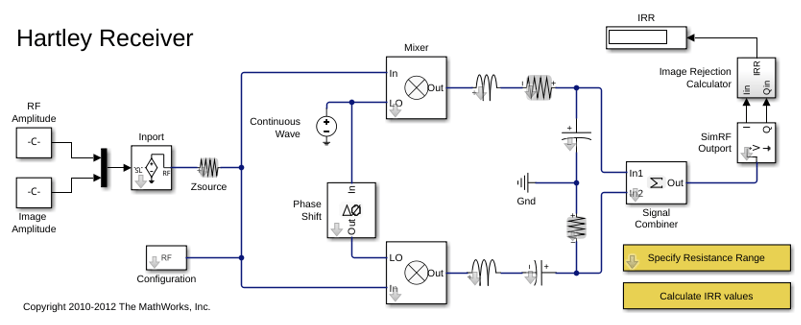

The Phase Shift block models an ideal phase shift in the circuit envelope environment. To learn how to use Phase Shift block to measure image rejection ratio in receiver, see Measuring Image Rejection Ratio in Receivers example.
Phase shift— Phase shift angle
90 deg(default) | non-negative scalar integer
Phase shift angle, specified as a nonnegative scalar integer in degrees. The phase shift is applied to all nonzero simulation frequencies. For zero (DC) frequency, the shift is always zero.
