Reconstruct a Signal from Irregularly Sampled Data

People predisposed to blood clotting are treated with warfarin, a blood thinner. The international normalized ratio (INR) measures the effect of the drug. Larger doses increase the INR and smaller doses decrease it. Patients are monitored regularly by a nurse, and when their INRs fall out of the target range, their doses and the frequencies of their tests change.

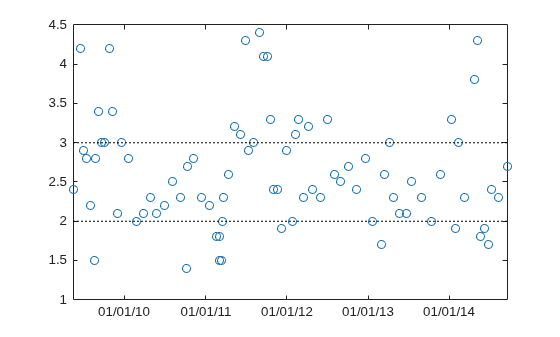

The file INR.mat contains the INR measurements performed on a patient over a five-year period. The file includes a datetime array with the date and time of each measurement, and a vector with the corresponding INR readings. Load the data. Plot the INR as a function of time and overlay the target INR range.

plot(Date,INR,'o','DatetimeTickFormat','MM/dd/yy')

xlim([Date(1) Date(end)])
hold on
plot([xlim;xlim]',[2 3;2 3],'k:')

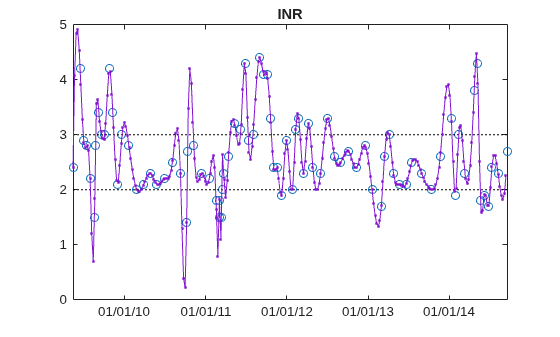

Resample the data to make the INR readings uniformly spaced. The first reading was taken at 11:28 a.m. on a Friday. Use resample to estimate the patient's INR at that time on every subsequent Friday. Specify a sample rate of one reading per week, or equivalently, $1/\left(7×86400\right)$ readings per second. Use spline interpolation for the resampling.

Date.Format = 'eeee, MM/dd/yy, HH:mm';
First = Date(1)
First = datetime
Friday, 05/15/09, 11:28

perweek = 1/7/86400;

[rum,tee] = resample(INR,Date,perweek,1,1,'spline');

plot(tee,rum,'.-','DatetimeTickFormat','MM/dd/yy')

title('INR')
xlim([Date(1) Date(end)])
hold off

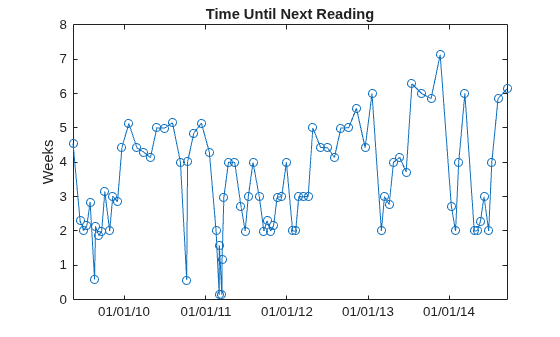

Each INR reading determines when the patient must be tested next. Use diff to construct a vector of time intervals between measurements. Express the intervals in weeks and plot them using the same x-axis as before. For the last point, use the next date prescribed by the anticoagulation nurse. The measurements are carried out in the United States.

nxt = datetime('10/30/2014 07:00 PM','Locale','en_US');

plot(Date,days(diff([Date;nxt]))/7,'o-', ...
'DatetimeTickFormat','MM/dd/yy')
