Link Budget Analysis

Satellite link budget analysis and path propagation loss

Satellite Communications Toolbox provides link budget analysis capabilities and RF propagation models.

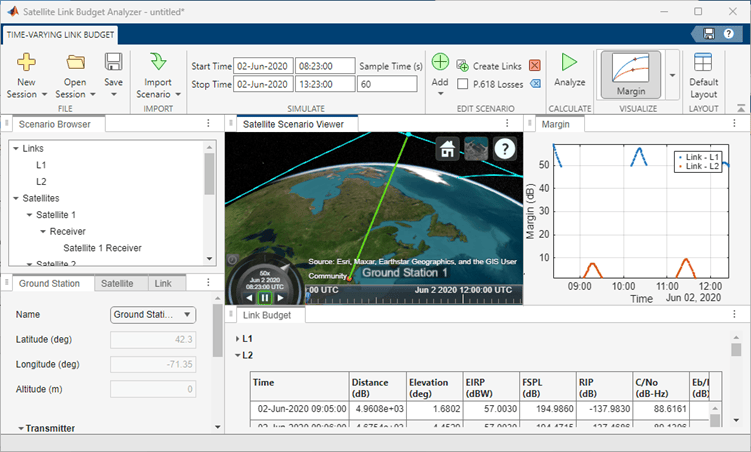

  • Use Satellite Link Budget Analyzer app to analyze, design, and visualize a link budget for satellite communications.

  • Model RF propagation paths to calculate atmospheric loss for a signal.

Apps

Satellite Link Budget AnalyzerAnalyze link budgets for satellite communications

Functions

p618PropagationLossesCalculate Earth-space propagation losses, cross-polarization discrimination, and sky noise temperature
p618SiteDiversityOutageCalculate outage probability due to rain attenuation with site diversity

Objects

p618ConfigCreate P.618 configuration object
p618SiteDiversityConfigCreate P.618 site diversity configuration object

Topics
