# Fixed-Structure H-infinity Synthesis with `hinfstruct`

This example uses the `hinfstruct`

command to tune a fixed-structure controller subject to $${H}_{\infty}$$ constraints.

### Introduction

The `hinfstruct`

command extends classical $${H}_{\infty}$$ synthesis (see `hinfsyn`

) to fixed-structure control systems. This command is meant for users already comfortable with the `hinfsyn`

workflow. If you are unfamiliar with $${H}_{\infty}$$ synthesis or find augmented plants and weighting functions intimidating, use `systune`

and `looptune`

instead. See Tune Control Systems Using systune for the `systune`

counterpart of this example.

### Plant Model

This example uses a 9th-order model of the head-disk assembly (HDA) in a hard-disk drive. This model captures the first few flexible modes in the HDA.

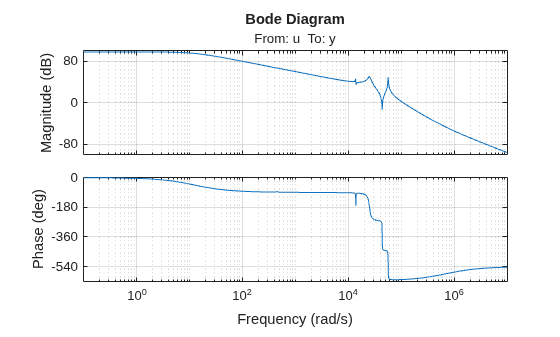

load hinfstruct_demo G bode(G), grid

We use the feedback loop shown below to position the head on the correct track. This control structure consists of a PI controller and a low-pass filter in the return path. The head position `y`

should track a step change `r`

with a response time of about one millisecond, little or no overshoot, and no steady-state error.

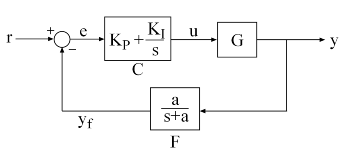

**Figure 1: Control Structure**

### Tunable Elements

There are two tunable elements in the control structure of Figure 1: the PI controller $$C(s)$$ and the low-pass filter

$$F(s)=\frac{a}{s+a}.$$

Use the `tunablePID`

class to parameterize the PI block and specify the filter $$F(s)$$ as a transfer function depending on a tunable real parameter $$a$$.

C0 = tunablePID('C','pi'); % tunable PI a = realp('a',1); % filter coefficient F0 = tf(a,[1 a]); % filter parameterized by a

### Loop Shaping Design

Loop shaping is a frequency-domain technique for enforcing requirements on response speed, control bandwidth, roll-off, and steady state error. The idea is to specify a target gain profile or "loop shape" for the open-loop response $$L(s)=F(s)G(s)C(s)$$. A reasonable loop shape for this application should have integral action and a crossover frequency of about 1000 rad/s (the reciprocal of the desired response time of 0.001 seconds). This suggests the following loop shape:

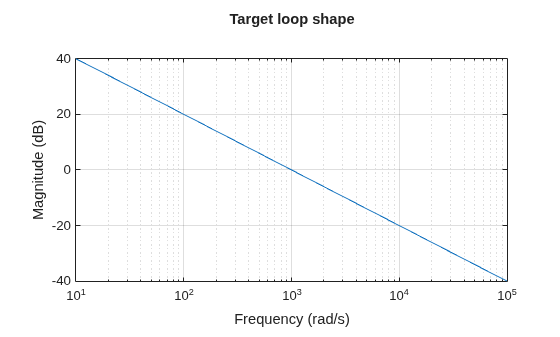

wc = 1000; % target crossover s = tf('s'); LS = (1+0.001*s/wc)/(0.001+s/wc); bodemag(LS,{1e1,1e5}), grid, title('Target loop shape')

Note that we chose a bi-proper, bi-stable realization to avoid technical difficulties with marginally stable poles and improper inverses. In order to tune $$C(s)$$ and $$F(s)$$ with `hinfstruct`

, we must turn this target loop shape into constraints on the closed-loop gains. A systematic way to go about this is to instrument the feedback loop as follows:

Add a measurement noise signal

`n`

Use the target loop shape

`LS`

and its reciprocal to filter the error signal`e`

and the white noise source`nw`

.

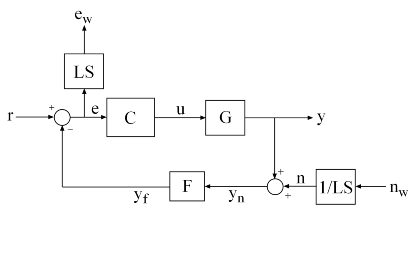

**Figure 2: Closed-Loop Formulation**

If $$T(s)$$ denotes the closed-loop transfer function from `(r,nw)`

to `(y,ew)`

, the gain constraint

$$\Vert T{\Vert}_{\infty}<1$$

secures the following desirable properties:

At low frequency (w<wc), the open-loop gain stays above the gain specified by the target loop shape

`LS`

At high frequency (w>wc), the open-loop gain stays below the gain specified by

`LS`

The closed-loop system has adequate stability margins

The closed-loop step response has small overshoot.

We can therefore focus on tuning $$C(s)$$ and $$F(s)$$ to enforce $\Vert T{\Vert}_{\infty}<1$.

### Specifying the Control Structure in MATLAB

In MATLAB®, you can use the `connect`

command to model $$T(s)$$ by connecting the fixed and tunable components according to the block diagram of Figure 2:

% Label the block I/Os Wn = 1/LS; Wn.u = 'nw'; Wn.y = 'n'; We = LS; We.u = 'e'; We.y = 'ew'; C0.u = 'e'; C0.y = 'u'; F0.u = 'yn'; F0.y = 'yf'; % Specify summing junctions Sum1 = sumblk('e = r - yf'); Sum2 = sumblk('yn = y + n'); % Connect the blocks together T0 = connect(G,Wn,We,C0,F0,Sum1,Sum2,{'r','nw'},{'y','ew'});

These commands construct a generalized state-space model `T0`

of $$T(s)$$. This model depends on the tunable blocks `C`

and `a`

:

T0.Blocks

`ans = `*struct with fields:*
C: [1x1 tunablePID]
a: [1x1 realp]

Note that `T0`

captures the following "Standard Form" of the block diagram of Figure 2 where the tunable components $$C,F$$ are separated from the fixed dynamics.

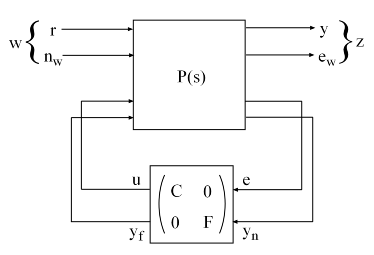

**Figure 3: Standard Form for Disk-Drive Loop Shaping**

### Tuning the Controller Gains

We are now ready to use `hinfstruct`

to tune the PI controller $$C$$ and filter $$F$$ for the control architecture of Figure 1. To mitigate the risk of local minima, run three optimizations, two of which are started from randomized initial values for `C0`

and `F0`

.

rng('default') opt = hinfstructOptions('Display','final','RandomStart',5); T = hinfstruct(T0,opt);

Final: Peak gain = 3.88, Iterations = 67 Final: Peak gain = 597, Iterations = 190 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 597, Iterations = 186 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 1.56, Iterations = 123 Final: Peak gain = 1.56, Iterations = 98 Final: Peak gain = 1.56, Iterations = 98

The best closed-loop gain is 1.56, so the constraint $\Vert T{\Vert}_{\infty}<1$ is nearly satisfied. The `hinfstruct`

command returns the tuned closed-loop transfer $$T(s)$$. Use `showTunable`

to see the tuned values of $$C$$ and the filter coefficient $$a$$:

showTunable(T)

C = 1 Kp + Ki * --- s with Kp = 0.000846, Ki = 0.0103 Name: C Continuous-time PI controller in parallel form. ----------------------------------- a = 5.49e+03

Use `getBlockValue`

to get the tuned value of $$C(s)$$ and use `getValue`

to evaluate the filter $$F(s)$$ for the tuned value of $$a$$:

C = getBlockValue(T,'C'); F = getValue(F0,T.Blocks); % propagate tuned parameters from T to F tf(F)

ans = From input "yn" to output "yf": 5486 -------- s + 5486 Continuous-time transfer function.

To validate the design, plot the open-loop response `L=F*G*C`

and compare with the target loop shape `LS`

:

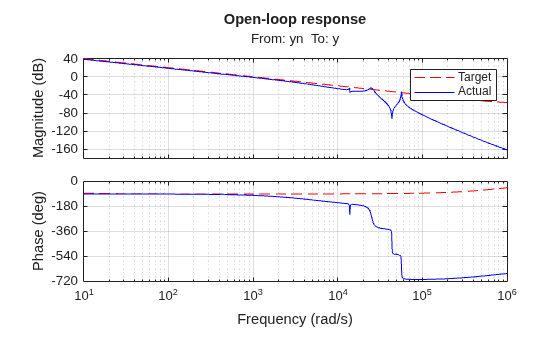

bode(LS,'r--',G*C*F,'b',{1e1,1e6}), grid, title('Open-loop response'), legend('Target','Actual')

ans = Legend (Target, Actual) with properties: String: {'Target' 'Actual'} Location: 'northeast' Orientation: 'vertical' FontSize: 8.1000 Position: [0.7851 0.8257 0.1693 0.0884] Units: 'normalized' Use GET to show all properties

The 0dB crossover frequency and overall loop shape are as expected. The stability margins can be read off the plot by right-clicking and selecting the **Characteristics** menu. This design has 24dB gain margin and 81 degrees phase margin. Plot the closed-loop step response from reference `r`

to position `y`

:

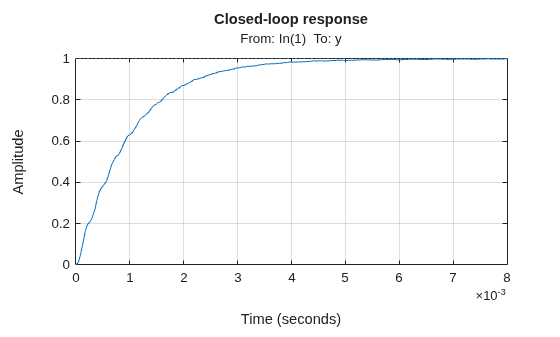

`step(feedback(G*C,F)), grid, title('Closed-loop response')`

While the response has no overshoot, there is some residual wobble due to the first resonant peaks in `G`

. You might consider adding a notch filter in the forward path to remove the influence of these modes.

### Tuning the Controller Gains from Simulink

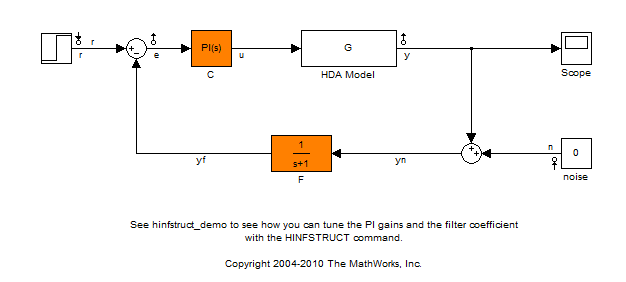

Suppose you used this Simulink model to represent the control structure. If you have Simulink® Control Design™ installed, you can tune the controller gains from this Simulink model as follows. First mark the signals `r,e,y,n`

as Linear Analysis points in the Simulink model.

Then create an instance of the `slTuner`

interface and mark the Simulink blocks `C`

and `F`

as tunable:

ST0 = slTuner('rct_diskdrive',{'C','F'});

Since the filter $$F(s)$$ has a special structure, explicitly specify how to parameterize the `F`

block:

a = realp('a',1); % filter coefficient setBlockParam(ST0,'F',tf(a,[1 a]));

Finally, use `getIOTransfer`

to derive a tunable model of the closed-loop transfer function $$T(s)$$ (see Figure 2)

% Compute tunable model of closed-loop transfer (r,n) -> (y,e) T0 = getIOTransfer(ST0,{'r','n'},{'y','e'}); % Add weighting functions in n and e channels T0 = blkdiag(1,LS) * T0 * blkdiag(1,1/LS);

You are now ready to tune the controller gains with `hinfstruct`

:

rng(0) opt = hinfstructOptions('Display','final','RandomStart',5); T = hinfstruct(T0,opt);

Final: Peak gain = 3.88, Iterations = 67 Final: Peak gain = 597, Iterations = 183 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 597, Iterations = 173 Some closed-loop poles are marginally stable (decay rate near 1e-07) Final: Peak gain = 3.88, Iterations = 70 Final: Peak gain = 1.56, Iterations = 98 Final: Peak gain = 1.56, Iterations = 100

Verify that you obtain the same tuned values as with the MATLAB approach:

showTunable(T)

C = 1 Kp + Ki * --- s with Kp = 0.000846, Ki = 0.0103 Name: C Continuous-time PI controller in parallel form. ----------------------------------- a = 5.49e+03
