Spaceborne Synthetic Aperture Radar Performance Prediction

This example shows how to assess the performance of a spaceborne synthetic aperture radar (SAR) and compares theoretical limits with achievable requirements for a SAR system. SAR uses the motion of the radar antenna over a target region to provide finer azimuth resolution. Given the main parameters of both the radar (e.g. the operating frequency, antenna size, and bandwidth) and the platform it is mounted on (e.g. altitude, velocity, mounting position), we'll determine performance parameters such as the footprint, the azimuth and range resolution, the signal to-noise ratio (SNR) of the SAR image, and the noise equivalent reflectivity (NER).

SAR System Parameters and Conventions

We consider a radar on a low Earth orbit (LEO) satellite operating in C-band at 5.5 GHz with a pulse bandwidth of 500 MHz. The satellite is at an altitude of 565 km and moves with a velocity of 7.0 km/s. The radar antenna dimensions are 5.2 m (along azimuth) by 1.1 m in height. We assume that returns are processed for 0.8 sec and that the squint angle is 90 degrees.

% Platform configuration
v = 7e3;                     % Velocity (m/s)
h = 565e3;                   % Altitude (m)

% Radar signal configuration
freq = 5.5e9;                % Radar frequency (Hz)
lambda = freq2wavelen(freq); % Wavelength (m)
bw = 500e6;                  % Bandwidth (Hz)
proctime = 0.8;              % Processing time (sec)

% Antenna dimensions
daz = 5.2;                   % Along azimuth (m)
del = 1.1;                   % Along height (m)

Real Antenna Beamwidth and Gain

We use the ap2beamwidth function to calculate the real antenna beamwidth.

realAntBeamwidth = ap2beamwidth([daz del],lambda) % [Az El] (deg)
realAntBeamwidth = 2×1

    0.6006
    2.8391

We use the aperture2gain function to calculate the antenna gain.

antGain = aperture2gain(daz*del, lambda) % dBi
antGain = 43.8369

Antenna Orientation

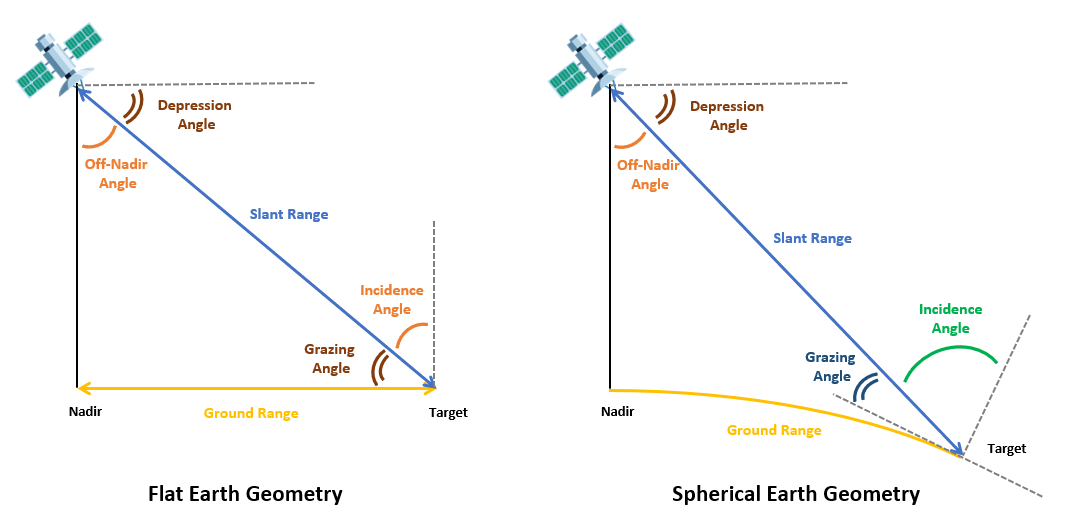

Where should we point the antenna? The depression angle is often used to define the antenna pointing direction.

Earth Curvature Effects

A typical assumption for many radar systems is that the earth is sufficiently flat so that the depression angle is the same as the grazing angle as represented in the figure above.

depang_flat = (45:85)';
grazang_flat = depang_flat;
losrng = h./sind(depang_flat);  % Line-of-sight range (m)

We use the depressionang and grazingang functions to calculate the depression and grazing angles respectively from the line-of-sight range. Using a spherical Earth model instead of the flat Earth model, we observe that at ranges above 660 km the depression angle correction is greater than the half beamwidth so it is critical to account for the Earth curvature in this scenario.

Rearth = physconst('earthradius');
depang_sph = depressionang(h,losrng,'Curved',Rearth);
grazang_sph = grazingang(h,losrng,'Curved',Rearth);

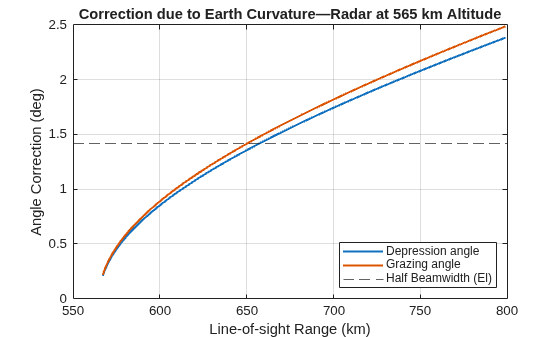

plot(losrng/1e3,[depang_sph-depang_flat grazang_flat-grazang_sph],'Linewidth',1.5)
grid on;
yline(realAntBeamwidth(2)/2,'--') % Half-beam width (Elevation)
xlabel('Line-of-sight Range (km)')
ylabel('Angle Correction (deg)')
legend('Depression angle','Grazing angle','Half Beamwidth (El)','Location','southeast')
title(['Correction due to Earth Curvature - Radar at ',num2str(h/1e3),' km Altitude'])

Non-line-of-sight propagation

Radar energy is refracted by the atmosphere and bends towards the Earth, allowing the radar to see beyond the horizon. We use the effearthradius function to model the effect of tropospheric refraction using the average radius of curvature method. Since the effective Earth radius is equal to the actual Earth radius, we conclude that the tropospheric refraction is negligible in this scenario. Ionospheric refraction is ignored in this study.

tgtHeight = 0;                             % Smooth Earth
NS = 313;                                  % Reference atmosphere N-Units
Re = effearthradius(min(losrng),h,tgtHeight,'SurfaceRefractivity',NS); % Effective Earth radius (m)
Re/Rearth
ans = 1

For the rest of this example, we select a depression angle of 68.96 degrees which corresponds to a grazing angle of 67 degrees and a slant range of 609.4 km.

depang = depang_sph(24)
depang = 68.9629
grazang = grazang_sph(24)
grazang = 66.9953
slantrng = losrng(24)
slantrng = 6.0937e+05

Footprint and Resolution of Real and Synthetic Aperture Antennas

Radar Footprint

Next, we calculate the antenna footprint using the aperture2swath function. The footprint is determined by the along range swath (or distance covered in the along range direction) and the cross-range swath (or distance covered in the cross-range direction).

[rangeswath, crngswath] = aperture2swath(slantrng,lambda,[del daz],grazang);
['Real antenna range footprint: ', num2str(round(engunits(rangeswath),1)), ' km']
ans =
'Real antenna range footprint: 32.8 km'
['Real antenna cross range footprint: ', num2str(round(engunits(crngswath),1)), ' km']
ans =
'Real antenna cross range footprint: 6.4 km'

We calculate the distance from the ground track (or nadir of the satellite) to the center of the radar beam on the ground. Notice that while the Earth curvature has a small effect on the footprint size, it shifts the beam center position by 9.5 km in the along range direction for a given slant range of 609.4 km.

distgrndtrack_flat = h/tand(grazang_flat(24)); % Flat Earth Model
['Distance from nadir to center of the footprint (Flat Earth Model): ', num2str(round(engunits(distgrndtrack_flat),1)), ' km']
ans =
'Distance from nadir to center of the footprint (Flat Earth Model): 228.3 km'
distgrndtrack = Re*deg2rad(depang-grazang);    % Taking Earth curvature into account
['Distance from nadir to center of the footprint: ', num2str(round(engunits(distgrndtrack),1)), ' km']
ans =
'Distance from nadir to center of the footprint: 218.8 km'

Footprint Sensitivity to Frequency and Angle Variations

We analyze the antenna footprint sensitivity to frequency variations. We observe that increasing the operating frequency of the radar reduces the antenna footprint.

f = [freq/2 3/4*freq freq 4/3*freq]'; % Operating frequencies (Hz) within C-band
lambdav = freq2wavelen(f);            % Wavelengths (m)
[rangeswathv,crngswathv] = aperture2swath(slantrng,lambdav,[del daz],grazang);
clf;

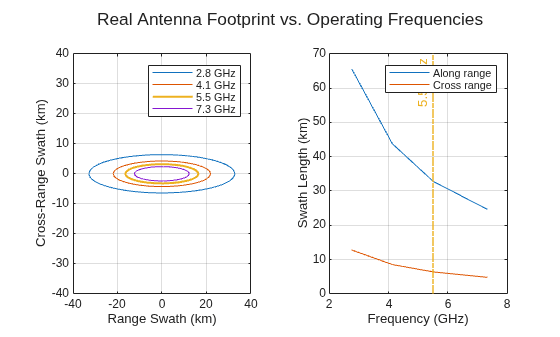

plotAntennaFootprintVsFreq(freq,f,rangeswathv,crngswathv);

Next, we fix the operating frequency back to 5.5 GHz and we analyze the antenna footprint sensitivity to grazing angle variations. We also plot the distance from the center of radar footprint to the satellite ground track (a.k.a. the ground range) as a function of look angles. As expected, the beam footprint and the beam center distance to nadir decrease when the grazing angle increases.

grazv = grazang_sph(8:8:end);             % Grazing angles (degrees)
depangv = depang_sph(8:8:end);
slantrngv = losrng(8:8:end);              % Slant range to the ground
rangeswathv = zeros(1,numel(grazv));
crngswathv = zeros(1,numel(grazv));

distgrndtrackv = Re*deg2rad(depangv-grazv);
for i=1:numel(grazv)
    [rangeswathv(i),crngswathv(i)] = aperture2swath(slantrngv(i),lambda,[del daz],grazv(i));
end
clf;

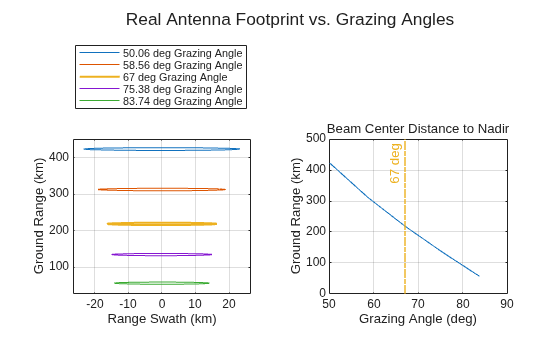

plotAntennaFootprintVsGrazAng(grazv,distgrndtrackv,rangeswathv,crngswathv,grazang);

Real Antenna Resolution

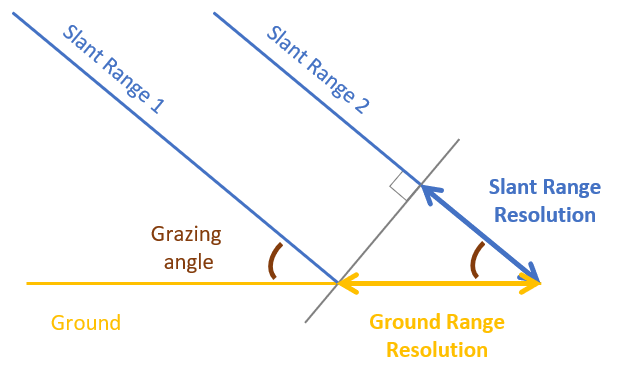

The ground range resolution is the distance below which two point targets cannot be separated in the final image. Use the bw2rangeres function to calculate the slant range resolution of the real antenna which is determined by the signal bandwidth.

slantrngres = bw2rangeres(bw)
slantrngres = 0.2998

Project the slant range resolution to the ground plane for a given grazing angle. The ground range resolution is always worse than the slant range resolution. The difference between the two increases as the grazing angle increases. Notice that the cross-range resolution is the same as the cross-range footprint since no signal processing is performed to enhance the resolution. This cross-range resolution is clearly insufficient.

rngres  = slant2grndrangeres(slantrngres,grazang);
disp(['Real antenna ground range resolution: ', num2str(round(rngres,2)), ' m'])
Real antenna ground range resolution: 0.77 m
crngres = crngswath;
disp(['Real antenna cross-range resolution: ', num2str(round(engunits(crngres),1)), ' km'])
Real antenna cross-range resolution: 6.4 km

Next, we analyze the ground range resolution sensitivity to variations of the grazing angle for a few signal bandwidths. The best range resolution is achieved with a high signal bandwidth and a low grazing angle. For a given bandwidth, the range resolution worsens as the grazing angle increases. At 500 MHz, the range resolution varies from 42 cm at a grazing angle of 45 degrees to 1.73 m at a grazing angle of 80 degrees.

bwv = [100e6 200e6 500e6 1e9]; % Signal bandwidths
rngresv = zeros(numel(grazang_sph),numel(bwv));
for j=1:numel(grazang_sph)
    slantrngresv = bw2rangeres(bwv);
    rngresv(j,:) = slant2grndrangeres(slantrngresv,grazang_sph(j));
end
clf;

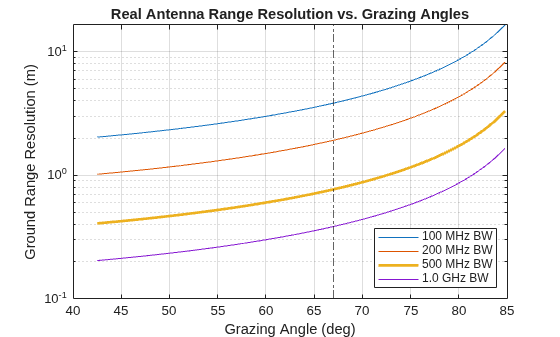

l = semilogy(grazang_sph,rngresv);
set(l(3),'LineWidth',2)
grid on
xline(grazang,'-.',{[num2str(round(grazang,2)),' deg']}); % Selected grazing angle
xlabel('Grazing Angle (deg)')
ylabel('Ground Range Resolution (m)')
title('Real Antenna Range Resolution vs. Grazing Angles')
legend('100 MHz BW', '200 MHz BW', '500 MHz BW', '1.0 GHz BW','Location','southeast')

Ideal vs Effective Resolution of the Synthetic Antenna

The section above covered the range and cross-range resolution of a real aperture radar, the next step is to use the sarlen and sarazres functions to calculate the synthetic aperture length and its cross-range (or azimuth) resolution. Notice that the range resolution which is dependent on the transmit signal bandwidth and the grazing angle remains same for a real aperture radar and a SAR.

idealSyntheticApertureLength = sarlen(slantrng,lambda,daz);             % Synthetic aperture length (m)
azResolution = sarazres(lambda,slantrng,idealSyntheticApertureLength);  % Cross-range (azimuth) resolution (m)
integrationTime = sarinttime(idealSyntheticApertureLength,v);           % Ideal integration time (sec)

Parameters = ["Synthetic Aperture Length";"Range Resolution";"Cross Range Resolution";"Integration Time"];
IdealSAR = [round(idealSyntheticApertureLength/1e3,1);rngres;round(azResolution,1);round(integrationTime*1e3,1)];
Units = ["km";"m";"m";"ms"];
idealSAR = table(Parameters,IdealSAR,Units)
idealSAR=4×3 table
            Parameters             IdealSAR    Units
    ___________________________    ________    _____

    "Synthetic Aperture Length"        6.4     "km"
    "Range Resolution"             0.76711     "m"
    "Cross Range Resolution"           2.6     "m"
    "Integration Time"              1095.9     "ms"

The best cross-range resolution we can hope for using SAR in this scenario is 2.6 m. That's a considerable improvement compared to the 6.4 km cross-range resolution of the real antenna. However, to achieve this performance, pulses need to be integrated for over 1.1 sec. The system we're analyzing specifies an integration time of only 800 ms. How does this effect the effective cross-range resolution of the radar?

effSyntheticApertureLength = sarlen(v,proctime);                         % Take processing time constraint into account
effAzResolution = sarazres(lambda,slantrng,effSyntheticApertureLength);  % Effective azimuth resolution (m)

RealAntenna = [NaN; rngres; round(crngres); NaN];
EffectiveSAR = [round(effSyntheticApertureLength/1e3,1);rngres;round(effAzResolution,1);round(proctime*1e3,1)];

sar = table(Parameters,RealAntenna,IdealSAR,EffectiveSAR,Units)
sar=4×5 table
            Parameters             RealAntenna    IdealSAR    EffectiveSAR    Units
    ___________________________    ___________    ________    ____________    _____

    "Synthetic Aperture Length"          NaN          6.4           5.6       "km"
    "Range Resolution"               0.76711      0.76711       0.76711       "m"
    "Cross Range Resolution"            6388          2.6             3       "m"
    "Integration Time"                   NaN       1095.9           800       "ms"

By integrating pulses for only 800 ms, the synthetic aperture length is reduced by 800 m compared to the ideal case and the cross-range resolution is reduced by 0.4 m to 3.0 m. Because data is processed in less than 1.11 sec, the radar can keep the target within the beam footprint for the length of the computation.

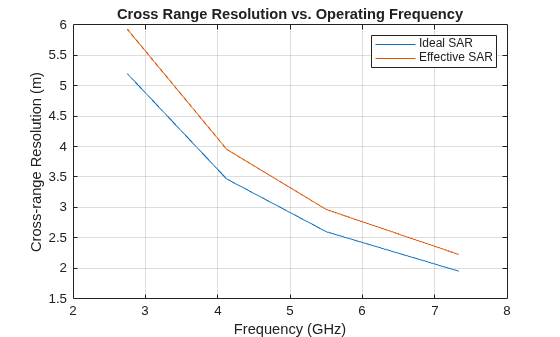

Next, we analyze the cross range resolution sensitivity to frequency variations. The cross-range resolution improves at higher frequencies.

azresv = sarazres(lambdav,slantrng,idealSyntheticApertureLength);
effazresv = sarazres(lambdav,slantrng,effSyntheticApertureLength);
plot([f f]/1e9,[azresv(:) effazresv(:)])
grid on
legend('Ideal SAR','Effective SAR')
xlabel('Frequency (GHz)')
ylabel('Cross-range Resolution (m)')
title('Cross Range Resolution vs. Operating Frequency')

Range and Cross-Range Ambiguities in SAR Images

Coverage (swath length) and resolution cannot be chosen independently as they both impose constraints on the pulse repetition frequency (PRF). If the PRF is set too low, the radar will suffer from grating lobes and Doppler (or cross-range) ambiguities. If the PRF is set too high, range measurements will be ambiguous. The grazing angle also affects the PRF selection as it impacts the antenna footprint as seen in a previous section.

Upper and Lower PRF Bounds

We use the sarprfbounds function to determine the minimum and maximum PRF values for various range coverages (footprint) and cross-range resolutions given the satellite velocity and the grazing angle.

desiredCRngRes = (0.5:0.2:5);     % m
desiredRngCov = (16e3:5e3:100e3); % m
[prfminv, prfmaxv] = sarprfbounds(v,desiredCRngRes,desiredRngCov,grazang);
clf

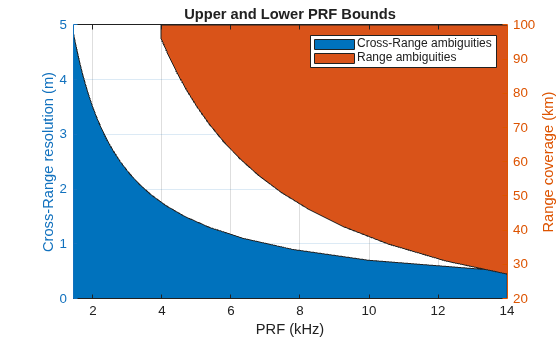

plotPRFbounds(prfminv,desiredCRngRes,prfmaxv,desiredRngCov);

PRF Selection to Avoid Ghost Images

The PRF is typically programmable and can be optimized for each mission. We use the sarprf function to calculate the PRF of the radar based on the satellite velocity and the real antenna dimension along azimuth. We specify a constant roll-off factor as a safety margin to prevent mainlobe returns from aliasing in the PRF interval.

prf = sarprf(v,daz,'RollOff',1.5)
prf = 4.0385e+03

The selected PRF is within the PRF bounds. The movement of the SAR platform within pulse repetition interval (PRI) is 1.73 m.

t = 1/prf;
distpri = sarlen(v,t) % Distance moved by satellite in one PRI
distpri = 1.7333

Grating Lobes Analysis

We can now model the synthetic array with phased.ula using the effective aperture length and the element spacing that we just calculated.

sarArray = phased.ULA('NumElements',ceil(effSyntheticApertureLength/distpri)+1,'ElementSpacing',distpri);
distpri/lambda
ans = 31.7998

Notice that the element spacing is over 31.8 x wavelength so the radar has grating lobes. We recall that the real antenna azimuth beamwidth is 0.6 degrees. We model the antenna response as a highly directional cosine pattern with the same beamwidth.

realAnt = phased.CosineAntennaElement('FrequencyRange',[freq-bw/2 freq+bw/2],'CosinePower',26e3);
realAntBeamwidth(1)
ans = 0.6006
b = beamwidth(realAnt,freq)
b = 0.6000

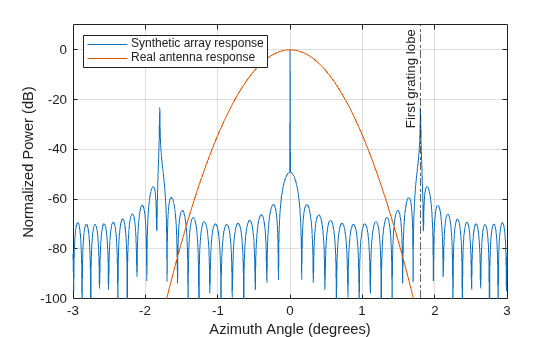

We plot the pattern response of both the synthetic array and the real antenna to verify that the first grating lobe of the array is located in the null of the real antenna pattern so the radar doesn't suffer negative impact from the grating lobes.

clf
plotResponse(sarArray,freq,physconst('LightSpeed'),'RespCut','Az','AzimuthAngles',(-3:0.005:3));
hold on
plotResponse(realAnt,freq,'RespCut','Az','AzimuthAngles',(-3:0.005:3));
hold off
legend('Synthetic array response','Real antenna response','Location','northwest')
title('')
% Annotations
xl = xline(1.8,'-.',{'First grating lobe'});
xl.LabelVerticalAlignment = 'top';
xl.LabelHorizontalAlignment = 'left';

SAR Image SNR and Noise Equivalent Reflectivity

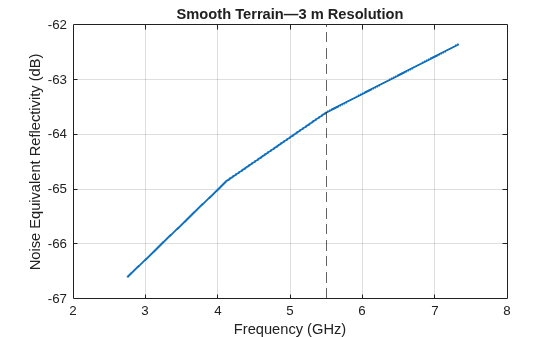

The next section examines different factors used in the SAR equation to calculate the image SNR. We first analyze the target (or surface) radar cross section (RCS) and the rain (or volume clutter) RCS.

Surface Roughness vs Frequency, Polarization and Grazing Angle

We use the landreflectivity function to calculate the reflectivity a.k.a. the normalized radar cross section (NRCS) for a given grazing angle and operating frequency. The target RCS in the ground image plane is calculated using the sarSurfaceRCS and taking the radar resolution into account. In general, the brightness of a SAR image area corresponds to the roughness of the surface so mountains will appear brighter than flatland due to their higher RCS. Roughness is measured against wavelength so a surface may appear rough at one frequency and smooth at another. Also notice that the RCS increases as the grazing angle increases.

fsub = [2.5e9 5.5e9 7.5e9];   % Hz
grazv = 10:5:85;              % degrees
landtype = ["Mountains","Flatland"];
tgtrcsv = zeros(numel(grazv),numel(fsub),numel(landtype));
for k=1:numel(landtype)       % Land types with different roughness
    for j=1:numel(fsub)       % Frequencies
        for u =1:numel(grazv) % Grazing angles
            nrcsv = landreflectivity(landtype(k),grazv(u),fsub(j));
            tgtrcsv(u,j,k) = sarSurfaceRCS(nrcsv,[slantrngres effAzResolution],grazv(u));
        end
    end
end

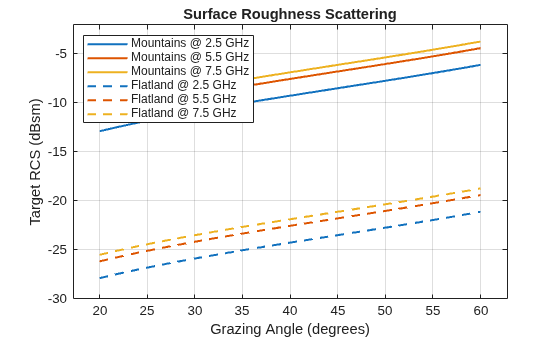

plotTargetRCSvsGrazAng(grazv,tgtrcsv,landtype,fsub)

RCS also depends on the polarization of the radar. We use the seareflectivity function to analyze the polarization effect on the sea surface reflectivity for different sea surface roughness (i.e. sea states). Note that there is much more variation in the sea RCS at low grazing angles and that the RCS for horizontally polarized signals is lower than vertically polarized signals for the same sea state for grazing angles below 60 degrees. The figure below also shows that the difference between polarizations decreases as the grazing angle increases from 10 to 60 degrees.

pol = ["H","V"];
seaStates = [1 3 5];
grazvpol = linspace(0.1,70,100); % Grazing angle (deg)
tgtrcsv = zeros(numel(grazvpol),numel(pol),numel(seaStates));
for n=1:numel(seaStates)         % Sea states
    for j=1:numel(pol)           % Polarizations
        for u =1:numel(grazvpol) % Grazing angles
            nrcsv = seareflectivity(seaStates(n),grazvpol(u),freq,'Polarization',pol(j)); % Calculate normalized RCS
            tgtrcsv(u,j,n) = sarSurfaceRCS(nrcsv,[slantrngres effAzResolution],grazvpol(u));
        end
    end
end

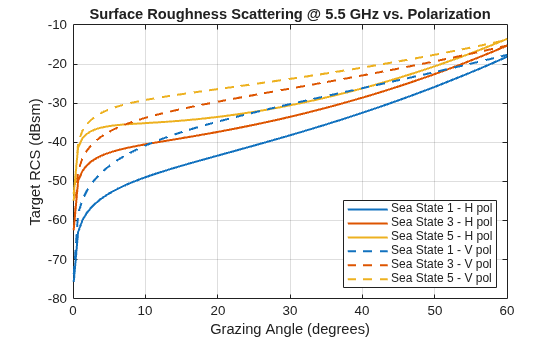

plotTargetRCSvsPol(grazvpol,tgtrcsv,seaStates,pol,freq)

Rain Reflectivity and Signal-to-Clutter Ratio (SCR)

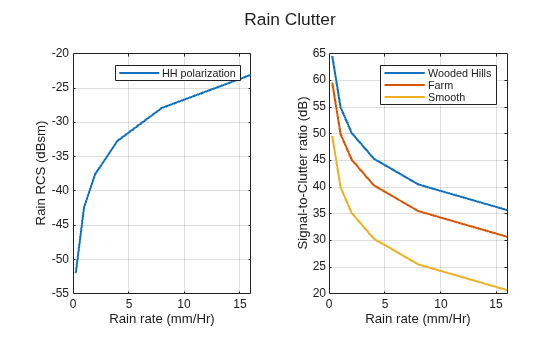

Competing echoes from undesired sources such as rain can cause degradation in SAR images. Rain falling in the vicinity of a target scene will clutter the image of that scene. We use the rainreflectivity function to analyze rain reflectivity under varying rain rates and polarizations. We observe that the rain reflectivity is higher for linear polarizations than circular polarization and that it increases with the rain rate.

rainRate = [0.25 1 2 4 8 16];
pol = ["HH","HV","RCPRCP"];
rainrefl = zeros(numel(rainRate),numel(pol));
for i=1:numel(pol)
    rainrefl(:,i) = rainreflectivity(freq,rainRate,pol(i));  % 5.5 GHz operating frequency
end

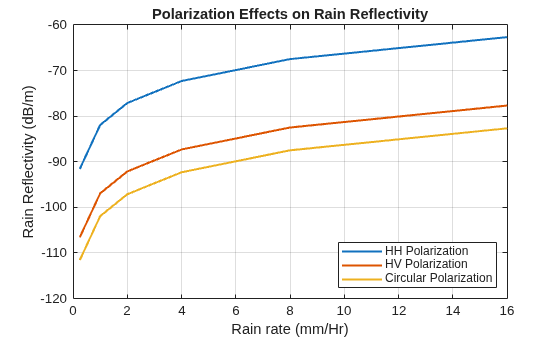

plot(rainRate,pow2db(rainrefl),'LineWidth',1.5)
grid on
xlabel('Rain rate (mm/Hr)')
ylabel('Rain Reflectivity (dB/m)')
title('Polarization Effects on Rain Reflectivity')
legend('HH Polarization','HV Polarization','Circular Polarization','Location','southeast');

Next, we use the clutterVolumeRCS and rainscr functions to calculate the rain RCS which is defined by the radar 3D resolution cell (slant range, azimuth and elevation resolution), and the ratio of the signal energy from a resolution cell of the target scene to the energy from the rain returns processed into the same resolution cell of the target scene (or rain SCR). We verify that the signal-to-clutter ratio remains above 20 dB for all rain rates and for all targets including the ones with a weak RCS such as smooth land. Therefore, we don't expect rain to be a limiting factor for this radar in this configuration.

elbeamw = realAntBeamwidth(2);                             % Radar elevation beamwidth
maxRainHeight = 4000;                                      % m
rhoe = rainelres(slantrng,elbeamw,grazang,maxRainHeight);  % Elevation resolution
res = [slantrngres effAzResolution rhoe];
rrcs = clutterVolumeRCS(rainrefl(:,1),res);                % Rain RCS for HH polarization

landType = ["Wooded Hills","Farm","Smooth"];
scr = zeros(numel(rainRate),numel(landType));
tgtrcs = zeros(numel(landType),1);
for j=1:numel(landType)
    nrcsv(j) = landreflectivity(landType(j),grazang,freq); % Calculate normalized RCS of smooth land with no vegetation
    tgtrcs(j) = sarSurfaceRCS(nrcsv(j),[slantrngres effAzResolution],grazang);
    scr(:,j) = rainscr(lambda,rrcs,tgtrcs(j),proctime)';   % Signal to rain clutter ratio
end

plotRainSCR(rainRate,rrcs,scr,landType)

SAR Equation

We estimate the signal-to-noise ratio (SNR) available at the radar receiver using the SNR form of the radar equation. First, we model and estimate the different sources of gain and loss for the radar system and its environment.

Processing Gains

We use the matchinggain function to calculate the range processing gain due to the noise bandwidth reduction after the matched filter.

d = 0.1;                       % 10 percent duty cycle
pw = (1/prf)*d;                % Effective pulse width (sec)
rnggain = matchinggain(pw,bw)  % Range processing gain (dB)
rnggain = 40.9275

We use the sarazgain function to calculate the azimuth processing gain due to the coherent integration of pulses.

azgain = sarazgain(slantrng,lambda,v,effAzResolution,prf) % Az processing gain (dB)
azgain = 35.0931

Losses and Noise Factor

We use the noisefigure function to estimate the noise figure of the cascaded receiver stages. We assume 7 stages with the following values:

  • Stage 1 LNA: Noise Figure = 1.0 dB, Gain = 15.0

  • Stage 2 RF Filter: Noise Figure = 0.5 dB, Gain = -0.5

  • Stage 3 Mixer: Noise Figure = 5.0 dB, Gain = -7.0

  • Stage 4 IF Filter: Noise Figure = 1.0 dB, Gain = -1.0

  • Stage 5 IF Preamplifier: Noise Figure = 0.6 dB, Gain = 15.0

  • Stage 6 IF Stages: Noise Figure = 1.0 dB, Gain = 20.0

  • Stage 7 Phase Detectors: Noise Figure = 6.0 dB, Gain = -5.0

nf  = [1.0, 0.5, 5.0, 1.0, 0.6, 1.0, 6.0];        % dB
g   = [15.0, -0.5, -7.0, -1.0, 15.0, 20.0, -5.0]; % dB
cnf = noisefigure(nf, g)
cnf = 1.5252

We use the radarpropfactor function to calculate the one-way radar propagation factor over smooth land.

[hgtsd, beta0, vegType] = landroughness('Smooth');
tgtheight = hgtsd;
Re = effearthradius(slantrng,h,tgtheight);
propf = radarpropfactor(slantrng,freq,h,tgtheight,'EffectiveEarthradius',Re,'TiltAngle',grazang,'ElevationBeamwidth',elbeamw,...
    'SurfaceHeightStandardDeviation',hgtsd,'SurfaceSlope',beta0,'VegetationType',vegType)
propf = -5.3980e-05

We use the tropopl function to calculate losses due to atmospheric gaseous absorption.

atmoLoss = tropopl(slantrng,freq,tgtheight,grazang)
atmoLoss = 0.0439

We use the rainpl function to calculate losses due to rain according to the ITU model. Alternatively, one can use the cranerainpl function to make calculations according to the Crane model instead.

rainLoss = rainpl(slantrng,freq,rainRate(end),grazang)
rainLoss = 0.5389

We use the radareqsarsnr function to calculate the image SNR with the SAR radar equation. We assume a 5 kW peak power. Additional losses and factors including the azimuth beam shape loss, window loss, transmission loss and receive line loss can be specified. We estimate the beam shape loss with the beamloss function and we use 5 dB for all other fixed losses combined. For this analysis, we use the (weakest) "Smooth" land target. A minimum image SNR of 10 dB is usually regarded as sufficient to provided good image quality so at 35.9 dB for this target our system has ample margins.

Lb = beamloss;
customLoss = 5;        % dB
Pt = 5e3;              % Peak power (W)
sntemp = systemp(cnf); % Noise Temperature
imgsnr = radareqsarsnr(slantrng,lambda,Pt,pw,rnggain,azgain,'Gain',antGain,'RCS',tgtrcs(3),...
    'AtmosphericLoss',atmoLoss,'Loss',cnf+rainLoss,'PropagationFactor',propf,...
    'Ts',sntemp,'CustomFactor',-Lb-customLoss)
imgsnr = 35.9554

Noise Equivalent Reflectivity (NER or NEZ0)

Finally, we use the sarnoiserefl function to calculate the NER of the radar and we analyze how its sensitivity to frequency variations. The NER is the smallest distributed clutter that can be seen in the presence of receiver noise for a given surface reflectivity. It is a measure of the sensitivity of the radar to spatially distributed noise. For the smooth terrain we used in this calculation, the NER is -62.6 dB at 5.5.GHz and it is increasing with frequency.

neq = sarnoiserefl(f,freq,imgsnr,nrcsv(3));
clf;
plot(f/1e9,neq,'LineWidth',1.5)
grid on
xline(5.5,'--')
xlabel('Frequency (GHz)')
ylabel('Noise Equivalent Reflectivity (dB)')
title(['Smooth Terrain - ', num2str(round(effAzResolution,1)), ' m Resolution'])

Summary

This example demonstrated how to estimate performance parameters such as coverage, resolution and SNR for a spaceborne SAR system. We determined the upper and lower PRF bounds to avoid ghost images. We analyzed target and rain clutter RCS for different polarizations and grazing angles. We then estimated processing gains and losses in the radar and its environment. Finally, we used the SAR equation to calculate the image SNR and the noise equivalent reflectivity (NER).

References

  1. Doerry, Armin Walter. “Performance Limits for Synthetic Aperture Radar.” Sandia National Laboratories, February 1, 2006.

  2. O’Donnell, Robert. “Radar Systems Engineering .” IEEE Aerospace & Electronic Systems Society, and IEEE New Hampshire Section, 2013.

Supporting Functions

slant2grndrangeres

function grndres = slant2grndrangeres(slres, grazang)
% slant2grndrangeres Convert slant range resolution to ground range resolution
grndres = slres./cosd(grazang);
end

plotAntennaFootprintVsFreq

function t = plotAntennaFootprintVsFreq(freq,f,rangeswathv,crngswathv)
t = tiledlayout(1,2);
nexttile
% Plot cross-range vs. range
theta_grid = linspace(0,2*pi)';
semix = 0.5*rangeswathv/1e3; % km
semiy = 0.5*crngswathv/1e3;  % km
l = plot(cos(theta_grid)*semix,sin(theta_grid)*semiy);
set(l(3),'LineWidth',1.5)
ylim(xlim)
grid on
xlabel('Range Swath (km)')
ylabel('Cross-Range Swath (km)')
legend([num2str(round(f(1)/1e9,1)) ' GHz'],[num2str(round(f(2)/1e9,1)) ' GHz'], ...
    [num2str(round(f(3)/1e9,1)) ' GHz'],[num2str(round(f(4)/1e9,1)) ' GHz'])

nexttile
% Plot Swath length vs. operating frequencies
plot([f f]/1e9,[rangeswathv(:) crngswathv(:)]/1e3)
xl = xline(freq/1e9,'-.',{[num2str(freq/1e9),' GHz']},'Color',l(3).Color); % Annotation
xl.LabelVerticalAlignment = 'top';
xl.LabelHorizontalAlignment = 'left';
xl.LineWidth = 1.5;
grid on
xlabel('Frequency (GHz)')
ylabel('Swath Length (km)')
legend('Along range','Cross range')

title(t,'Real Antenna Footprint vs. Operating Frequencies')
end

plotAntennaFootprintVsGrazAng

function t = plotAntennaFootprintVsGrazAng(grazv,distgrndtrackv,rangeswathv,crngswathv,grazang)

t = tiledlayout(1,2);
nexttile
% Plot footprint and beam center distance to ground track
theta_grid = linspace(0,2*pi)';
semix = 0.5*rangeswathv/1e3; % km
semiy = 0.5*crngswathv/1e3;  % km
l = plot(cos(theta_grid)*semix,1e-3*distgrndtrackv(:)'+sin(theta_grid)*semiy);
set(l(3),'LineWidth',1.5)
grid on
xlabel('Range Swath (km)')
ylabel('Ground Range (km)')

legend([num2str(round(grazv(1),2)) ' deg Grazing Angle'], ...
    [num2str(round(grazv(2),2)) ' deg Grazing Angle'], ...
    [num2str(round(grazv(3),2)) ' deg Grazing Angle'], ...
    [num2str(round(grazv(4),2)) ' deg Grazing Angle'], ...
    [num2str(round(grazv(5),2)) ' deg Grazing Angle'], ...
    'Location', "northoutside")
axis padded

nexttile
% Plot beam center distance to ground track vs. grazing angles
plot(grazv,distgrndtrackv/1e3)
xl = xline(grazang,'-.',{[num2str(round(grazang,2)),' deg']},'Color',l(3).Color); % Annotation
xl.LabelVerticalAlignment = 'top';
xl.LabelHorizontalAlignment = 'left';
xl.LineWidth = 1.5;
grid on
xlabel('Grazing Angle (deg)')
ylabel('Ground Range (km)')
subtitle('Beam Center Distance to Nadir')

title(t,'Real Antenna Footprint vs. Grazing Angles')
end

plotPRFbounds

function plotPRFbounds(prfminv,desiredCRngRes,prfmaxv,desiredRngCov)
yyaxis left
fill([prfminv(1)/1e3;prfminv(:)/1e3;prfminv(end)/1e3],[0;desiredCRngRes(:);0],[0 0.4470 0.7410])
grid on
xlabel('PRF (kHz)')
ylabel('Cross-Range resolution (m)')
yyaxis right
fill([prfmaxv(1)/1e3;prfmaxv(:)/1e3;prfmaxv(end)/1e3],[100;desiredRngCov(:)/1e3;100],[0.8500 0.3250 0.0980])
xlim([prfminv(end)/1e3 prfminv(1)/1e3])
ylabel('Range coverage (km)')
legend('Cross-Range ambiguities','Range ambiguities')
title('Upper and Lower PRF Bounds')
end

plotTargetRCSvsGrazAng

function plotTargetRCSvsGrazAng(grazv,tgtrcsv,landtype,fsub)
plot(grazv,pow2db(tgtrcsv(:,:,1)),'LineWidth',1.5)
set(gca,'ColorOrderIndex',1)
hold on
plot(grazv,pow2db(tgtrcsv(:,:,2)),'--','LineWidth',1.5)
hold off
grid on
axis padded
xlabel('Grazing Angle (degrees)')
ylabel('Target RCS (dBsm)')
title('Surface Roughness Scattering')
legend([char(landtype(1)) ' @ ' num2str(round(fsub(1)/1e9,1)) ' GHz'],...
    [char(landtype(1)) ' @ ' num2str(round(fsub(2)/1e9,1)) ' GHz'],[char(landtype(1)) ' @ ' num2str(round(fsub(3)/1e9,1)) ' GHz'],...
    [char(landtype(2)) ' @ ' num2str(round(fsub(1)/1e9,1)) ' GHz'],[char(landtype(2)) ' @ ' num2str(round(fsub(2)/1e9,1)) ' GHz'],...
    [char(landtype(2)) ' @ ' num2str(round(fsub(3)/1e9,1)) ' GHz'],'Location','northwest')
end

plotTargetRCSvsPol

function plotTargetRCSvsPol(grazvpol,tgtrcsv,seaStates,pol,freq)
plot(grazvpol,pow2db(squeeze(tgtrcsv(:,1,:))),'LineWidth',1.5)
set(gca,'ColorOrderIndex',1)
hold on
plot(grazvpol,pow2db(squeeze(tgtrcsv(:,2,:))),'--','LineWidth',1.5)
hold off
grid on
xlabel('Grazing Angle (degrees)')
ylabel('Target RCS (dBsm)')
title(['Surface Roughness Scattering @ ' num2str(round(freq/1e9,1)) ' GHz vs. Polarization'])
legend(['Sea State ' num2str(seaStates(1)) ' - ' char(pol(1)) ' pol'],...
    ['Sea State ' num2str(seaStates(2)) ' - ' char(pol(1)) ' pol'],...
    ['Sea State ' num2str(seaStates(3)) ' - ' char(pol(1)) ' pol'],...
    ['Sea State ' num2str(seaStates(1)) ' - ' char(pol(2)) ' pol'],...
    ['Sea State ' num2str(seaStates(2)) ' - ' char(pol(2)) ' pol'],...
    ['Sea State ' num2str(seaStates(3)) ' - ' char(pol(2)) ' pol'],'Location','southeast')
end

plotRainSCR

function plotRainSCR(rainRate,rrcs,scr,landType)
t = tiledlayout(1,2);
nexttile
% Plot rain RCS vs rain rate
plot(rainRate,pow2db(rrcs),'LineWidth',1.5)
grid on
xlabel('Rain rate (mm/Hr)')
ylabel('Rain RCS (dBsm)')
legend('HH polarization')

nexttile
% Plot signal-to-clutter ratio (SCR) vs. rain rate
plot(rainRate,scr,'LineWidth',1.5)
grid on
xlabel('Rain rate (mm/Hr)')
ylabel('Signal-to-Clutter ratio (dB)')
legend(landType(1),landType(2),landType(3))
title(t, 'Rain Clutter')
end
