Radar Target Emulator with HDL Coder

Since R2025a

This example uses:

This example demonstrates an HDL compatible radar target emulator. This model can be deployed onto a field-programmable-gate-array (FPGA) to emulate radar target returns in real time for hardware-in-the-loop (HIL) testing.

Introduction

The model demonstrated in this example emulates a few dominant behavioral characteristics of a radar point target:

Delay due to target range.
Doppler shift due to target radial velocity.
Signal attenuation due to factors such as target range and radar cross section (RCS).

You can update this simple model to include additional effects to test real radar systems. For example, you could modify the signal attenuation to contain information about the two-way antenna pattern that is used by the radar system.

This emulator is intented to be deployed on an FPGA that receives I/Q samples that are captured by an analog-to-digital converter (ADC) at the input. The emulator transforms incoming samples according to target characteristics. These transformed samples would then be re-transmitted through a digital-to-analog converter (DAC) at the output of the FPGA, thereby emulating a simple radar channel.

See Radar Target Emulation on NI USRP Radio (Wireless Testbench) for an example on deploying this model to a real FPGA.

Target Emulator Model

In this section we briefly introduce the components of the target emulator. In addition to the model described in this section, there is an associated helper function called helperSimulationSetup that sets up all of the required parameters for the simulation.

The model in this example is segrated into four key sections:

Radio Receive - This subsystem simulates the received samples. When deployed, this subsystem would be replaced with samples captured by the ADC.
MATLAB - This section converts the target characteristics set in MATLAB into the correct register format required by the target emulator.
Radio Transmit - This section just contains the output samples for the model. When deployed, this section would be updated to write the output samples to the DAC.
Target Emulator - This subsystem modifies the input samples according to the target characteristics. This is the subsystem that would be deployed onto your FPGA.

open_system('slexRADARTargetEmulator');

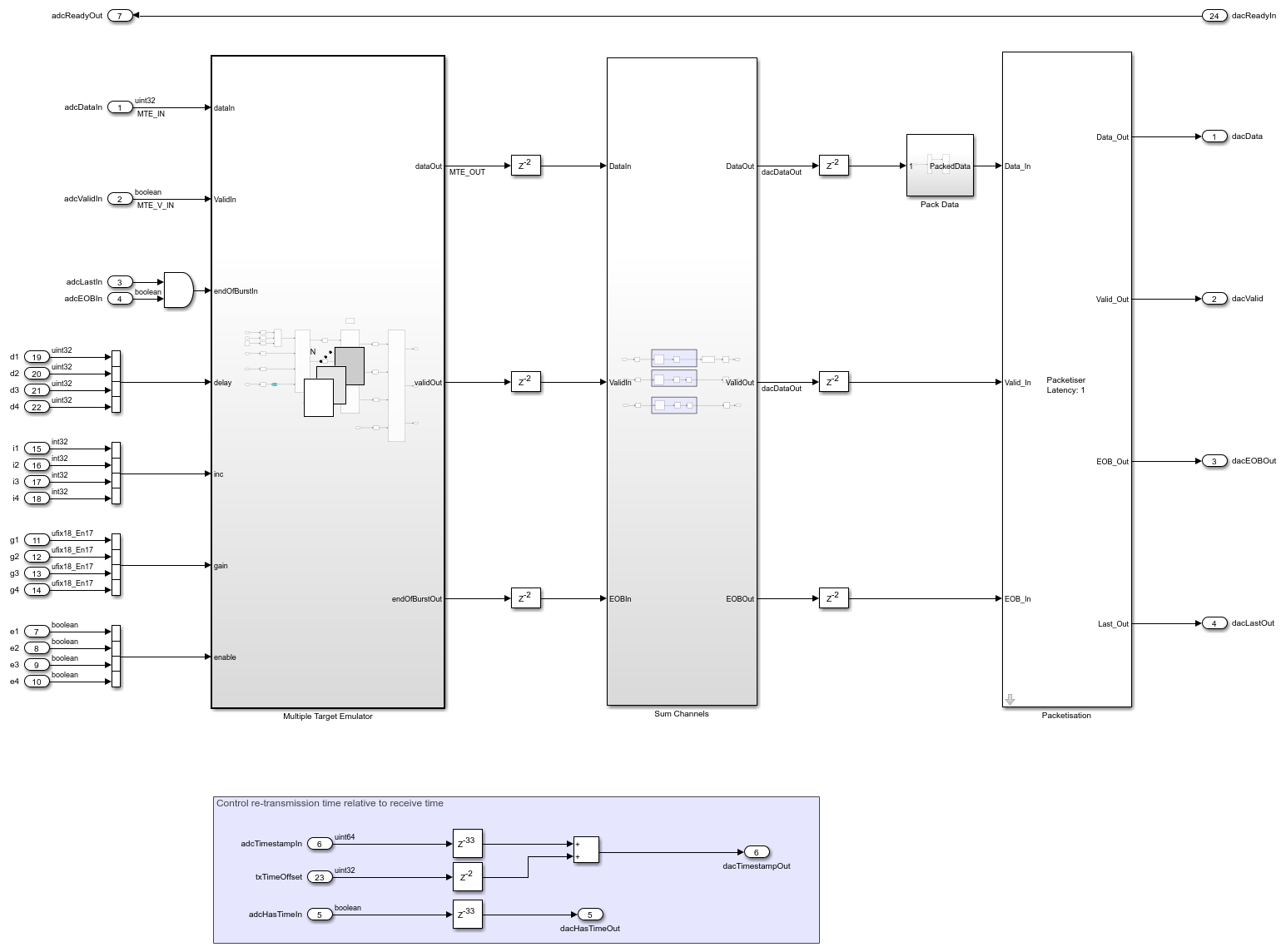

The Target Emulator subsystem performs the key operations on the collected input samples to emulate real targets. As configured, this subsystem allows the simulation of four separate radar targets.

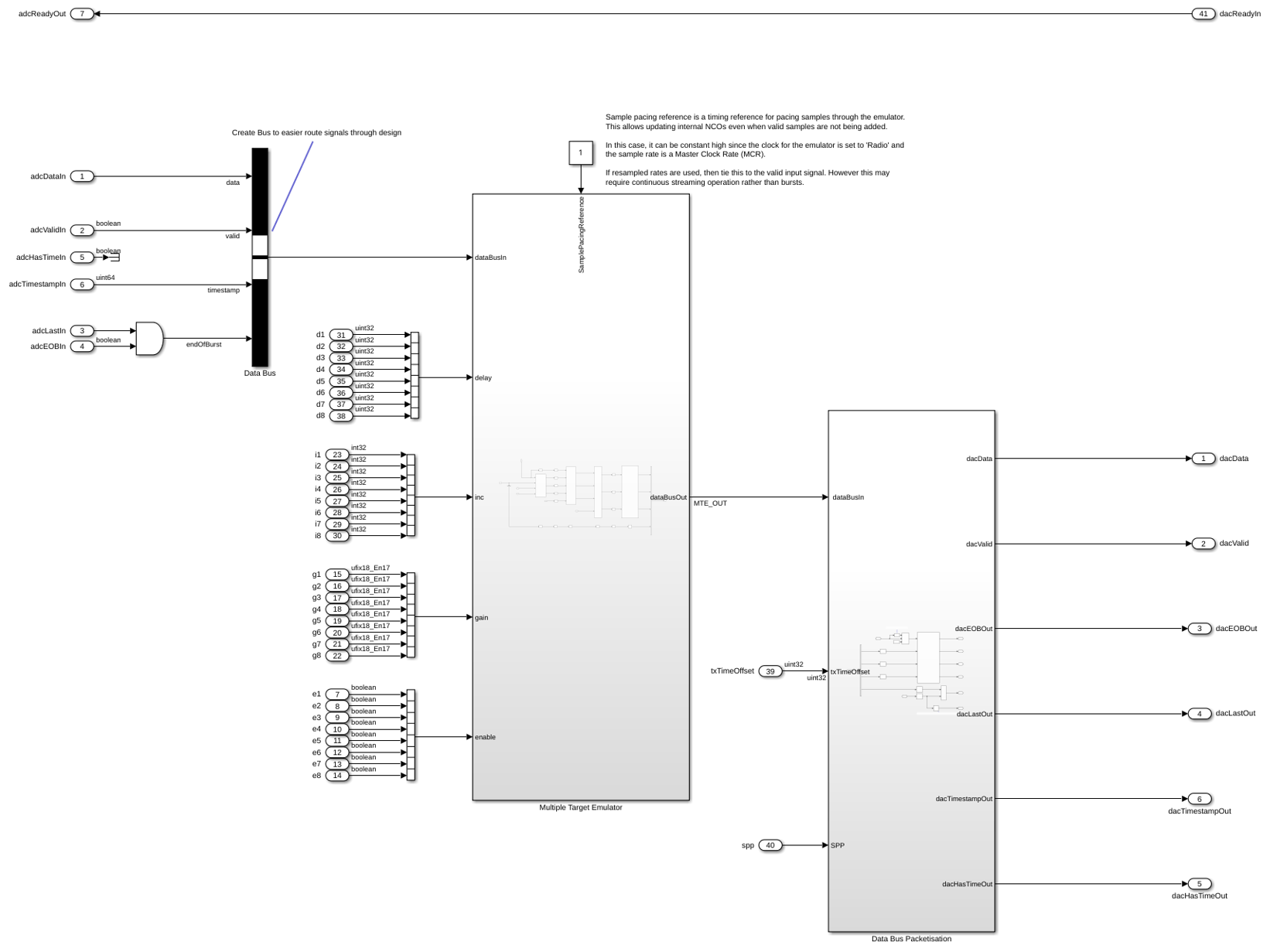

open_system('slexRADARTargetEmulator/Target Emulator');

There are three blocks within the Target Emulator subsystem:

Multiple Target Emulator - This is the key subsystem that modifies the incoming samples for each emulated target that is enabled.
Sum Channels - This subsystem sums the output of the multiple target emulator to combine the effects of each of the four targets.
Packetization - This block creates packets for writing to the DAC.

The Multiple Target Emulator has three subsytems:

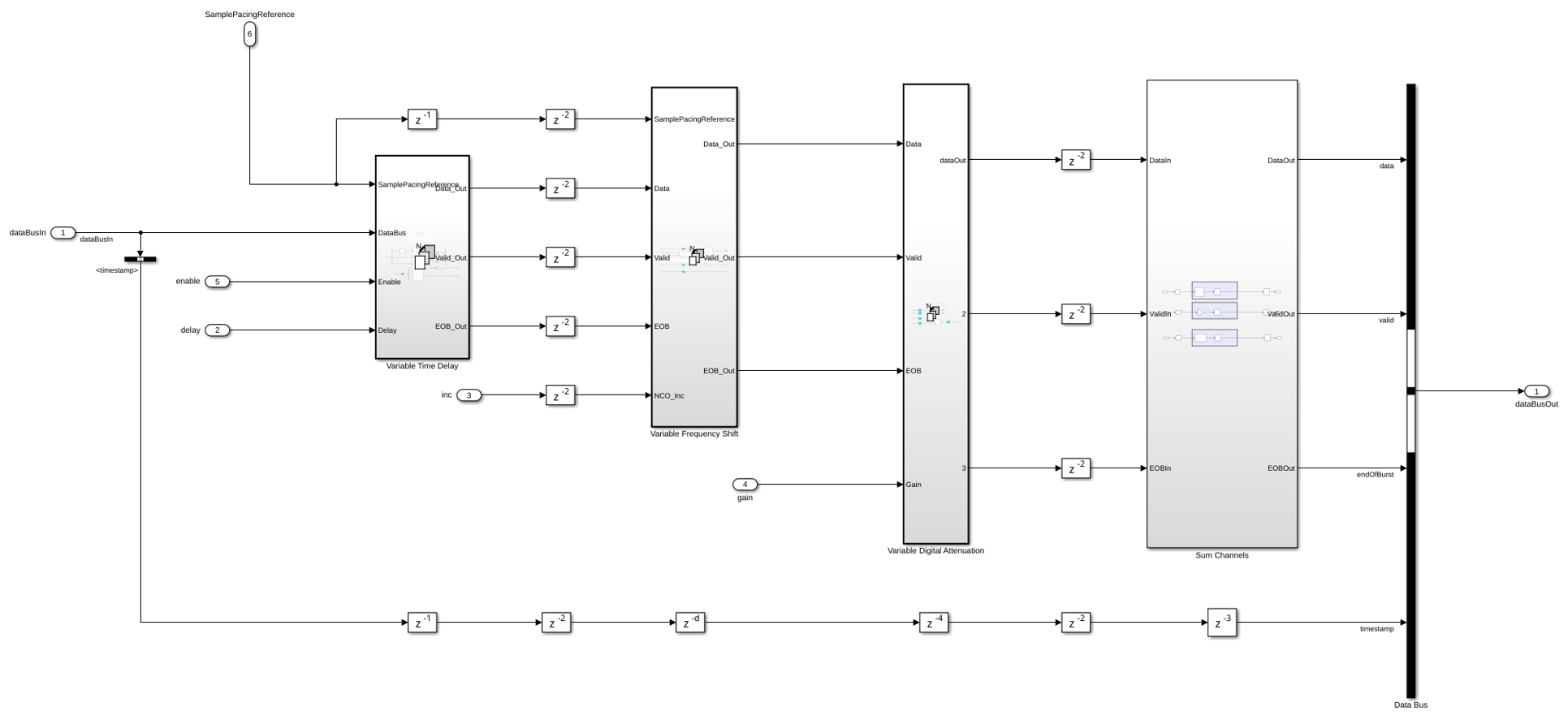

open_system('slexRADARTargetEmulator/Target Emulator/Multiple Target Emulator');

These three subsystems each perform one of the key signal transformations:

Variable Time Delay - This subsystem delays the input sample to simulate propagation delay based on the target range.
Variable Frequency Shift - This subsystem applies a frequency shift to the samples to simulate Doppler shift based on the target radial velocity with respect to the radar.
Variable Digital Attenuation - This subsystem attenuates the input sample to simulate signal power loss due to the propagation channel and target RCS. Other effects such as antenna pattern could also be wrapped into this attenuation values.

Simulation Using Target Emulator

Now that we have investigated the layout of the key components within the target emulator, run the target emulator in Simulink. The registers that define the target characeristics are driven from a MATLAB model. The MATLAB model uses multiple Platform within a radarScenario to advance four radar targets through a simple simulation. Run this simulation updating the target registers as the radarScenario is stepped forward in time. Visualize the range-Doppler response of the emulated scenario at each step. This represents an approach that you could use to control the registers on the target emulator once deployed onto a real FPGA.

The following block of code sets up a radarScenario with four targets. The targets are assumed to be airplanes based on the operating ranges and RCS. Each target is placed at different starting ranges. One target is moving directly towards the radar, one target is moving directly away from the radar, one target is moving diagonally away from the radar, and one target is flying in a circle around the radar.

% Create scenario with an update rate of 10 s so that we can visualize
% target motion. Run for 2 simulation frames to demonstrate target motion.
% When deploying to an actual FPGA you may want to set the update rate to
% be the same as the length of a coherent processing interval.
nSteps = 1;
tUpdate = 10;
tRun = nSteps*tUpdate;
scenario = radarScenario(UpdateRate=1/tUpdate,StopTime=tRun);

% The radar is located at the origin
radarPosition = [0 0 0];

% Use the same RCS for each of the targets, assumed to be airplanes.
load('RCSSignatureExampleData.mat','boeing737');
planeRcsSignature = rcsSignature(Pattern=boeing737.RCSdBsm,Azimuth=boeing737.Azimuth,Elevation=[-90 90]);

% Target 1 is located at 5 km ground range, 2 km height, moving away from
% the radar at 200 m/s
t1Pos = [5e3 0 2e3];
t1Vel = [200 0 0];
t1 = platform(scenario);
t1.Signatures = {planeRcsSignature};
t1.Trajectory = kinematicTrajectory(Position=t1Pos,Velocity=t1Vel);

% Target 2 is located at 7.5 km ground range, 1 km height, moving towards
% the radar at 150 m/s
t2Pos = [7.5e3 0 1e3];
t2Vel = [-150 0 0];
t2 = platform(scenario);
t2.Signatures = {planeRcsSignature};
t2.Trajectory = kinematicTrajectory(Position=t2Pos,Velocity=t2Vel);

% Target 3 is located at a diaganol (7.5 km in x, 3 km in y), 2.5 km
% height, flying in a straight line so that radial velocity changes
% constantly
t3Pos = [7.5e3 3e3 2.5e3];
t3Vel = [0 -250 0];
t3 = platform(scenario);
t3.Signatures = {planeRcsSignature};
t3.Trajectory = kinematicTrajectory(Position=t3Pos,Velocity=t3Vel);

% Target 4 is flying in a circle around the radar at 4 km, so that it's
% radial speed is always 0.
t4Dist = 4e3;
t4 = platform(scenario);
t4.Signatures = {planeRcsSignature};
t4.Trajectory = helperRadarTargetCircularWaypoints(t4Dist,radarPosition,tRun);

% Run the target simulator setup helper function to get parameters
sl_in = helperRadarTargetSimulationSetup();

% Set max gain to a target at 3 km
maxGain = helperRadarTargetMaxGain(3e3,max(planeRcsSignature.Pattern),sl_in.lambda);

% Create a figure for plotting
f = tiledlayout("horizontal");

% Create a range-Doppler response object for processing data
rdResponse = phased.RangeDopplerResponse(...
    'DopplerFFTLengthSource','Property', ...
    'DopplerFFTLength',sl_in.VelDimLen, ...
    'PRFSource','Property', 'PRF',sl_in.PRF,...
    'SampleRate',sl_in.Fs,'DopplerOutput','Speed', ...
    'OperatingFrequency',sl_in.Fc);

% Create a 2D CFAR object for detection generation
cfar = phased.CFARDetector2D(GuardBandSize=[25 1],TrainingBandSize=[10 1],...
    ProbabilityFalseAlarm=1e-4);

cStep = 1;
while advance(scenario)
    % Get the RCS, range, and radial speed for each target
    [targetEnabled,targetRCS,targetRange,targetSpeed] = helperRadarTargetInformation(radarPosition,sl_in.Fc,t1,t2,t3,t4);

    % Call the simulation setup function to adjust target parameters
    sl_in = helperRadarTargetSimulationSetup(targetEnabled,targetRCS,targetRange,targetSpeed,maxGain);

    % Run the simulation
    out = sim('slexRADARTargetEmulator');

    % Visualize the output including the Range-Doppler response,
    % detections, and actual target locations
    ax = nexttile(f);
    helperVisualizeRadarTargetSimulation(out,sl_in,rdResponse,cfar,cStep,ax);
    cStep = cStep + 1;
end

### Searching for referenced models in model 'slexRADARTargetEmulator'.
### Total of 1 models to build.
### Building the rapid accelerator target for model: slexRADARTargetEmulator
### Successfully built the rapid accelerator target for model: slexRADARTargetEmulator
### Searching for referenced models in model 'slexRADARTargetEmulator'.
### Total of 1 models to build.

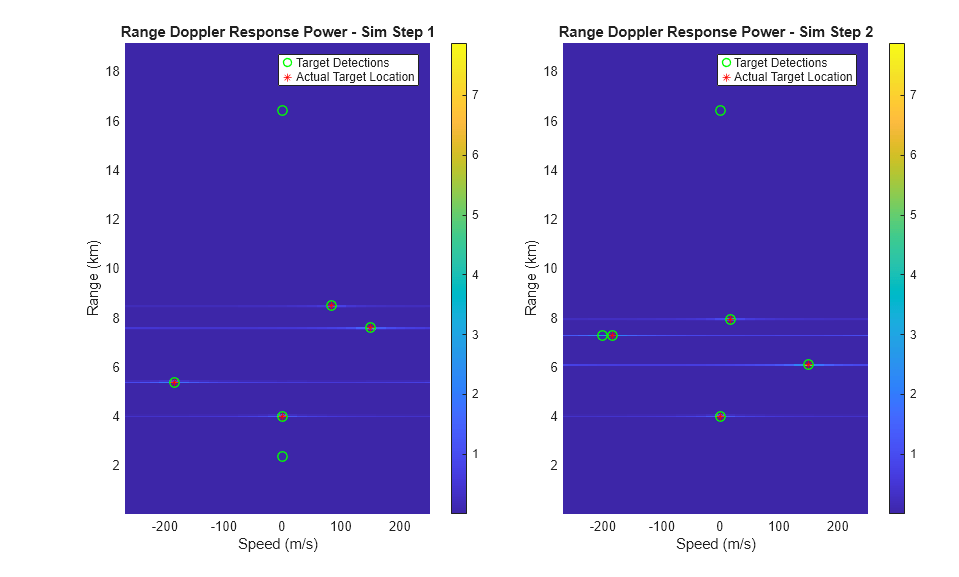

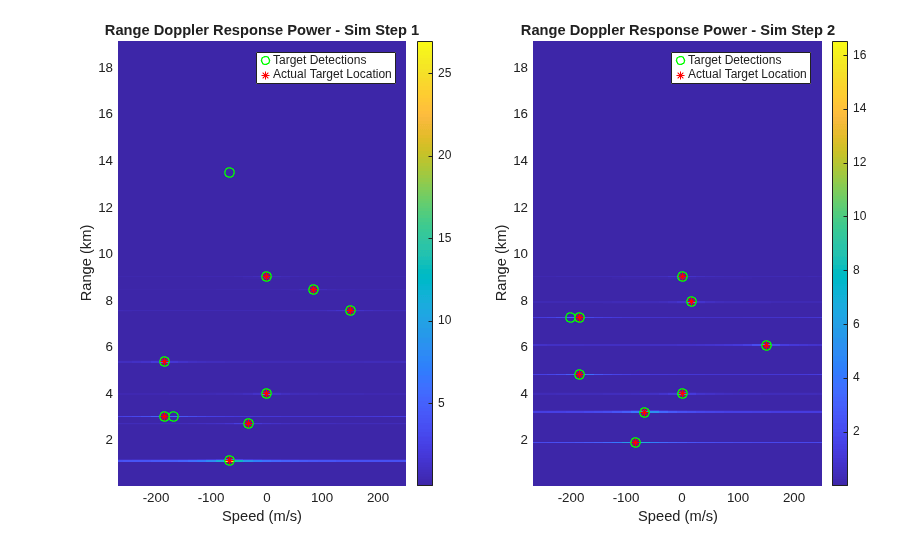

The target returns are apparent in the range-Doppler response at each time step. Using a constant false alarm rate (CFAR) detector, there is a detection at each true target location. The false alarms in the range-Doppler sidelobes could potentially be mitigated with additional tuning of the CFAR detector.

Conclusion

This example demonstrates an HDL compatible radar target emulator. Target detections are calculated using the target emulator for a simulated radar scenario with 4 targets. This model can be deployed to an FPGA for real-time radar channel emulation.
