Modal Superposition Method for Structural Dynamics Problem

This example shows how to solve a structural dynamics problem by using modal analysis results. Solve for the transient response at the center of a 3-D beam under a harmonic load on one of its corners. Compare the direct integration results with the results obtained by modal superposition.

Modal Analysis

Create a modal analysis model for a 3-D problem.

modelM = createpde('structural','modal-solid');

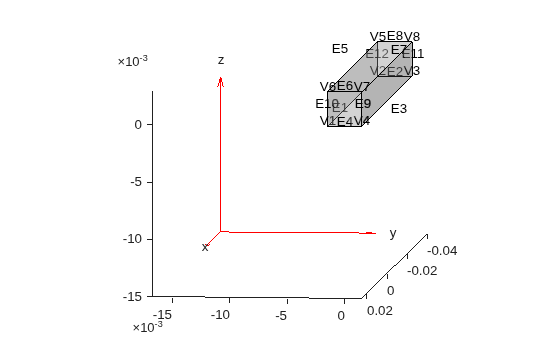

Create the geometry and include it in the model. Plot the geometry and display the edge and vertex labels.

gm = multicuboid(0.05,0.003,0.003);
modelM.Geometry=gm;
pdegplot(modelM,'EdgeLabels','on','VertexLabels','on');
view([95 5])

Generate a mesh.

msh = generateMesh(modelM);

Specify the Young's modulus, Poisson's ratio, and mass density of the material.

structuralProperties(modelM,'YoungsModulus',210E9, ...
                            'PoissonsRatio',0.3, ...
                            'MassDensity',7800);

Specify minimal constraints on one end of the beam to prevent rigid body modes. For example, specify that edge 4 and vertex 7 are fixed boundaries.

structuralBC(modelM,'Edge',4,'Constraint','fixed');
structuralBC(modelM,'Vertex',7,'Constraint','fixed');

Solve the problem for the frequency range from 0 to 500000. The recommended approach is to use a value that is slightly smaller than the expected lowest frequency. Thus, use -0.1 instead of 0.

Rm = solve(modelM,'FrequencyRange',[-0.1,500000]);

Transient Analysis

Create a transient analysis model for a 3-D problem.

modelD = createpde('structural','transient-solid');

Use the same geometry and mesh as for the modal analysis.

modelD.Geometry = gm;
modelD.Mesh = msh;

Specify the same values for the Young's modulus, Poisson's ratio, and mass density of the material.

structuralProperties(modelD,'YoungsModulus',210E9, ...
                            'PoissonsRatio',0.3, ...
                            'MassDensity',7800);

Specify the same minimal constraints on one end of the beam to prevent rigid body modes.

structuralBC(modelD,'Edge',4,'Constraint','fixed');
structuralBC(modelD,'Vertex',7,'Constraint','fixed');

Apply a sinusoidal force on the corner opposite the constrained edge and vertex.

structuralBoundaryLoad(modelD,'Vertex',5,'Force',[0,0,10],'Frequency',7600);

Specify the zero initial displacement and velocity.

structuralIC(modelD,'Velocity',[0;0;0],'Displacement',[0;0;0]);

Specify the relative and absolute tolerances for the solver.

modelD.SolverOptions.RelativeTolerance = 1E-5;
modelD.SolverOptions.AbsoluteTolerance = 1E-9;

Solve the model using the default direct integration method.

tlist = linspace(0,0.004,120);
Rd = solve(modelD,tlist)
Rd =
  TransientStructuralResults with properties:

     Displacement: [1x1 struct]
         Velocity: [1x1 struct]
     Acceleration: [1x1 struct]
    SolutionTimes: [1x120 double]
             Mesh: [1x1 FEMesh]

Now, solve the model using the modal results.

tlist = linspace(0,0.004,120);
Rdm = solve(modelD,tlist,'ModalResults',Rm)
Rdm =
  TransientStructuralResults with properties:

     Displacement: [1x1 struct]
         Velocity: [1x1 struct]
     Acceleration: [1x1 struct]
    SolutionTimes: [1x120 double]
             Mesh: [1x1 FEMesh]

Interpolate the displacement at the center of the beam.

intrpUd = interpolateDisplacement(Rd,0,0,0.0015);
intrpUdm = interpolateDisplacement(Rdm,0,0,0.0015);

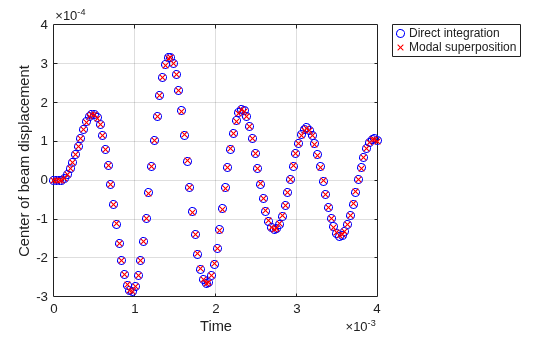

Compare the direct integration results with the results obtained by modal superposition.

plot(Rd.SolutionTimes,intrpUd.uz,'bo')
hold on
plot(Rdm.SolutionTimes,intrpUdm.uz,'rx')
grid on
legend('Direct integration', 'Modal superposition')
xlabel('Time');
ylabel('Center of beam displacement')
