Trenz Electronic and Xilinx Zynq

Explore motor control applications that support deployment on FPGA hardware from Trenz Electronic™ and Xilinx^® Zynq^®

Explore Motor Control Blockset™ examples that you can deploy on FPGA hardware from Trenz Electronic™ and Xilinx Zynq^®.

Featured Examples

Estimate PMSM Parameters Using FPGA-Based Motor Control Development Kit

Estimate parameters of a permanent magnet synchronous motor (PMSM) using blocks from Motor Control Blockset™ on an FPGA device (Trenz Electronic™ Motor Control Development Kit TE0820).

Open Script

FOC of PMSM Using FPGA-Based Motor Control Development Kit

Use a Field-Oriented Control (FOC) algorithm for a Permanent Magnet Synchronous Motor (PMSM) by using blocks from the Motor Control Blockset™ on an FPGA device (Trenz Electronic™ Motor Control Development Kit TE0820).

Open Script

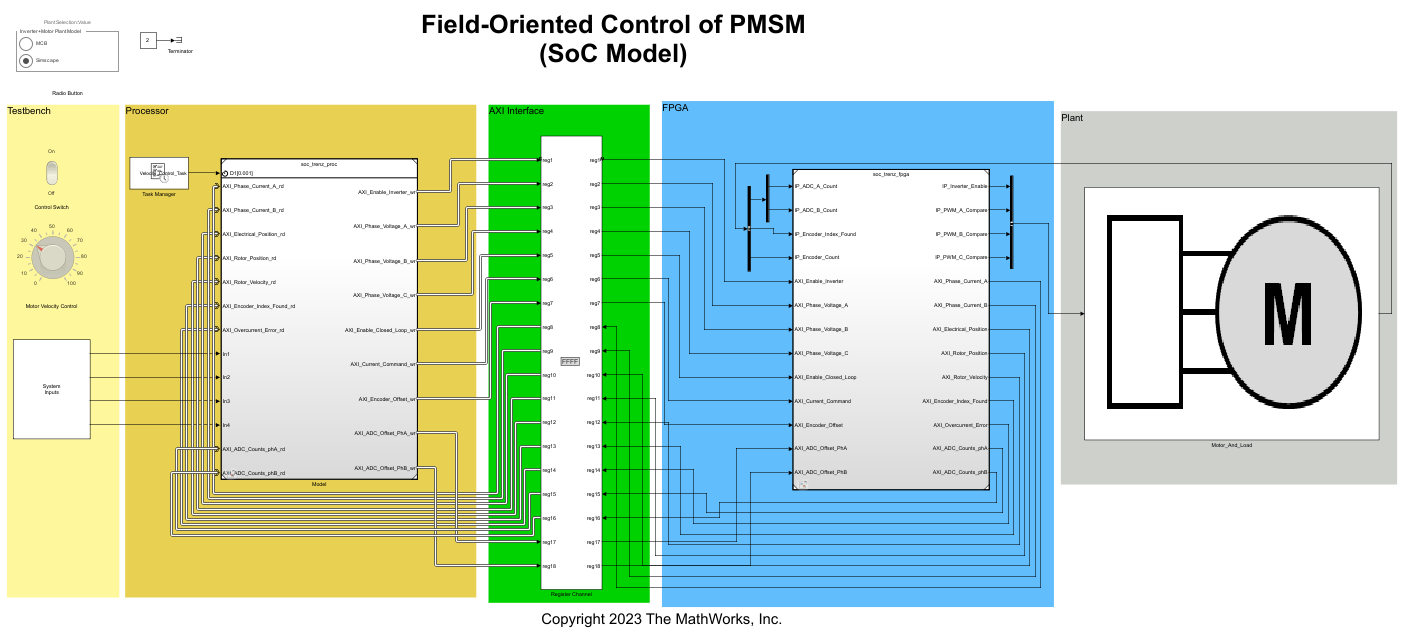

Implement Field-Oriented Control on FPGA SoC

Deploy a field-oriented control (FOC) algorithm for brushless DC motors to an SoC device by using a custom board target. A custom board target for the Trenz Electronic™ Motor Control Development Kit, based on Xilinx® Zynq® UltraScale+ MPSoC, allows you to deploy FOC application as a mix of software to the ARM® Cortex-A processor and hardware to the programmable logic of the device. This example uses the model and control algorithm partitioning from the Hardware-Software Partitioning of a Motor Control Algorithm (SoC Blockset) example.
