Quadrature Encoder Offset Calibration for PMSM
This example calculates the offset between the
d-axis of the rotor and encoder index pulse position as detected by the quadrature encoder sensor. The control algorithm (available in the field-oriented control and parameter estimation examples) uses this offset value to compute an accurate and precise position of the
d-axis of rotor. The controller needs this position to implement the field-oriented control (FOC) correctly in the rotor flux reference frame (d-q reference frame), and therefore, run the permanent magnet synchronous motor (PMSM) correctly.

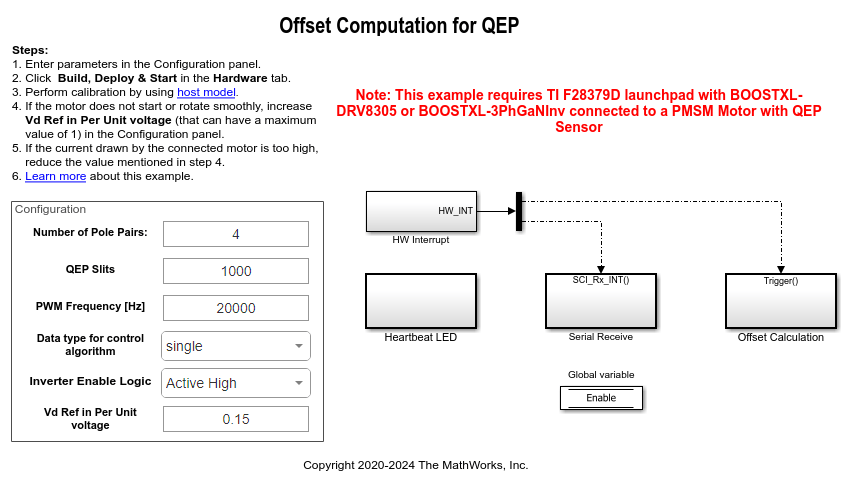

The example includes these models:
You can use these models only for code generation.
For the model names that you can use for different hardware configurations, see the Required Hardware topic in the Generate Code and Deploy Model to Target Hardware section.
Required MathWorks Products
To generate code and deploy model:
1. For the models: mcb_pmsm_qep_offset_f28069m and mcb_pmsm_qep_offset_f28069mLaunchPad
Motor Control Blockset™
C2000™ Microcontroller Blockset
2. For the model: mcb_pmsm_qep_offset_f28379d
Motor Control Blockset™
C2000™ Microcontroller Blockset
Fixed-Point Designer™ (only needed for optimized code generation)
Generate Code and Deploy Model to Target Hardware
This section instructs you to generate code and run the motor by using open-loop control.
The example uses a host and a target model. The host model is a user interface to the controller hardware board. You can run the host model on the host computer. The prerequisite to use the host model is to deploy the target model to the controller hardware board.
The host model uses serial communication to command the target model and run the motor in an open-loop configuration. You can use the host model to control the motor rotations and validate the direction of rotation of motor. The Incorrect motor direction LED in the host model turns red to indicate that the motor is running in the opposite direction. When the LED turns red, you must reverse the motor phase connections (from ABC to CBA) to change the direction of rotation. The host model displays the calculated offset value.
This example supports these hardware configurations. You can also use the target model name to open the model for the corresponding hardware configuration, from the MATLAB® command prompt.
F28069M controller card + DRV8312-69M-KIT inverter: mcb_pmsm_qep_offset_f28069m
For connections related to the preceding hardware configuration, see F28069 control card configuration.
LAUNCHXL-F28069M controller + BOOSTXL-DRV8305 inverter: mcb_pmsm_qep_offset_f28069mLaunchPad
LAUNCHXL-F28379D controller + (BOOSTXL-3PHGANINV or BOOSTXL-DRV8305) inverter: mcb_pmsm_qep_offset_f28379d
To configure the model mcb_pmsm_qep_offset_f28379d, set the Inverter Enable Logic field (in the Configuration panel of target model) to:
Active High: To use the model with BOOSTXL-DRV8305 inverter.
Active Low: To use the model with BOOSTXL-3PHGANINV inverter.
NOTE: When using BOOSTXL-3PHGANINV inverter, ensure that proper insulation is available between bottom layer of BOOSTXL-3PHGANINV and the LAUNCHXL board.
For connections related to the preceding hardware configurations, see LAUNCHXL-F28069M and LAUNCHXL-F28379D Configurations.
Generate Code and Run Model on Target Hardware
1. Complete the hardware connections.
2. Open the target model for the hardware configuration that you want to use. If you want to change the default hardware configuration settings for the target model, see Model Configuration Parameters.
3. Update the motor parameters in the Configuration panel of the target model.
Number of Pole Pairs
PWM Frequency [Hz]
Data type for control algorithm
Vd Ref in Per Unit voltage
4. Load a sample program to CPU2 of LAUNCHXL-F28379D, for example, program that operates the CPU2 blue LED by using GPIO31 (c28379D_cpu2_blink.slx), to ensure that CPU2 is not mistakenly configured to use the board peripherals intended for CPU1. For more information about the sample program or model, see the Task 2 - Create, Configure and Run the Model for TI Delfino F28379D LaunchPad (Dual Core) section in Getting Started with Texas Instruments C2000 Microcontroller Blockset (C2000 Microcontroller Blockset).
5. Click Build, Deploy & Start on the Hardware tab to deploy the target model to the hardware.

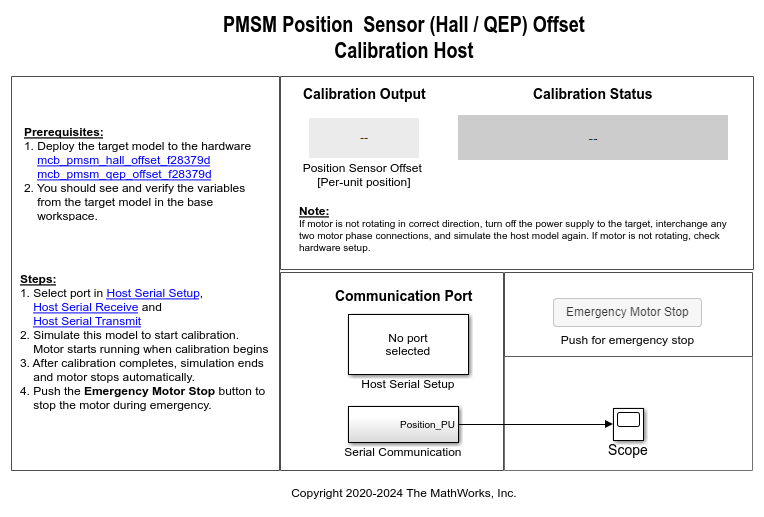

6. Click the host model hyperlink in the target model to open the associated host model.
For details about the serial communication between the host and target models, see Host-Target Communication.
You can use the Scope in the host model to monitor the rotor position and offset values.
7. In the host model, open the blocks Host Serial Setup, Host Serial Receive, and Host Serial Transmit, and select a Port.
8. Click Run on the Simulation tab to run the host model. The motor runs and calibration begins when you start simulation. After the calibration process is complete, simulation ends and the motor stops automatically.
9. See the Calibration Status section to know the status of the calibration process:
The Calibration in progress LED turns orange when the motor starts running. Notice the rotor position and the variation in the offset value in the Scope (the position signal indicates a ramp signal with an amplitude between 0 and 1). After the calibration process is complete, the LED turns grey.
The Calibration complete LED turns green when the calibration process is complete. Then the Calibration Output field displays the computed offset value.
The Incorrect motor direction LED turns red if the motor runs in the opposite direction. Then the
Calibration Outputfield displays the value "NaN." Turn off the DC power supply (24V) and reverse the motor phase connections from ABC to CBA. Repeat steps 5 to 8 and check if the Calibration complete LED is green. Verify that the
Calibration Outputfield displays the offset value.
Note: To immediately stop the motor, click the Emergency Motor Stop button.
This example does not support simulation. The example automatically saves the computed offset value in the
PositionOffset variable available in the base workspace.
For examples that implement FOC using a quadrature encoder sensor, update the computed quadrature encoder offset value in the
pmsm.PositionOffset parameter in the model initialization script linked to the example. For instructions, see Estimate Control Gains and Use Utility Functions.
