Field-Oriented Control of PMSM by Using Hall Sensor

This example implements the field-oriented control (FOC) technique to control the speed of a three-phase permanent magnet synchronous motor (PMSM). The FOC algorithm requires rotor position feedback, which is obtained by a Hall sensor. For details about implementing FOC, see Implement Motor Speed Control Using Field-Oriented Control (FOC).

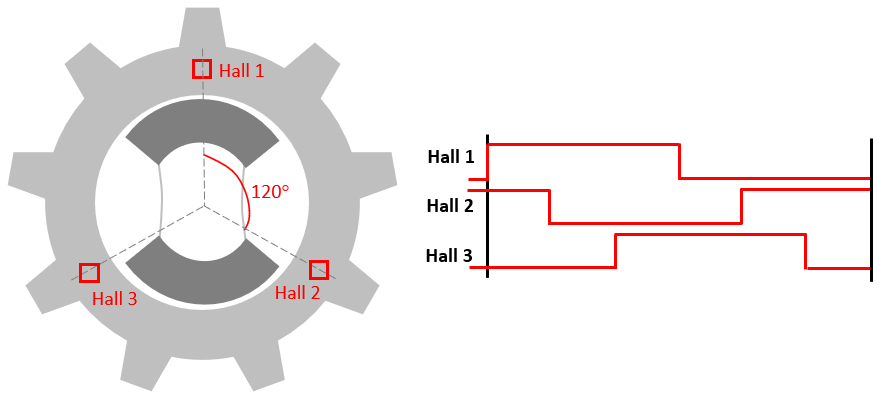

This example uses the Hall sensor to measure the rotor position. A Hall effect sensor varies its output voltage based on the strength of the applied magnetic field. A Hall sensor identifies the rotor position by detecting the polarity of the rotor magnets. A PMSM consists of three Hall sensors located electrically 120 degrees apart. A PMSM with this setup can provide six combinations valid of binary states (for example, 001,010,011,100,101, and 110). The sensor provides the angular position of the rotor in the multiples of 60 degrees, which the controller uses to compute the angular velocity. The controller can then use the angular velocity to compute an accurate angular position of the rotor.

Models

The example includes these models:

  • mcb_pmsm_foc_hall_f28069m

  • mcb_pmsm_foc_hall_f28379d

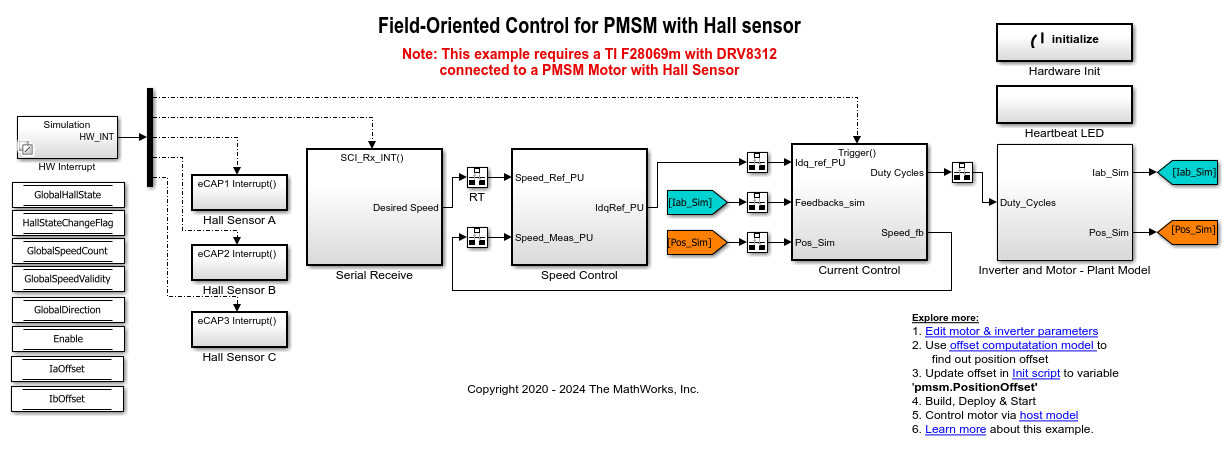

You can use these models for both simulation and code generation. You can use the open_system command to open the Simulink® model. For example, use this command for a F28069M based controller:

open_system('mcb_pmsm_foc_hall_f28069m.slx');

For the model names that you can use for different hardware configurations, see the Required Hardware topic in the Generate Code and Deploy Model to Target Hardware section.

Required MathWorks® Products

To simulate model:

1. For the model: mcb_pmsm_foc_hall_f28069m

  • Motor Control Blockset™

  • Fixed-Point Designer™

2. For the model: mcb_pmsm_foc_hall_f28379d

  • Motor Control Blockset™

To generate code and deploy model:

1. For the model: mcb_pmsm_foc_hall_f28069m

  • Motor Control Blockset™

  • Embedded Coder®

  • Embedded Coder® Support Package for Texas Instruments™ C2000™ Processors

  • Fixed-Point Designer™

2. For the model: mcb_pmsm_foc_hall_f28379d

  • Motor Control Blockset™

  • Embedded Coder®

  • Embedded Coder® Support Package for Texas Instruments™ C2000™ Processors

  • Fixed-Point Designer™ (only needed for optimized code generation)

Prerequisites

1. Obtain the motor parameters. We provide default motor parameters with the Simulink® model that you can replace with the values from either the motor datasheet or other sources.

However, if you have the motor control hardware, you can estimate the parameters for the motor that you want to use, by using the Motor Control Blockset parameter estimation tool. For instructions, see Estimate Motor Parameters by Using Motor Control Blockset Parameter Estimation Tool.

The parameter estimation tool updates the motorParam variable (in the MATLAB® workspace) with the estimated motor parameters.

2. If you obtain the motor parameters from the datasheet or other sources, update the motor parameters and inverter parameters in the model initialization script associated with the Simulink® models. For instructions, see Estimate Control Gains from Motor Parameters.

If you use the parameter estimation tool, you can update the inverter parameters, but do not update the motor parameters in the model initialization script. The script automatically extracts motor parameters from the updated motorParam workspace variable.

Simulate Model

This example supports simulation. Follow these steps to simulate the model.

1. Open a model included with this example.

2. To simulate the model, click Run on the Simulation tab.

3. To view and analyze the simulation results, click Data Inspector on the Simulation tab.

Generate Code and Deploy Model to Target Hardware

This section instructs you to generate code and run the FOC algorithm on the target hardware.

This example uses a host and a target model. The host model is a user interface to the controller hardware board. You can run the host model on the host computer. The prerequisite to use the host model is to deploy the target model to the controller hardware board. The host model uses serial communication to command the target Simulink® model and run the motor in a closed-loop control.

Required Hardware

This example supports these hardware configurations. Use the target model name (highlighted in bold) to open the model for the corresponding hardware configuration, from the MATLAB® command prompt.

  • F28069M controller card + DRV8312-69M-KIT inverter: mcb_pmsm_foc_hall_f28069m

For connections related to the preceding hardware configuration, see F28069 control card configuration.

  • LAUNCHXL-F28069M controller + BOOSTXL-DRV8305 inverter: mcb_pmsm_foc_hall_f28069m

  • LAUNCHXL-F28379D controller + BOOSTXL-DRV8305 inverter: mcb_pmsm_foc_hall_f28379d

For connections related to the preceding hardware configurations, see LAUNCHXL-F28069M and LAUNCHXL-F28379D configurations.

Generate Code and Run Model on Target Hardware

1. Simulate the target model and observe the simulation results.

2. Complete the hardware connections.

3. The model automatically computes the Analog-to-Digital Converter (ADC) or current offset values. To disable this functionality (enabled by default), update the value 0 to the variable inverter.ADCOffsetCalibEnable in the model initialization script.

Alternatively, you can compute the ADC offset values and update it manually in the model initialization scripts. For instructions, see Run 3-Phase AC Motors in Open-Loop Control and Calibrate ADC Offset.

4. Compute the Hall sensor offset value and update it in the model initialization script associated with the target model. For instructions, see Hall Offset Calibration for PMSM Motor

5. Open the target model for the hardware configuration that you want to use. If you want to change the default hardware configuration settings for the model, see Model Configuration Parameters.

6. Load a sample program to CPU2 of LAUNCHXL-F28379D, for example, program that operates the CPU2 blue LED by using GPIO31 (c28379D_cpu2_blink.slx), to ensure that CPU2 is not mistakenly configured to use the board peripherals intended for CPU1.

7. Click Build, Deploy & Start on the Hardware tab to deploy the model to the hardware.

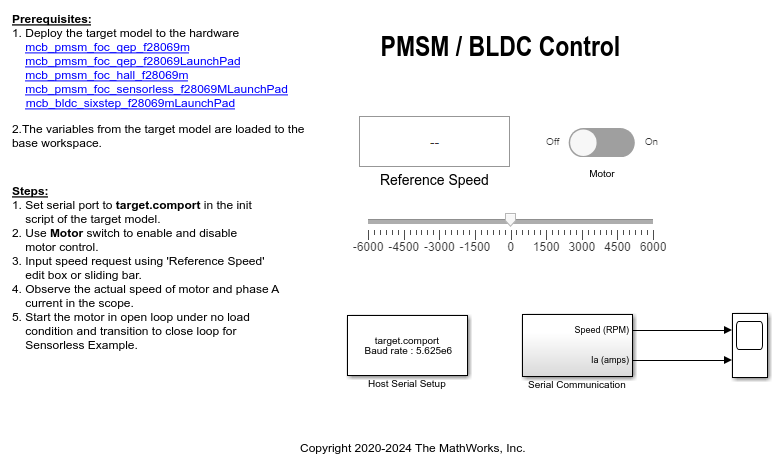

8. In the target model, click the host model hyperlink to open the associated host model. You can also use the open_system command to open the host model. For example, use this command for a F28069M based controller:

open_system('mcb_pmsm_foc_host_model_f28069m.slx');

For details about the serial communication between the host and target models, see Host-Target Communication.

9. In the Host Serial Setup block mask of the host model, select a Port name.

10. Update the Reference Speed value in the host model.

11. Click Run on the Simulation tab to run the host model.

12. Change the position of the Start / Stop Motor switch to On, to start running the motor.

13. Observe the debug signals from the RX subsystem, in the Time Scope of host model.

Note: If you are using a F28379D based controller, you can also select the debug signals that you want to monitor.
