Compute Maximum Average HSV of Images with MapReduce

This example shows how to use ImageDatastore and mapreduce to find images with maximum hue, saturation and brightness values in an image collection.

Prepare Data

Create a datastore using the images in toolbox/matlab/demos and toolbox/matlab/imagesci. The selected images have the extensions .jpg, .tif and .png.

demoFolder = fullfile(matlabroot, 'toolbox', 'matlab', 'demos');
imsciFolder = fullfile(matlabroot, 'toolbox', 'matlab', 'imagesci');

Create a datastore using the folder paths, and filter which images are included in the datastore using the FileExtensions Name-Value pair.

ds = imageDatastore({demoFolder, imsciFolder}, ...
    'FileExtensions', {'.jpg', '.tif', '.png'});

Find Average Maximum HSV from All Images

One way to find the maximum average hue, saturation, and brightness values in the collection of images is to use readimage within a for-loop, processing the images one at a time. For an example of this method, see Read and Analyze Image Files.

This example uses mapreduce to accomplish the same task, however, the mapreduce method is highly scalable to larger collections of images. While the for-loop method is reasonable for small collections of images, it does not scale well to a large collection of images.

Scale to MapReduce

  • The mapreduce function requires a map function and a reduce function as inputs.

  • The map function receives blocks of data and outputs intermediate results.

  • The reduce function reads the intermediate results and produces a final result.

Map function

  • In this example, the map function stores the image data and the average HSV values as intermediate values.

  • The intermediate values are associated with 3 keys, 'Average Hue', 'Average Saturation' and 'Average Brightness'.

function hueSaturationValueMapper(data, info, intermKVStore)
  if ~ismatrix(data)
    hsv = rgb2hsv(data);

    % Extract Hue values
    h = hsv(:,:,1);

    % Extract Saturation values
    s = hsv(:,:,2);

    % Extract Brightness values
    v = hsv(:,:,3);

    % Find average of HSV values
    avgH = mean(h(:));
    avgS = mean(s(:));
    avgV = mean(v(:));

    % Add intermediate key-value pairs
    add(intermKVStore, 'Average Hue', struct('Filename', info.Filename, 'Avg', avgH));
    add(intermKVStore, 'Average Saturation', struct('Filename', info.Filename, 'Avg', avgS));
    add(intermKVStore, 'Average Brightness', struct('Filename', info.Filename, 'Avg', avgV));
  end
end

Reduce function

  • The reduce function receives a list of the image file names along with the respective average HSV values and finds the overall maximum values of average hue, saturation and brightness values.

  • mapreduce only calls this reduce function 3 times, since the map function only adds three unique keys.

  • The reduce function uses add to add a final key-value pair to the output. For example, 'Maximum Average Hue' is the key and the respective file name is the value.

function hueSaturationValueReducer(key, intermValIter, outKVSTore)
  maxAvg = 0;
  maxImageFilename = '';

  % Loop over values for each key
  while hasnext(intermValIter)
    value = getnext(intermValIter);
    % Compare values to determine maximum
    if value.Avg > maxAvg
      maxAvg = value.Avg;
      maxImageFilename = value.Filename;
    end
  end

  % Add final key-value pair
  add(outKVSTore, ['Maximum ' key], maxImageFilename);
end

Run MapReduce

Use mapreduce to apply the map and reduce functions to the datastore, ds.

maxHSV = mapreduce(ds, @hueSaturationValueMapper, @hueSaturationValueReducer);
********************************
*      MAPREDUCE PROGRESS      *
********************************
Map   0% Reduce   0%
Map  12% Reduce   0%
Map  25% Reduce   0%
Map  37% Reduce   0%
Map  50% Reduce   0%
Map  62% Reduce   0%
Map  75% Reduce   0%
Map  87% Reduce   0%
Map 100% Reduce   0%
Map 100% Reduce  33%
Map 100% Reduce  67%
Map 100% Reduce 100%

mapreduce returns a datastore, maxHSV, with files in the current folder.

Read and display the final result from the output datastore, maxHSV. Use find and strcmp to find the file index from the Files property.

tbl = readall(maxHSV);
for i = 1:height(tbl)
    figure;
    idx = find(strcmp(ds.Files, tbl.Value{i}));
    imshow(readimage(ds, idx), 'InitialMagnification', 'fit');

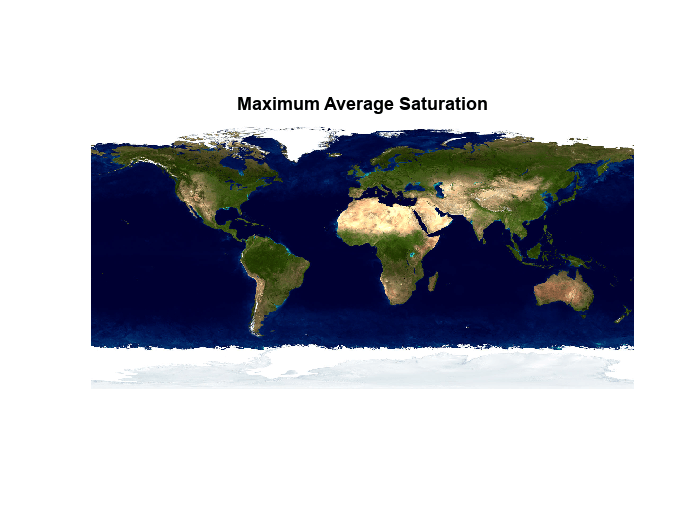

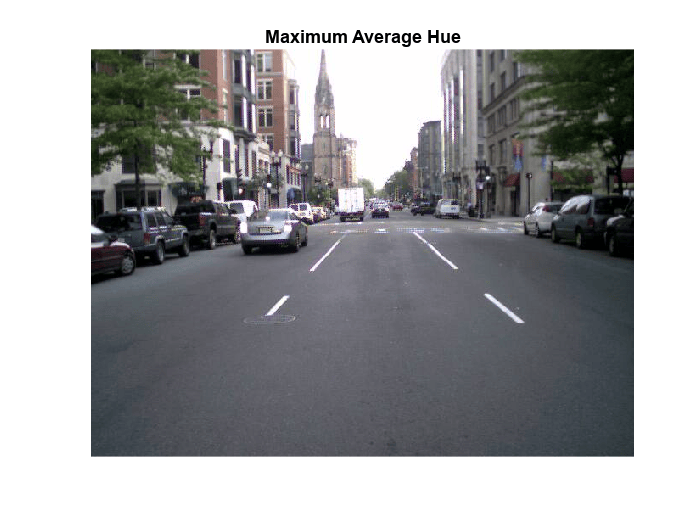

    title(tbl.Key{i});
end

Local Functions

Listed here are the map and reduce functions that mapreduce applies to the data.

function hueSaturationValueMapper(data, info, intermKVStore)
  if ~ismatrix(data)
    hsv = rgb2hsv(data);

    % Extract Hue values
    h = hsv(:,:,1);

    % Extract Saturation values
    s = hsv(:,:,2);

    % Extract Brightness values
    v = hsv(:,:,3);

    % Find average of HSV values
    avgH = mean(h(:));
    avgS = mean(s(:));
    avgV = mean(v(:));

    % Add intermediate key-value pairs
    add(intermKVStore, 'Average Hue', struct('Filename', info.Filename, 'Avg', avgH));
    add(intermKVStore, 'Average Saturation', struct('Filename', info.Filename, 'Avg', avgS));
    add(intermKVStore, 'Average Brightness', struct('Filename', info.Filename, 'Avg', avgV));
  end
end
%------------------------------------------------------------------------------------------
function hueSaturationValueReducer(key, intermValIter, outKVSTore)
  maxAvg = 0;
  maxImageFilename = '';

  % Loop over values for each key
  while hasnext(intermValIter)
    value = getnext(intermValIter);
    % Compare values to determine maximum
    if value.Avg > maxAvg
      maxAvg = value.Avg;
      maxImageFilename = value.Filename;
    end
  end

  % Add final key-value pair
  add(outKVSTore, ['Maximum ' key], maxImageFilename);
end
%------------------------------------------------------------------------------------------
