This example shows how to measure the angle and point of intersection between two beams using `bwtraceboundary`

, which is a boundary tracing routine. A common task in machine vision applications is hands-free measurement using image acquisition and image processing techniques.

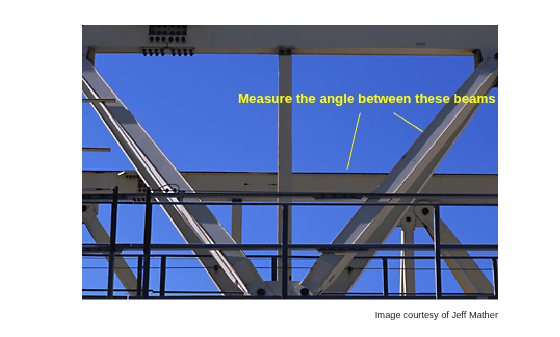

Read in `gantrycrane.png`

and draw arrows pointing to two beams of interest. It is an image of a gantry crane used to assemble a bridge.

RGB = imread('gantrycrane.png'); imshow(RGB); text(size(RGB,2),size(RGB,1)+15,'Image courtesy of Jeff Mather',... 'FontSize',7,'HorizontalAlignment','right'); line([300 328],[85 103],'color',[1 1 0]); line([268 255],[85 140],'color',[1 1 0]); text(150,72,'Measure the angle between these beams','Color','y',... 'FontWeight', 'bold');

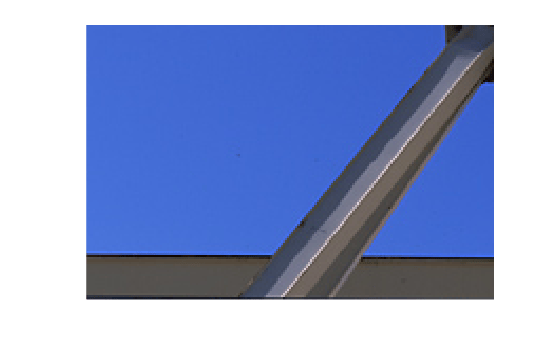

Crop the image to obtain only the beams of the gantry crane chosen earlier. This step will make it easier to extract the edges of the two metal beams.

% you can obtain the coordinates of the rectangular region using % pixel information displayed by imtool start_row = 34; start_col = 208; cropRGB = RGB(start_row:163, start_col:400, :); imshow(cropRGB)

% Store (X,Y) offsets for later use; subtract 1 so that each offset will % correspond to the last pixel before the region of interest offsetX = start_col-1; offsetY = start_row-1;

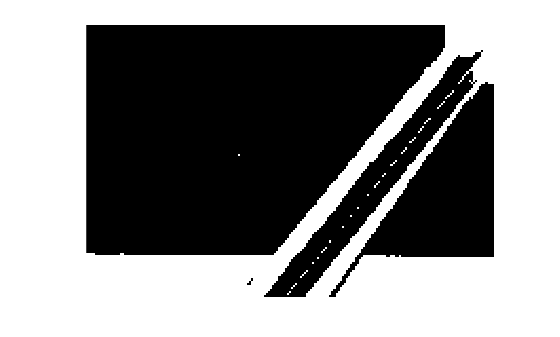

Convert the image to black and white for subsequent extraction of the edge coordinates using `bwtraceboundary`

routine.

```
I = rgb2gray(cropRGB);
BW = imbinarize(I);
BW = ~BW; % complement the image (objects of interest must be white)
imshow(BW)
```

The `bwtraceboundary`

routine requires that you specify a single point on a boundary. This point is used as the starting location for the boundary tracing process.

To extract the edge of the lower beam, pick a column in the image and inspect it until a transition from a background pixel to the object pixel occurs. Store this location for later use in `bwtraceboundary`

routine. Repeat this procedure for the other beam, but this time tracing horizontally.

dim = size(BW); % horizontal beam col1 = 4; row1 = find(BW(:,col1), 1); % angled beam row2 = 12; col2 = find(BW(row2,:), 1);

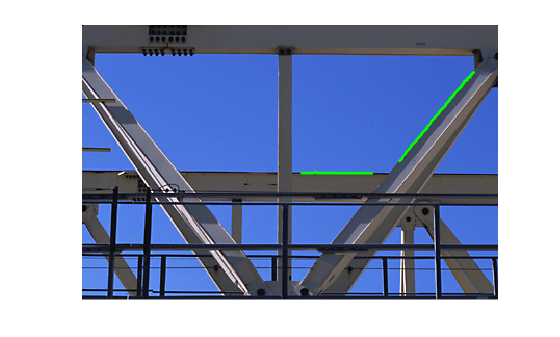

The `bwtraceboundary`

routine is used to extract (X, Y) locations of the boundary points. In order to maximize the accuracy of the angle and point of intersection calculations, it is important to extract as many points belonging to the beam edges as possible. You should determine the number of points experimentally. Since the initial point for the horizontal bar was obtained by scanning from north to south, it is safest to set the initial search step to point towards the outside of the object, i.e. 'North'.

boundary1 = bwtraceboundary(BW, [row1, col1], 'N', 8, 70); % set the search direction to counterclockwise, in order to trace downward. boundary2 = bwtraceboundary(BW, [row2, col2], 'E', 8, 90,'counter'); imshow(RGB); hold on; % apply offsets in order to draw in the original image plot(offsetX+boundary1(:,2),offsetY+boundary1(:,1),'g','LineWidth',2); plot(offsetX+boundary2(:,2),offsetY+boundary2(:,1),'g','LineWidth',2);

Although (X,Y) coordinates pairs were obtained in the previous step, not all of the points lie exactly on a line. Which ones should be used to compute the angle and point of intersection? Assuming that all of the acquired points are equally important, fit lines to the boundary pixel locations.

The equation for a line is y = [x 1]*[a; b]. You can solve for parameters 'a' and 'b' in the least-squares sense by using `polyfit`

.

ab1 = polyfit(boundary1(:,2), boundary1(:,1), 1); ab2 = polyfit(boundary2(:,2), boundary2(:,1), 1);

Use the dot product to find the angle.

vect1 = [1 ab1(1)]; % create a vector based on the line equation vect2 = [1 ab2(1)]; dp = dot(vect1, vect2); % compute vector lengths length1 = sqrt(sum(vect1.^2)); length2 = sqrt(sum(vect2.^2)); % obtain the larger angle of intersection in degrees angle = 180-acos(dp/(length1*length2))*180/pi

angle = 129.4971

Solve the system of two equations in order to obtain (X,Y) coordinates of the intersection point.

intersection = [1 ,-ab1(1); 1, -ab2(1)] \ [ab1(2); ab2(2)]; % apply offsets in order to compute the location in the original, % i.e. not cropped, image. intersection = intersection + [offsetY; offsetX]

`intersection = `*2×1*
143.0917
295.7494

inter_x = intersection(2); inter_y = intersection(1); % draw an "X" at the point of intersection plot(inter_x,inter_y,'yx','LineWidth',2); text(inter_x-60, inter_y-30, [sprintf('%1.3f',angle),'{\circ}'],... 'Color','y','FontSize',14,'FontWeight','bold'); interString = sprintf('(%2.1f,%2.1f)', inter_x, inter_y); text(inter_x-10, inter_y+20, interString,... 'Color','y','FontSize',14,'FontWeight','bold');
