# Dilate an Image to Enlarge a Shape

This example shows how to dilate an image using the `imdilate` function. The morphological dilation operation expands or thickens foreground objects in an image.

Create a simple sample binary image containing one foreground object: the square region of 1's in the middle of the image.

```BW = zeros(9,10); BW(4:6,4:7) = 1```
```BW = 9×10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ```

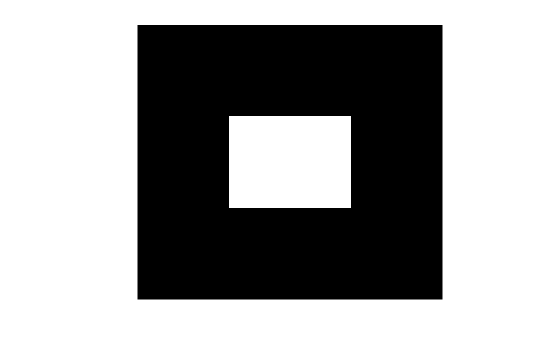

`imshow(imresize(BW,40,'nearest'))`

Create a structuring element to use with `imdilate`. To dilate a geometric object, you typically create a structuring element that is the same shape as the object.

`SE = strel('square',3)`
```SE = strel is a square shaped structuring element with properties: Neighborhood: [3x3 logical] Dimensionality: 2 ```

Dilate the image, passing the input image and the structuring element to `imdilate`. Note how dilation adds a rank of 1's to all sides of the foreground object.

`BW2 = imdilate(BW,SE)`
```BW2 = 9×10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 0 0 0 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 ```
`imshow(imresize(BW2,40,'nearest'))`

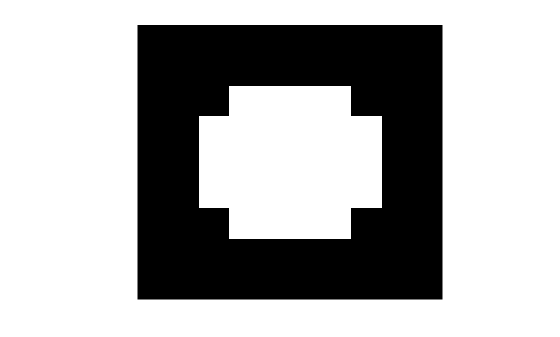

For comparison, create a structuring element that is a different shape. Dilate the original image using the new structuring element.

```SE2 = strel('diamond',1); BW3 = imdilate(BW,SE2); imshow(imresize(BW3,40,'nearest'))```
