# Augment Known Linear Model with Flexible Nonlinear Functions

This example demonstrates a method to improve the normalized root mean-squared error (NRMSE) fit score of an existing state-space model using a neural state-space model.

The structure of a discrete-time state-space model is:

${x}_{k+1}=A{x}_{k}+B{u}_{k}$

$${y}_{k}={x}_{k}$$

Here, $$A{x}_{k}+B{u}_{k}$$ represents the known linear part of the dynamics. You can compute $$A$$ and $$B$$ matrices from prior knowledge (for example, from physical modeling), or from prior linear estimation. In this example, you extend the state transition dynamics by adding a nonlinear function, $$f({x}_{k},{u}_{k})$$, represented by a neural network. To do this, you use a neural state-space model that uses a custom neural network.

The structure of the discrete-time neural state-space model is:

${x}_{k+1}=A{x}_{k}+B{u}_{k}+f({x}_{k},{u}_{k})$

$${y}_{k}={x}_{k}$$

### Model Description

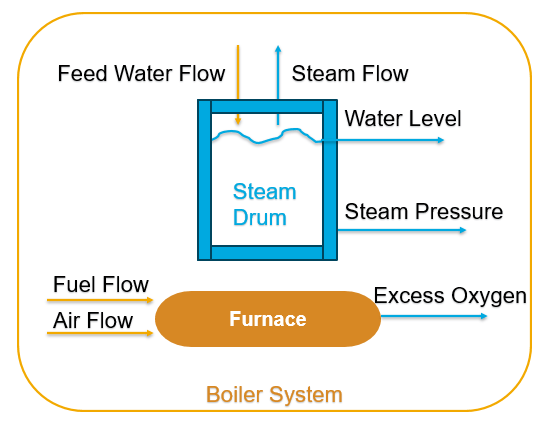

This example considers the dynamics of a steam generator at the Abbott Power Plant in Champaign, IL. While a linear model provides a good baseline model, it is not enough for capturing the smaller nonlinear contributions to the dynamics. So you use a model which is a nonlinear system with four inputs and four outputs. It faithfully displays all the essential features of the actual boiler dynamics including nonlinearities, nonminimum phase behaviors, instabilities, noise spectrum, time delays, and load disturbances. For more information on the model, see [1].

### Data Preparation

Load the data set. Prepare both the estimation and validation data.

load boiler.mat z z.OutputName = {"Drum Pressure", "Excess Oxygen Level", ... "Drum Water Level","Steam Flow Rate"}; z.InputName = {"Fuel Flow Rate", "Air Flow Rate", ... "Feed Water Flow Rate","Load Disturbance"}; ze = z(1:7000); ze.Name = "estimation data"; zv = z(7001:end); zv.Name = "validation data";

Display the data set.

```

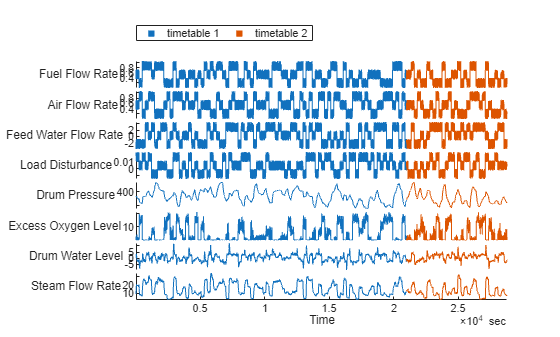

idplot(ze,zv)
legend show
```

To ensure that all features have the same scale, normalize the data set. This helps avoid numerical errors during training.

ze.y = normalize(ze.y); ze.u = normalize(ze.u); zv.y = normalize(zv.y); zv.u = normalize(zv.u);

### Linear Model Estimation

To estimate the linear model, you can use:

Empirical or physical laws incorporating simplifying assumptions

A digital system in Simulink® and linearize it about a nominal operating condition

The

`ssest`

function

In this example, you set training options using `ssestOptions`

and train a fourth-order linear state-space model using the `ssest`

function.

nx = 4; opt = ssestOptions; opt.Focus = "simulation"; opt.OutputWeight = eye(nx); opt.EstimateCovariance = false; opt.SearchMethod = "lm"; rng(1) sysd = ssest(ze,nx,opt,DisturbanceModel="none",Ts=3);

Transform the model so that it has `y=x`

as its output equation. This is required to create a neural state-space model later.

linsys = ss2ss(sysd,sysd.C)

linsys = Discrete-time identified state-space model: x(t+Ts) = A x(t) + B u(t) + K e(t) y(t) = C x(t) + D u(t) + e(t) A = x1 x2 x3 x4 x1 0.9963 0.02005 -0.003057 -0.05075 x2 0.02933 0.7955 -0.005347 0.02414 x3 0.03075 -0.0462 0.9575 -0.1081 x4 0.05099 -0.02074 0.007758 0.8997 B = Fuel Flow Ra Air Flow Rat Feed Water F Load Disturb x1 0.06703 -0.009903 0.004164 0.01035 x2 -0.1894 0.1014 -0.02146 0.008553 x3 0.03703 0.02013 0.03299 0.06205 x4 0.04863 0.01055 -0.01498 0.06012 C = x1 x2 x3 x4 Drum Pressur 1 0 0 0 Excess Oxyge 0 1 0 0 Drum Water L 0 0 1 0 Steam Flow R 0 0 0 1 D = Fuel Flow Ra Air Flow Rat Feed Water F Load Disturb Drum Pressur 0 0 0 0 Excess Oxyge 0 0 0 0 Drum Water L 0 0 0 0 Steam Flow R 0 0 0 0 K = Drum Pressur Excess Oxyge Drum Water L Steam Flow R x1 0 0 0 0 x2 0 0 0 0 x3 0 0 0 0 x4 0 0 0 0 Sample time: 3 seconds Parameterization: FREE form (all coefficients in A, B, C free). Feedthrough: yes Disturbance component: estimate Number of free coefficients: 80 Use "idssdata", "getpvec", "getcov" for parameters and their uncertainties. Status: Model modified after estimation. Model Properties

Compare the simulated model response with the validation data.

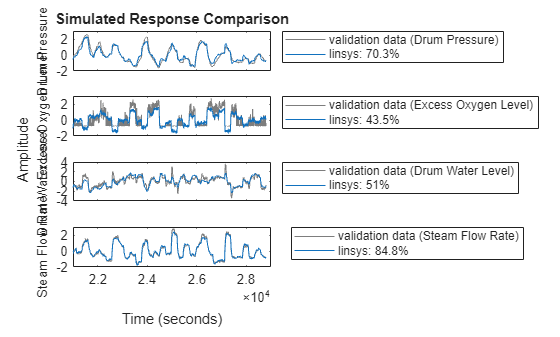

compare(zv,linsys)

You can see that the linear model is not sufficient for estimation as the fit percentages for the second and third outputs are poor.

### Nonlinear Model Estimation

First, create the state network used for training based on the state equation ${x}_{k+1}=A{x}_{k}+B{u}_{k}+f({x}_{k},{u}_{k})$. The model has four states, four inputs, and a hidden layer of size 10.

nx = 4; nu = 4; nh = 10;

Create a custom neural network to represent the state equation using the helper function `createSSNN`

defined at the end of the example.

`net = createSSNN(nx,nu,nh); % x(k+1) = Ax + Bu + f(x,u)`

Initialize the weights and biases corresponding to `A`

and `B`

based on their values from the linear model.

A = linsys.A; B = linsys.B; ind = 7; net.Learnables{ind,3} = {dlarray(A)}; % weight for A net.Learnables{ind+1,3} = {dlarray(zeros(nx,1))}; % bias for A net.Learnables{ind+2,3} = {dlarray(B)}; % weight for B net.Learnables{ind+3,3} = {dlarray(zeros(nx,1))}; % bias for B plot(net)

Use `idNeuralStateSpace`

to create the neural state-space model using the same sample time as the linear model. Assign the created custom network as the state network of the model.

nss = idNeuralStateSpace(nx,NumInputs=nu,Ts=linsys.Ts); nss.StateNetwork = net;

Warning: By default, "X(k)" layer is used as state and "U(k)" layer is used as input. If this is not the case, consider using "setNetwork" to assign the layer names.

To avoid the warning, you can use the `setNetwork`

function.

nss = setNetwork(nss,"state",net,xName='X(k)',uName='U(k)');

Set the training options using `nssTrainingOptions`

and train the model using `nlssest`

.

opts = nssTrainingOptions('adam'); opts.MaxEpochs = 2000; opts.LearnRate = 0.07; opts.WindowSize = 150; opts.Overlap = 30; opts.LossFcn = "MeanSquaredError"; opts.LearnRateSchedule = "piecewise"; opts.LearnRateDropFactor = 0.6; opts.LearnRateDropPeriod = 600; sys = nlssest(ze,nss,opts)

Generating estimation report...done. sys = Discrete-time Neural ODE in 4 variables x(t+1) = f(x(t),u(t)) y(t) = x(t) + e(t) f(.) network: Deep network with 4 fully connected, hidden layers Activation function: sigmoid Variables: x1, x2, x3, x4 Sample time: 3 seconds Status: Estimated using NLSSEST on time domain data "ze". Fit to estimation data: [82.5;75.63;72.04;87.08]% FPE: 2.476e-06, MSE: 0.1849 Model Properties

Compare the simulated linear and nonlinear model responses with the validation data.

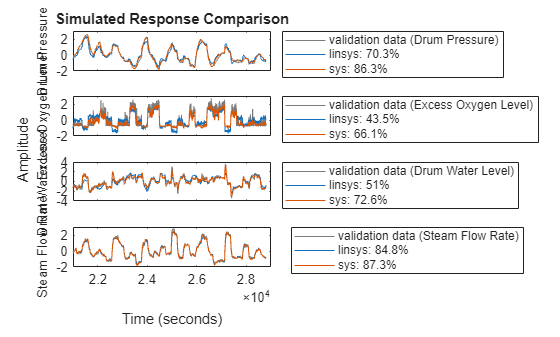

compare(zv,linsys,sys)

Verify that the weights corresponding to A and B are same as those of the linear model.

A_trained = extractdata(sys.StateNetwork.Learnables.Value{7}); isequal(A,A_trained)

`ans = `*logical*
1

B_trained = extractdata(sys.StateNetwork.Learnables.Value{9}); isequal(B,B_trained)

`ans = `*logical*
1

You can observe that the neural state-space model successfully captures the unmodeled dynamics with the linear part fixed.

### Function to Create Neural Network

Create a custom neural network representing $$x(k+1)=Ax+Bu+f(x,u)$$.

function net = createSSNN(nx,nu,nh) net = dlnetwork; % Input layers for x and u tempLayers = featureInputLayer(nx,"Name","X(k)"); net = addLayers(net,tempLayers); tempLayers = featureInputLayer(nu,"Name","U(k)"); net = addLayers(net,tempLayers); % Layers for f(x,u) tempLayers = [ concatenationLayer(1,2,"Name","concat") fullyConnectedLayer(nh,"Name","fc1") sigmoidLayer("Name","act1") fullyConnectedLayer(nh,"Name","fc2") sigmoidLayer("Name","act2") fullyConnectedLayer(nx,"Name","Wx")]; net = addLayers(net,tempLayers); % Layers for Ax tempLayers = fullyConnectedLayer(nx,"Name","A"); tempLayers.WeightLearnRateFactor = 0; % Fix linear component of model tempLayers.BiasLearnRateFactor = 0; net = addLayers(net,tempLayers); % Layers for Bu tempLayers = fullyConnectedLayer(nx,"Name","B"); tempLayers.WeightLearnRateFactor = 0; % Fix linear component of model tempLayers.BiasLearnRateFactor = 0; net = addLayers(net,tempLayers); % Layers for f(x,u) tempLayers = additionLayer(3,"Name","addition"); net = addLayers(net,tempLayers); % Connect all branches of the network to create the network graph net = connectLayers(net,"X(k)","concat/in1"); net = connectLayers(net,"X(k)","A"); net = connectLayers(net,"U(k)","concat/in2"); net = connectLayers(net,"U(k)","B"); net = connectLayers(net,"A","addition/in1"); net = connectLayers(net,"B","addition/in2"); net = connectLayers(net,"Wx","addition/in3"); % Initialize the network net = initialize(net); end

### References

1] G. Pellegrinetti and J. Benstman, *Nonlinear Control Oriented Boiler Modeling - A Benchmark Problem for Controller Design*, IEEE Tran. Control Systems Tech. Vol.4No.1 Jan.1996
