Get Started with Simulink HDL Cosimulation

This example guides you through the basic steps for setting up an HDL Verifier™ application using the Cosimulation Wizard in the Simulink® environment.

The Cosimulation Wizard is a graphical user interface (GUI) that guides you through the process of setting up cosimulation between MATLAB® or Simulink® and a Hardware Description Language (HDL) simulator.

In this example, you use Simulink and an HDL simulator to verify a design of a raised cosine filter written in Verilog. The raised cosine filter is commonly used as a pulse shaping filter in digital communication systems. It produces no inter-symbol interference (ISI) for the input of modulated pulses.

To verify the functionality of this raised cosine filter, a Simulink testbench is provided. This testbench generates input to the HDL design under test (DUT) and plots the waveforms of both input and output.

The Cosimulation Wizard takes the provided Verilog file of this raised cosine filter as its input. It also collects user input required for setting up cosimulation in each step. At the end of the example, the Cosimulation Wizard generates a Simulink block that represents the HDL design in the Simulink model, a MATLAB script that compiles HDL design, and a MATLAB script that launches the HDL simulator for cosimulation. During simulation, you can watch the input and output waveforms of this HDL filter in Simulink.

Requirements and Prerequisites

This example requires Simulink and one of these HDL simulators to verify a register transfer level (RTL) design.

  • Vivado® simulator from Xilinx®

  • ModelSim® or Questa® from Mentor Graphics®

  • Xcelium® from Cadence®

Launch Cosimulation Wizard

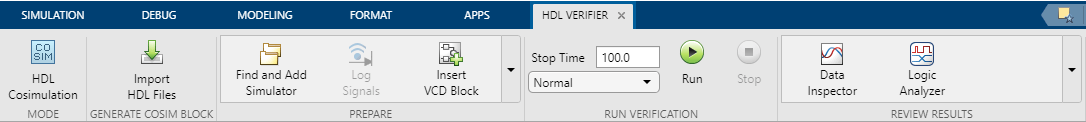

To launch the Cosimulation Wizard from the model, select the Apps tab in the Simulink toolstrip and click HDL Verifier. This action adds the HDL Verifier tab to the Simulink toolstrip. Then, in the Mode section, select HDL Cosimulation. Click Import HDL Files in the Generate Cosim Block section.

Configure HDL Cosimulation Block with Cosimulation Wizard

In the Cosimulation Type page, perform the following steps:

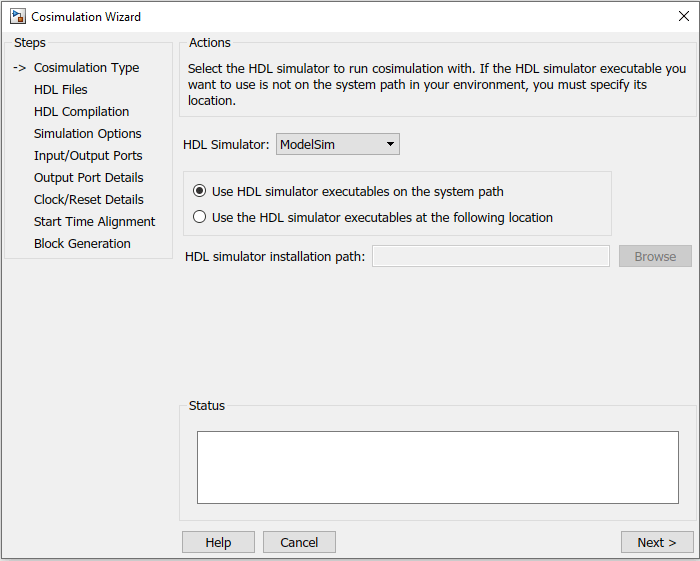

1.a). If you are using ModelSim or Questa, leave the HDL Simulator option as ModelSim.

b). If you are using Xcelium, change the HDL Simulator option to Xcelium.

c). If you are using Vivado simulator, change the HDL Simulator option to Vivado Simulator.

2. Leave the default option Use HDL simulator executables on the system path option if the HDL simulator executables appear on your system path. If these executables do not appear on the path, click on the Browse button to specify the location of these executables.

Click Next to proceed to the HDL Files page.

In the HDL Files page, perform the following steps:

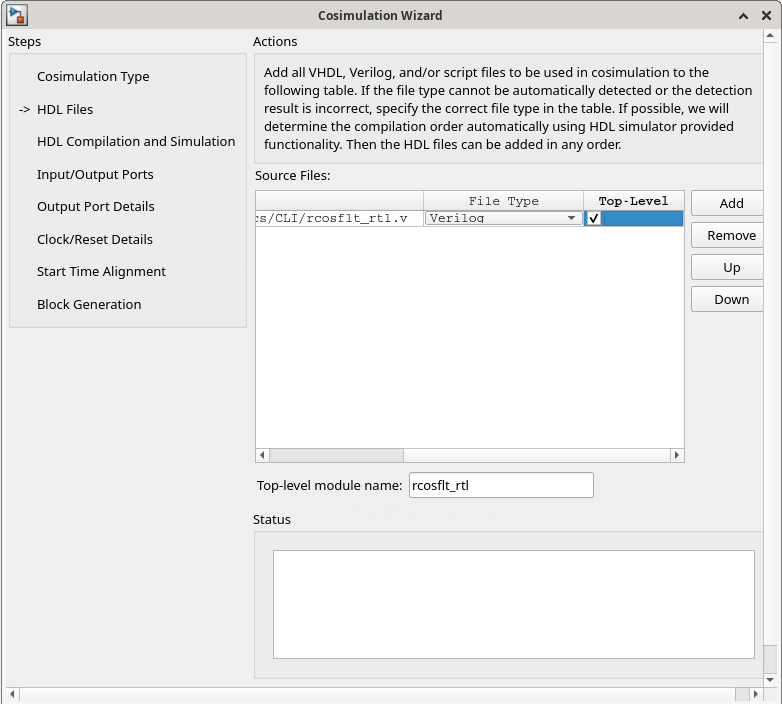

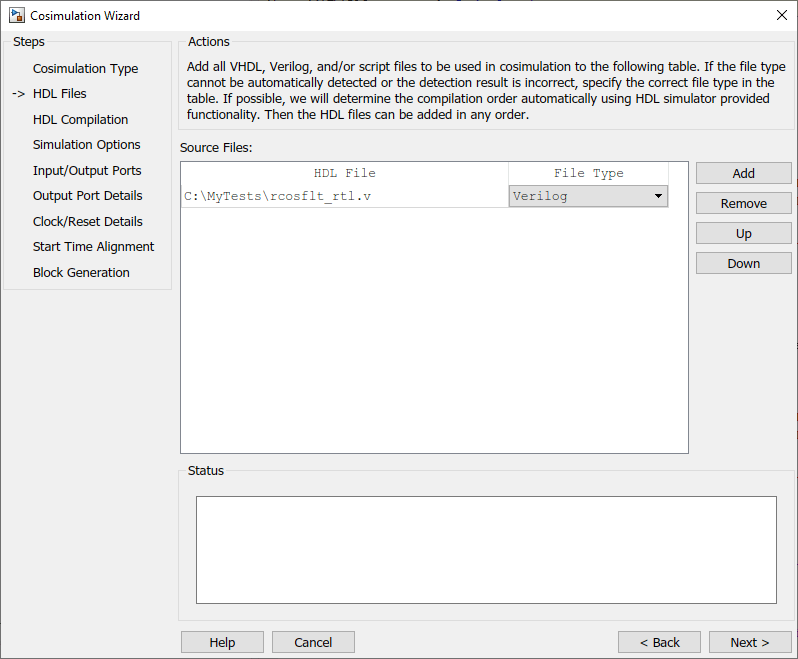

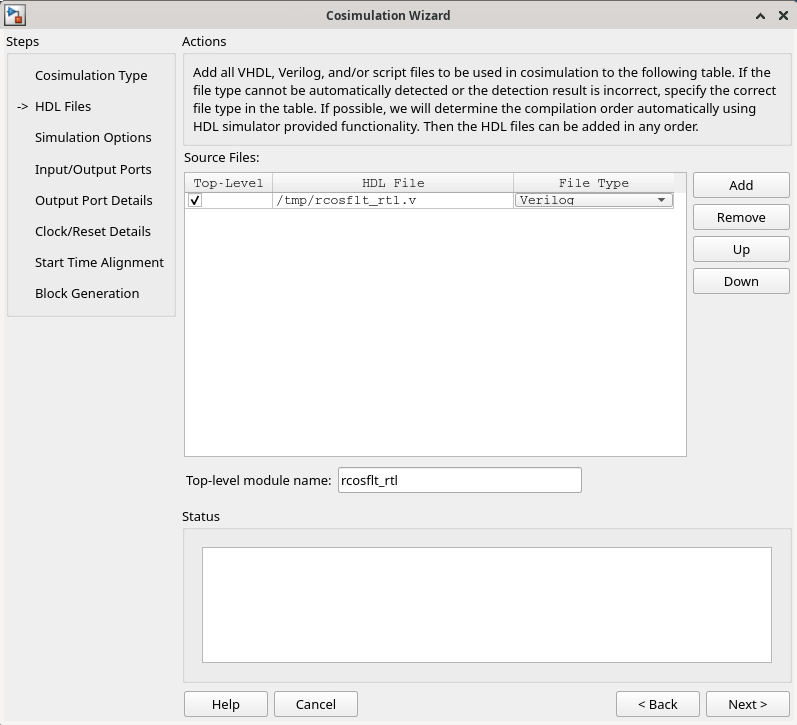

  1. Click Add and select either rcostflt_rtl.v for Verilog or rcosflt_rtl.vhd for VHDL.

  2. Review the file in the file list with the file type identified as you expected.

Click Next to proceed to the HDL Compilation page.

In the HDL Compilation page, the Cosimulation Wizard lists the default commands in the Compilation Commands window. You do not need to change these commands for this tutorial.

When you run the Cosimulation Wizard with your own code, you may add or change the compilation commands in this window.

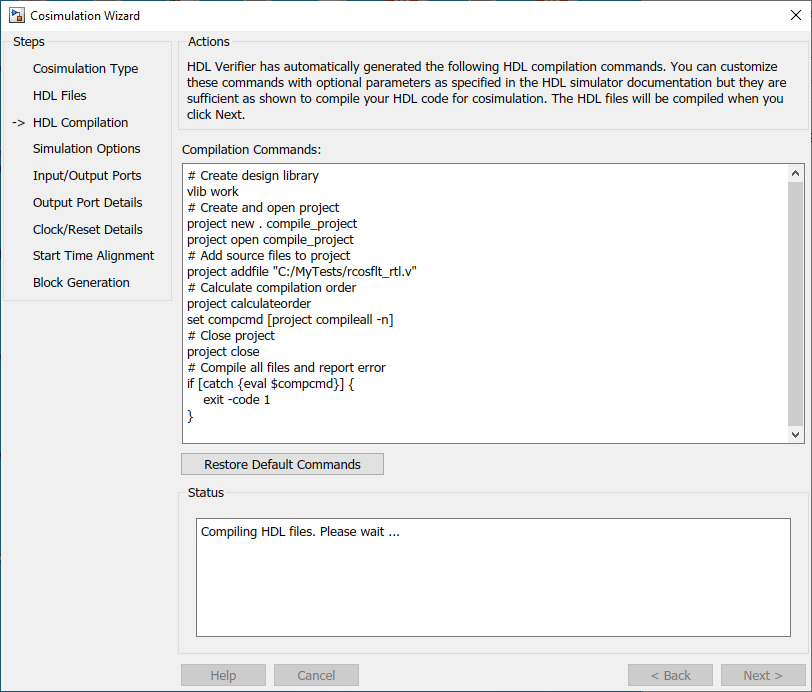

The following figure shows the compilation commands for ModelSim.

Click Next to proceed to the HDL Modules pane. This will in turn trigger the compilation. The MATLAB console displays the compilation log. If an error occurs during compilation, that error appears in the Status area.

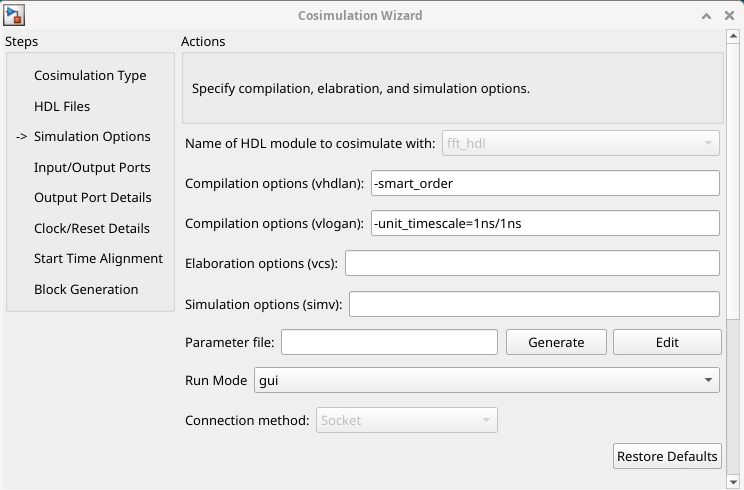

In the Simulation Options pane, perform the following steps.

ModelSim or Xcelium

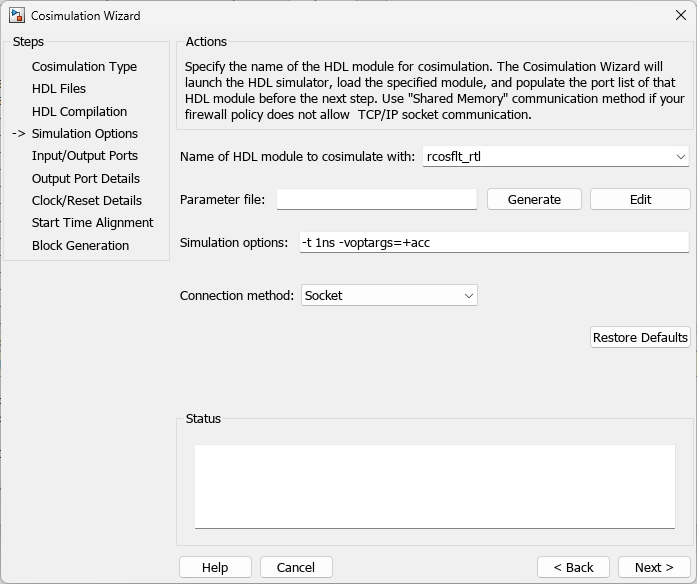

  1. a) Specify the name of HDL module/entity for cosimulation. From the drop-down list, select rcosflt_rtl. This module is the Verilog/VHDL module you use for cosimulation. If you do not see rcosflt_rtl in the drop-down list, you can enter the file name manually.

  2. b) For Connection method, select Shared Memory if your firewall policy does not allow TCP/IP socket communication.

Vivado Simulator

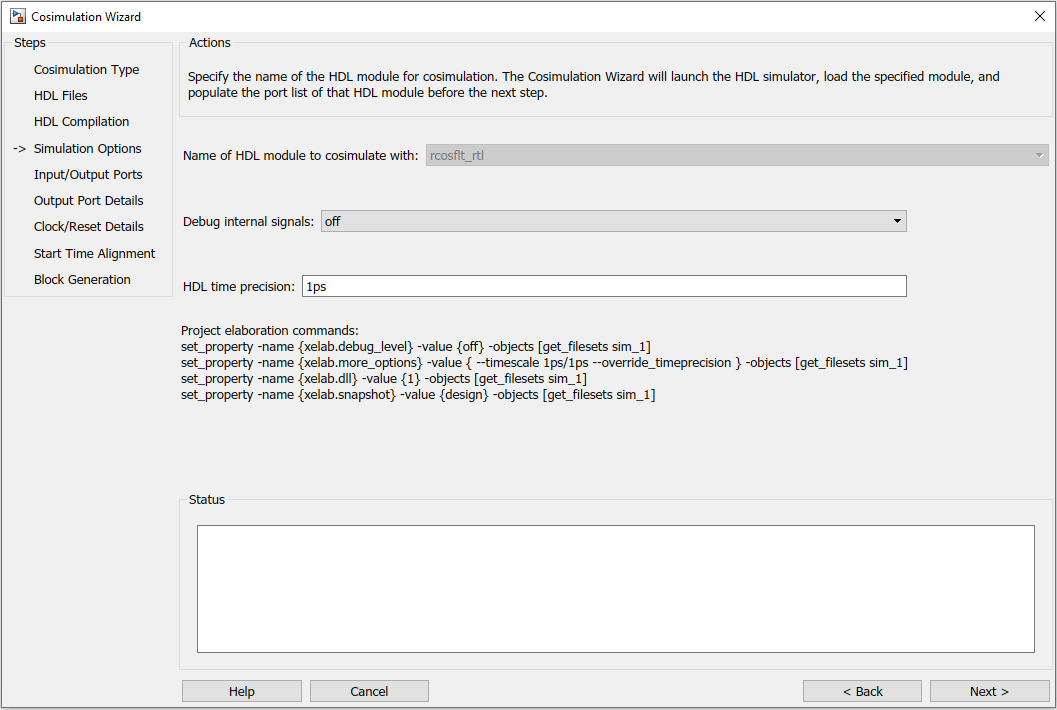

  1. By default, name of the module is set to rcosflt_rtl. This module is the Verilog/VHDL module you use for cosimulation.

  2. Set Debug internal signals to off and HDL time precision to 1ps for this example.

Click Next to proceed to the Simulink Ports pane. The Cosimulation Wizard launches the HDL simulator in the background console using the specified HDL module and simulation options. After the wizard launches the HDL simulator, the wizard populates the input and output ports on the Verilog/VHDL module rcosflt_rtl and displays them in the next step.

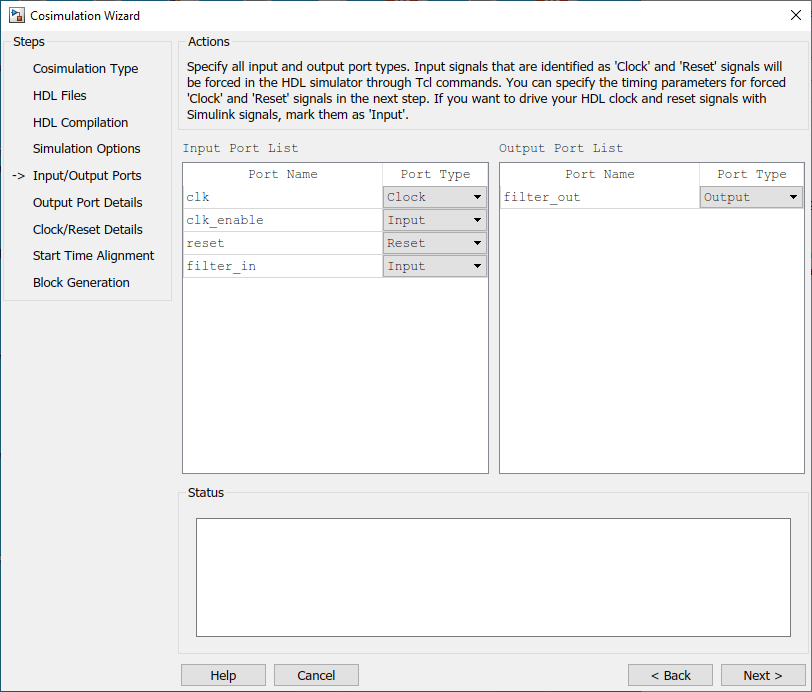

In the Specify Port Types step, the Cosimulation Wizard displays two tables containing the input and output ports of rcostflt_rtl, respectively.

The Cosimulation Wizard attempts to identify the port type of each port. If the wizard incorrectly identifies a port, you can change the port type using these tables.

  1. For input ports, you can select from Clock, Reset, Input, or Unused. HDL Verifier connects only the input ports marked Inputs to Simulink during cosimulation.

  2. HDL Verifier connects output ports marked Output with Simulink during cosimulation. The wizard and Simulink ignore those output ports marked Unused during cosimulation.

  3. You can change the parameters for signals identified as Clock and Reset at a later step.

Accept the default port types and click Next to proceed to the Output Port Details page.

In the Output Port Details page, perform the following steps:

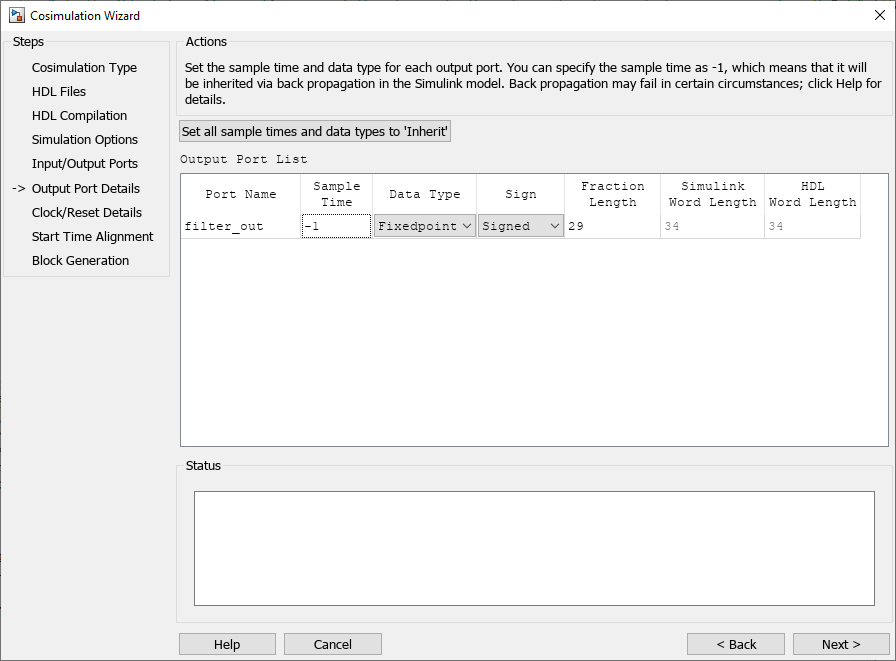

  1. Set the sample time of filter_out to -1 to inherit via back propagation.

  2. You can see from the Verilog code that the Cosimulation Wizard represents the output in a sfix34_En29 format. Change the following fields:

  • Data Type to Fixedpoint

  • Sign to Signed

  • Fraction Length to 29

Click Next to proceed to the Clock/Reset Details page.

In the Clock/Reset page, perform the following steps.

ModelSim or Xcelium

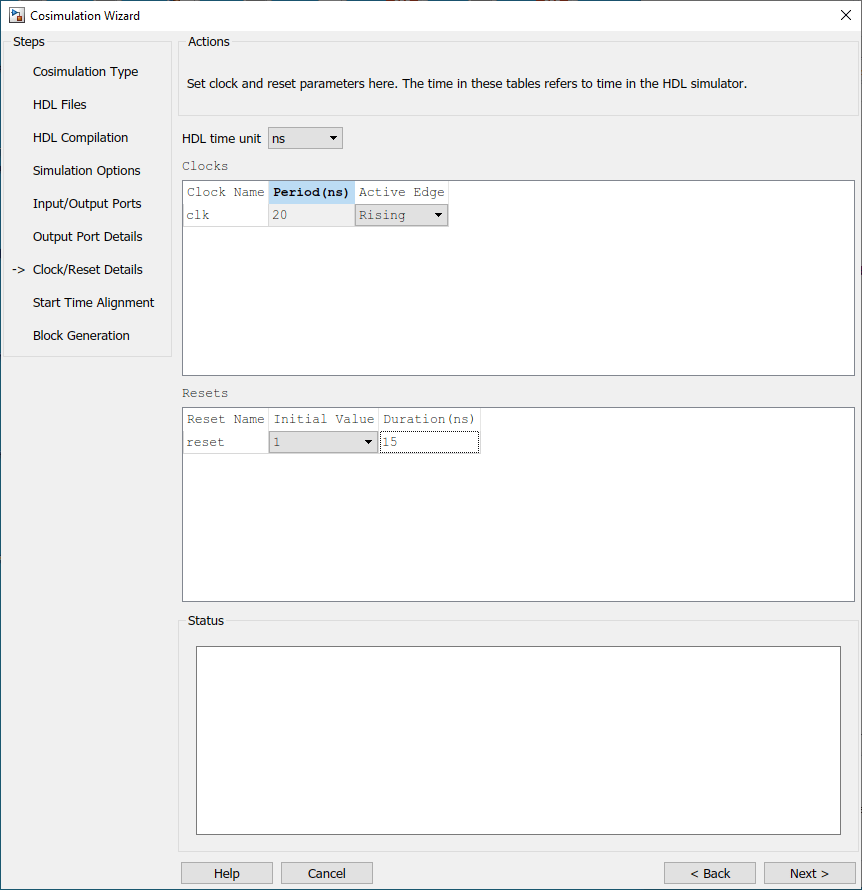

  1. Set HDL time unit to ns.

  2. Set clock period to 20.

  3. Leave or set active edge to Rising.

  4. Leave or set reset initial value to 1.

  5. Set reset signal duration to 15.

Vivado Simulator

  1. Set the HDL time unit to ps.

  2. Set the clock period to 20.

  3. Leave or set the active edge to Rising.

  4. Leave or set the reset initial value to 1.

  5. Set the reset signal duration to 15.

Click Next to proceed to the Start Time Alignment page.

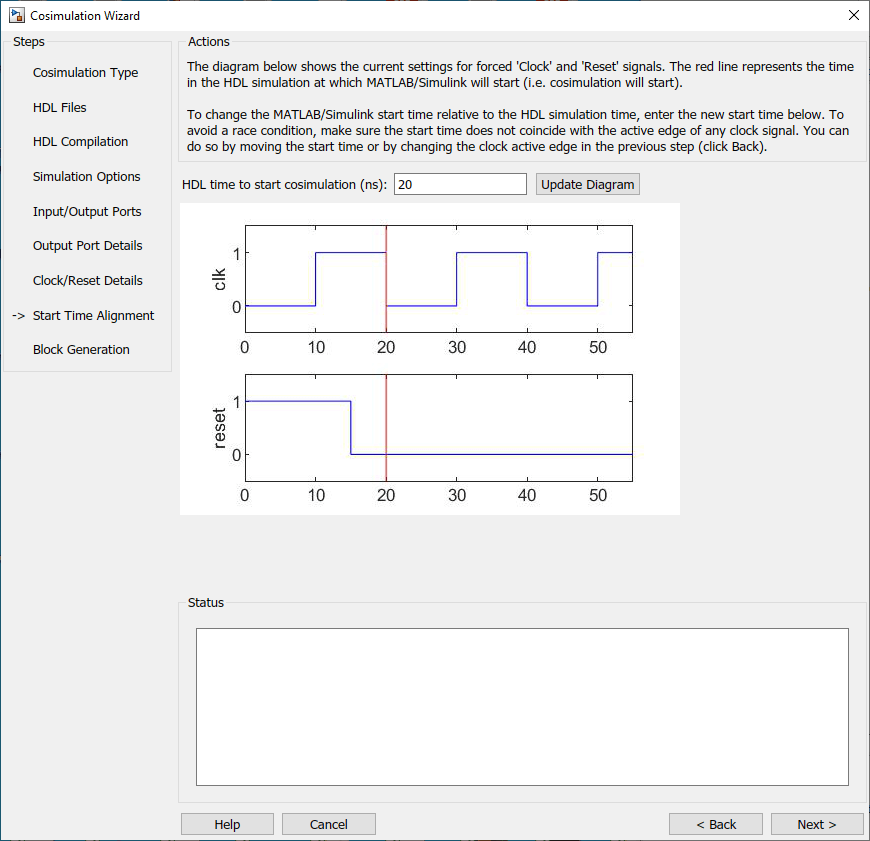

The Start Time Alignment page displays a plot for the waveforms of clock and reset signals. The Cosimulation Wizard shows the HDL time to start cosimulation with a red line. The start time is also the time at which the Simulink gets the first input sample from the HDL simulator.

In the Start Time Alignment page, set the alignment. The active edge of our clock is a rising edge. Thus, at time 20 ns in the ModelSim or Xcelium (20 ps in the Vivado simulator), the registered output of the raised cosine filter is stable. No race condition exists, and the default HDL time to start cosimulation is what we want for this simulation. You do not need to make any changes to the start time.

Click Next to proceed to Block Generation.

Before you generate the HDL Cosimulation block, you have the option to determine the timescale before you finish the Cosimulation Wizard. Alternately, you can instruct HDL Verifier to calculate a timescale later. Timescale calculation by the verification software occurs after you connect all the input/output ports of the generated HDL Cosimulation block and start simulation.

In the Block Generation page, perform the following steps.

ModelSim or Xcelium

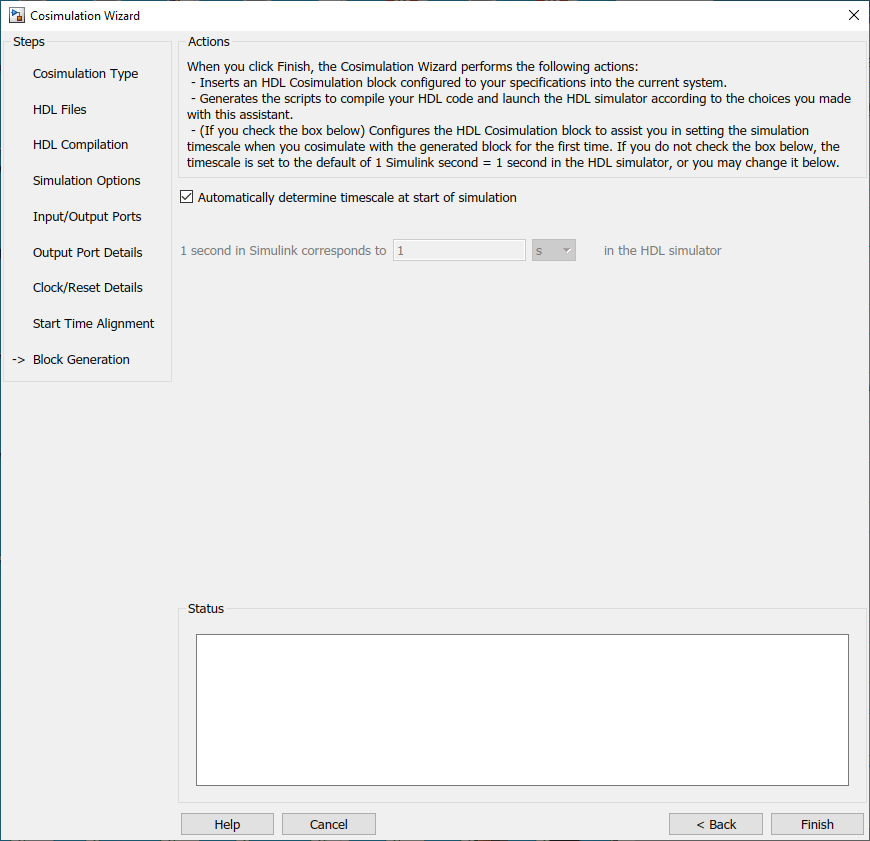

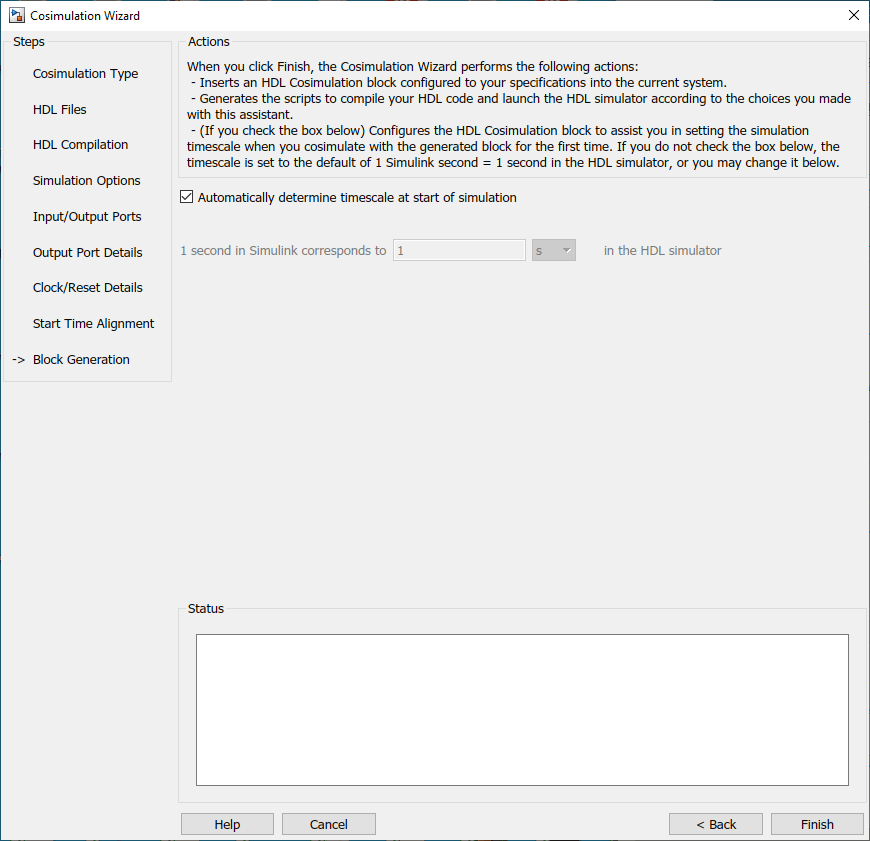

Leave Automatically determine timescale at start of simulation selected (default). Later, you will have the opportunity to view the calculated timescale and change that value before you begin simulation.

Vivado Simulator

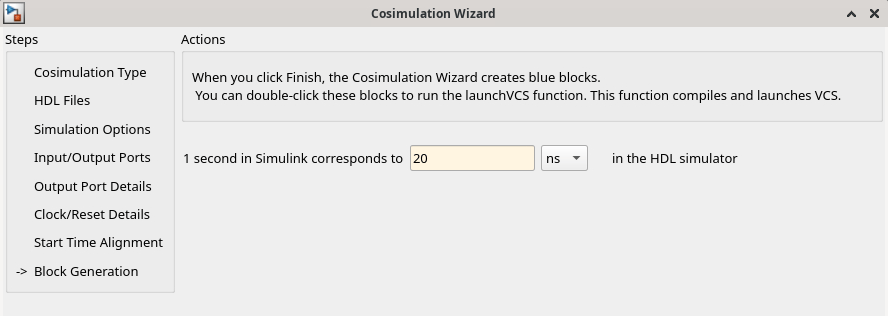

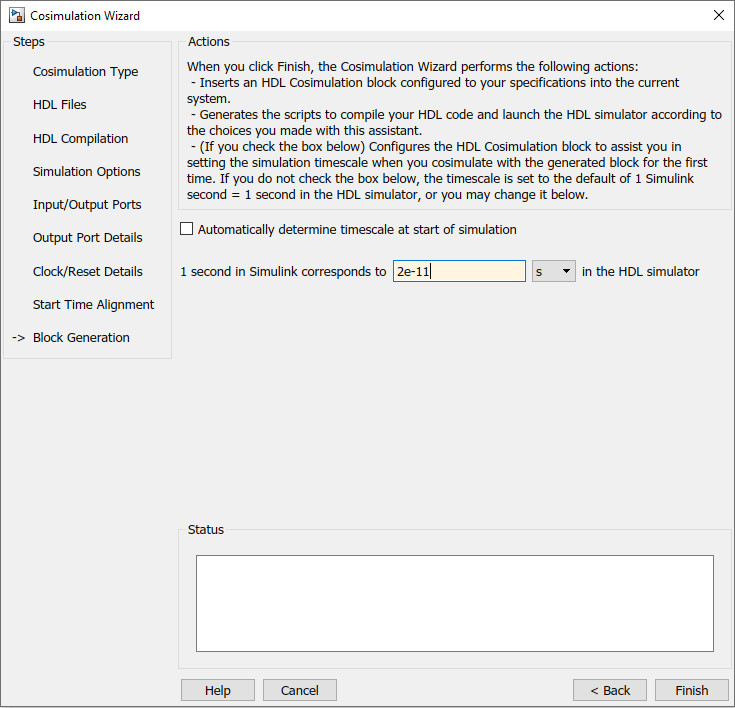

Uncheck Automatically determine the timescale at start of simulation and set the timescale by setting 1 second in Simulink corresponds to to 2e-11 s in the HDL simulator.

Click Finish to complete the Cosimulation Wizard session.

Create Test Bench to Verify HDL Design

In this example, the Simulink test bench model rcosflt_tb has been provided. After you click Finish in the Cosimulation Wizard, Simulink inserts the following items at the center of the model canvas:

  • An HDL Cosimulation block

  • A block to recompile the HDL design (contains a link to a script that is launched by double-clicking the block)

  • A block to launch the HDL simulator (contains a link to a script that is launched by double-clicking the block) (For Modelsim and Xcelium only)

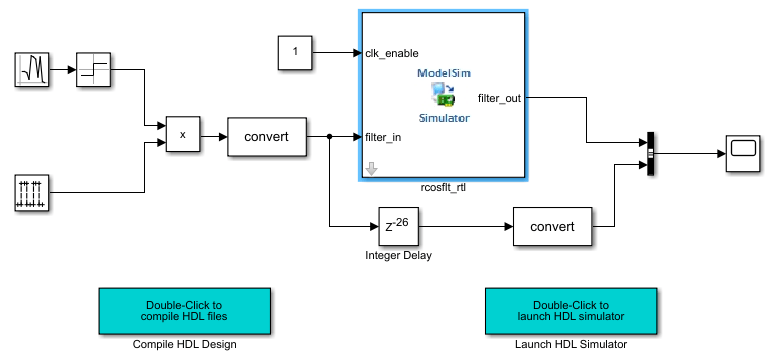

Position the HDL Cosimulation block so that the constant and convert blocks line up as inputs to the HDL Cosimulation block and the bus lines up as output. Connect the blocks. Your model now looks similar to that in the following figure.

Run Cosimulation and Verify HDL Design

ModelSim or Xcelium

  1. Launch the HDL simulator by double-clicking the block labeled Launch HDL Simulator.

  2. When the HDL simulator is ready, return to Simulink and start simulation.

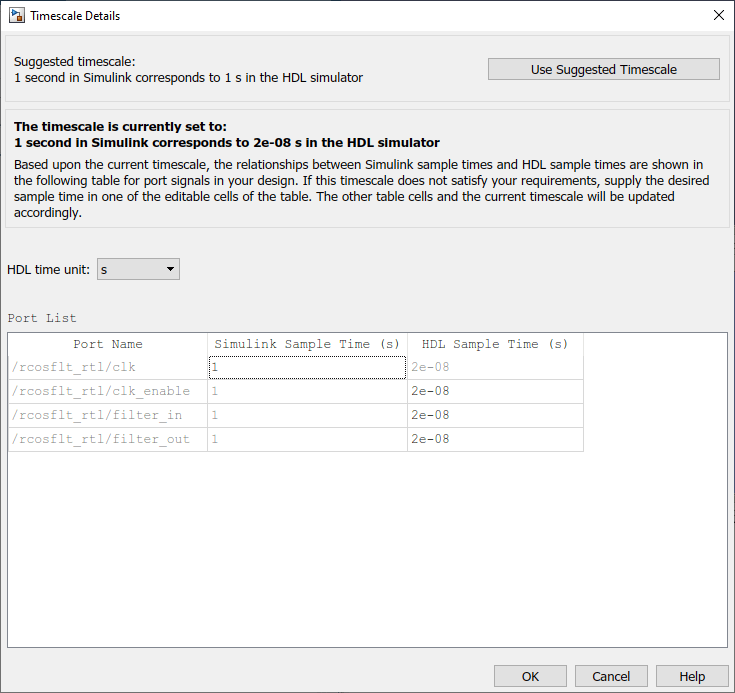

  3. Determine timescale. Recall that you selected Automatically determine timescale at start of simulation option on the last page of the Cosimulation Wizard. When doing so, HDL Verifier launches the Timescale Details graphical interface instead of starting the simulation. Both the HDL simulator and Simulink sample the filter_in and filter_out ports at 1 second. However, their sample time in the HDL simulator should be the same as the clock period (20 ns). Change the Simulink sample time of /rcosflt_rtl/clk to 1 (seconds), and press Enter. The wizard then updates the table. The following figure shows the new timescale: 1 second in Simulink corresponds to 2e-008 s in the HDL simulator.

Click OK to close the Timescale Details dialog. Restart Simulink simulation and verify the results from the scope in the test bench model.

Vivado Simulator

In the Simulink toolstrip, on the Simulation tab, click run to start the simulation. There is no separate process for the HDL simulation, since the Simulink block executes a single process with a shared DLL.

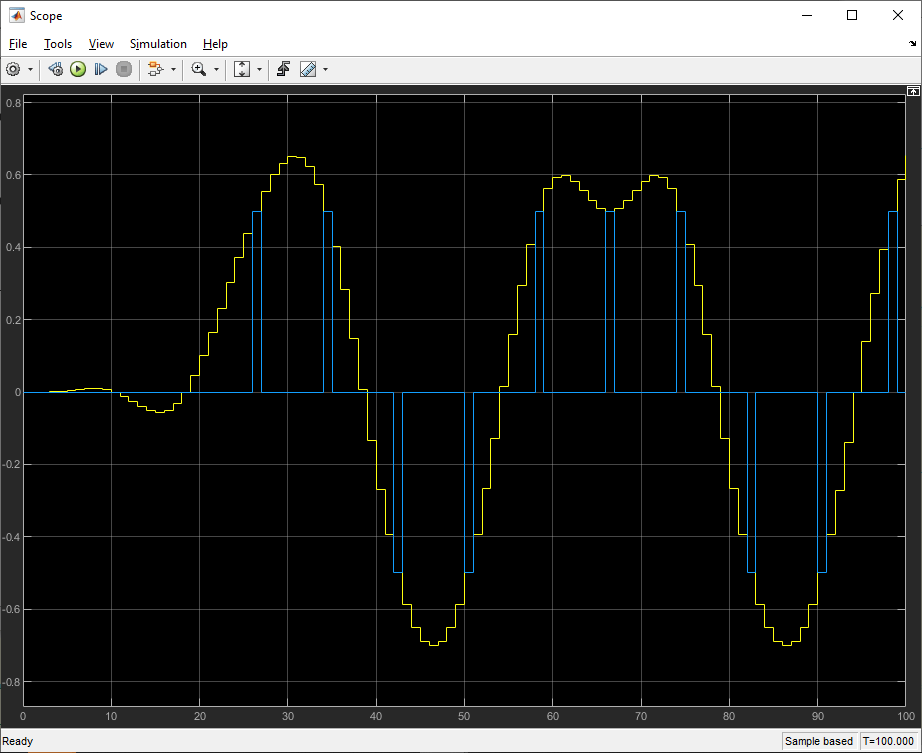

The scope displays both the delayed version of input to raised cosine filter and that filter's output. If you sample the output of this filter output directly, no inter-symbol-interference occurs.
