Model Multiple Data Type Behaviors Using a Data Dictionary
This example shows how to use referenced data dictionaries to store multiple sets of data types for a model. This example also shows how to change the data types by switching the referenced data dictionary.
Open the folder containing the example. At the MATLAB® command line, enter:
Copy these files to a local writable folder:

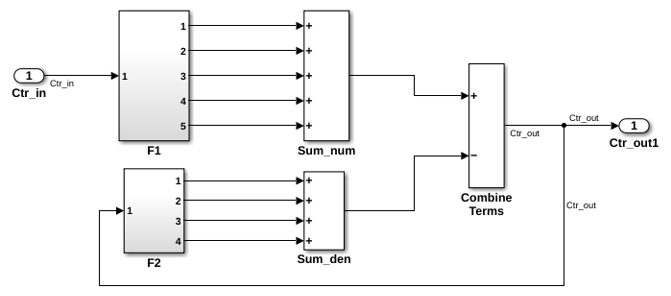

ex_data_dictionary.slx— Simulink® model using a data dictionary to store its data types
mdl_dd.sldd— Main data dictionary
flt_dd.sldd— Referenced data dictionary using floating-point data types
fix_dd.sldd— Referenced data dictionary using fixed-point data types
In the folder you copied the files to, open the
In the lower left corner of the Simulink Editor, click to open the dictionary.
The data dictionary defines the parameters of the Gain blocks in the
mdl_ddis associated with a referenced data dictionary,
flt_dd, which defines the output data types of the gain blocks in the model’s subsystems.
In the Model Explorer, in the Contents pane, the Data Source column shows the source data dictionary for each Gain block parameter.
Return to the model. Open the
F1subsystem and double-click the
a1block. The block gain is specified as
f1_a1_param, which is defined in the data dictionary.
In the Signal Attributes tab, the block output data type is
f1_a1_dt. The data type of
is defined in the referenced data dictionary,
Change Data Types of Model Parameters
fix_dd data dictionary contains the same entries as
flt_dd, but defines fixed-point data types instead of
floating-point data types. To use the fixed-point data types without changing the
fix_dd as the
referenced data dictionary of
In the Model Explorer, in the Model Hierarchy pane, right-click
Remove the referenced floating-point data dictionary. In the Data Dictionary dialog box, in the Referenced Dictionaries pane, select
flt_ddand click Remove.
Add a reference to the fixed-point data dictionary. Click Add and select
fix_dd. Click OK to close the dialog box.
In the Model Explorer, right-click
Return to the Simulink editor and update the model.
The model now uses fixed-point data types.
