# Generate Fixed-Point FIR Code Using MATLAB Function Block

This example shows how to create a fixed-point, lowpass, direct form FIR filter in Simulink®. To create the FIR filter, you use Fixed-Point Designer™ software and the MATLAB Function block.

### Open the Model

Open the `cgen_fi` model.

`open_system('cgen_fi')`

The model contains a MATLAB Function block that implements a lowpass, direct form FIR filter. Double-click the MATLAB Function block to examine the `dffirdemo` function.

```function [yout,zf] = dffirdemo(b,x,zi) %#codegen %cgen_fi doc model example %Initialize the output signal yout and the final conditions zf Ty = numerictype(1,12,8); yout = fi(zeros(size(x)),'numerictype',Ty); zf = zi; % FIR filter code for k = 1:length(x) % Update the states: z = [x(k);z(1:end-1)] zf(:) = [x(k);zf(1:end-1)]; % Form the output: y(k) = b*z yout(k) = b*zf; end % Plot the outputs only in simulation. % This does not generate C code. figure; subplot(211);plot(x); title('Noisy Signal');grid; subplot(212);plot(yout); title('Filtered Signal');grid;function [yout,zf] = dffirdemo(b, x, zi) %#codegen %codegen_fi doc model example %Initialize the output signal yout and the final conditions zf Ty = numerictype(1,12,8); yout = fi(zeros(size(x)),'numerictype',Ty); zf = zi; % FIR filter code for k=1:length(x); % Update the states: z = [x(k);z(1:end-1)] zf(:) = [x(k);zf(1:end-1)]; % Form the output: y(k) = b*z yout(k) = b*zf; end % Plot the outputs only in simulation. % This does not generate C code. figure; subplot(211);plot(x); title('Noisy Signal');grid; subplot(212);plot(yout); title('Filtered Signal');grid; ```

### Prepare the Inputs

Define the filter coefficients `b`, noise `x`, and initial conditions `zi`.

```b = fi_fir_coefficients; load mtlb x = mtlb; n = length(x); noise = sin(2*pi*2140*(0:n-1)'./Fs); x = x + noise; zi = zeros(length(b),1);```

### Define `fimath` Object Using the Property Inspector

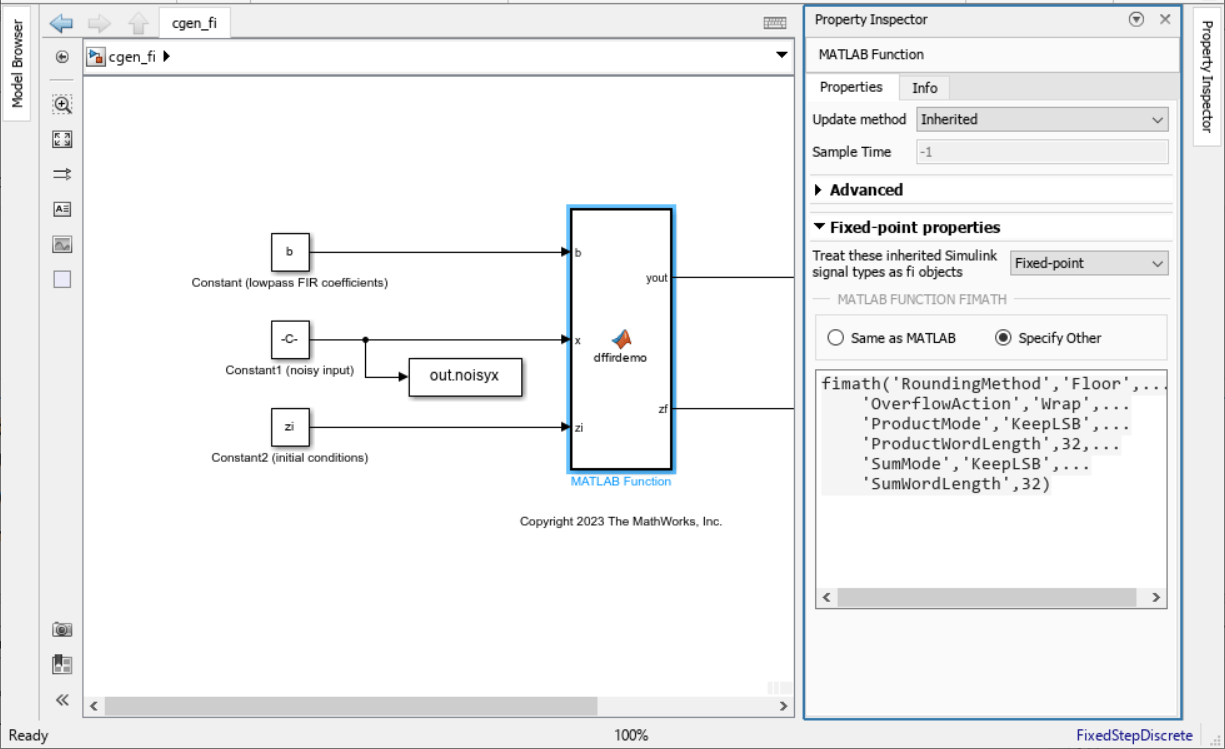

1. Select the MATLAB Function block and open the Property Inspector.

2. Select Specify Other for the MATLAB Function fimath parameter. Create this fimath object in the edit box:

```fimath('RoundingMethod','Floor',... 'OverflowAction','Wrap',... 'ProductMode','KeepLSB',... 'ProductWordLength',32,... 'SumMode','KeepLSB',... 'SumWordLength',32) ```

The `fimath` object you define here is associated with fixed-point inputs to the MATLAB Function block as well as the `fi` object you construct within the block.

By selecting Specify other for the MATLAB Function block fimath, you ensure that your model always uses the `fimath` properties you specified.

### Simulate the Model

Simulate the model. You can look at the plots of the noisy signal and the filtered signal.

`sim('cgen_fi')`

```ans = Simulink.SimulationOutput: noisyx: [4001x1 embedded.fi] tout: [1x1 double] yout: [4001x1 embedded.fi] zf: [13x1 embedded.fi] SimulationMetadata: [1x1 Simulink.SimulationMetadata] ErrorMessage: [0x0 char] ```

### Generate Code

Build embeddable C code for your model by selecting the model and typing Ctrl+B. A folder called `cgen_fi_grt_rtw` is created in your current working directory.

Inspect the file `cgen_fi_grt_rtw > cgen_fi.c` to view the code generated from the model.
