# Accelerate Fixed-Point Simulation

This example shows how to accelerate fixed-point algorithms using the `fiaccel` function. Code acceleration provides optimizations for accelerating fixed-point algorithms through MEX file generation. Fixed-Point Designer™ provides a convenience function `fiaccel` to convert your MATLAB code to a MEX function, which can greatly accelerate the execution speed of your fixed-point algorithms. In this example, you generate a MEX function from MATLAB® code, run the generated MEX function, and compare the execution speed with MATLAB code simulation.

### Description of the Example

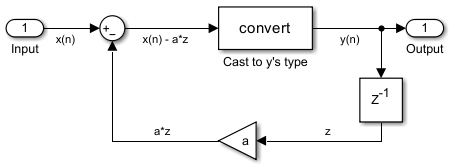

This example uses a first-order feedback loop. Casting to the output-signal type prevents infinite bit growth. The output signal is delayed by one sample and fed back to dampen the input signal. ### Inspect the MATLAB® Feedback Function Code

The MATLAB function that performs the feedback loop is in the file `fiaccelFeedback.m`. Subscripted assignment into the output `y` casts to `y`'s type and prevents infinite bit growth.

```function [y,z] = fiaccelFeedback(x,a,y,z) for n = 1:length(x) y(n) = x(n) - a*z; z(:) = y(n); end end ```

The following variables are used in this function:

• `x` is the input signal vector.

• `y` is the output signal vector.

• `a` is the feedback gain.

• `z` is the unit-delayed output signal.

### Create the Input Signal and Initialize Variables

```clearvars ```

Put the settings of the random number generator to its default value.

```rng('default'); ```

Input signal.

```x = fi(2*rand(1000,1)-1,true,16,15); ```

Feedback gain.

```a = fi(0.9,true,16,15); ```

Initialize output. Fraction length is chosen to prevent overflow.

```y = fi(zeros(size(x)),true,16,12); ```

Initialize delayed output.

```z = cast(0,'like',y); ```

### Run Interpreted MATLAB and Time

```tic y1 = fiaccelFeedback(x,a,y,z); t1 = toc; ```

### Build the MEX Version of the Feedback Code

Declare feedback gain parameter `a` constant for code generation.

```fiaccel fiaccelFeedback -args {x,coder.Constant(a),y,z} -o fiaccelFeedback_mex ```

### Run the MEX Version and Time

Run once to load the MEX file in memory.

```fiaccelFeedback_mex(x,a,y1,z); ```

Run again to time.

```tic y2 = fiaccelFeedback_mex(x,a,y,z); t2 = toc; ```

### Acceleration Ratio

Compare the MEX execution speed with MATLAB code simulation.

```ratio_of_speed_up = t1/t2 ```
```ratio_of_speed_up = 225.9071 ```

### Verify that Fixed-Point Interpreted MATLAB and MEX Outputs are Identical

```isequal(y1,y2) ```
```ans = logical 1 ```

Suppress Code Analyzer warnings.

```%#ok<*NOPTS> ```
