regARIMA Model Estimation Using Equality Constraints
estimate requires a
regARIMA model and a vector of univariate response data to estimate a regression model with ARIMA errors. Without predictor data, the model specifies the parametric form of an intercept-only regression component with an ARIMA error model. This is not the same as a conditional mean model with a constant. For details, see Alternative ARIMA Model Representations. If you specify a -by- matrix of predictor data, then estimate includes a linear regression component for the series.
estimate returns fitted values for any parameters in the input model with
NaN values. For example, if you specify a default
regARIMA model and pass a -by- matrix of predictor data, then the software sets all parameters to
NaN including the regression coefficients, and estimates them all. If you specify non-
NaN values for any parameters, then
estimate views these values as equality constraints and honors them during estimation.
For example, suppose residual diagnostics from a linear regression suggest integrated unconditional disturbances. Since the regression intercept is unidentifiable in integrated models, you decide to set the intercept to 0. Specify
'Intercept',0 in the
regARIMA model that you pass into
estimate. The software views this non-
NaN value as an equality constraint, and does not estimate the intercept, its standard error, and its covariance with other estimates. To illustrate further, suppose the true model for a response series is

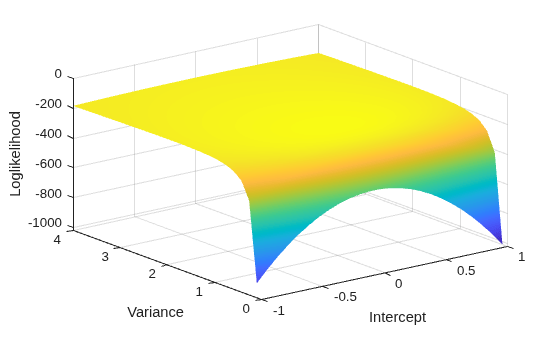

where is Gaussian with variance 1. The loglikelihood function for a simulated data set from this model can resemble the surface in the following figure over a grid of variances and intercepts.
rng(1); % For reproducibility e = randn(100,1); Variance = 1; Intercept = 0; Mdl0 = regARIMA('Intercept',Intercept,'Variance',Variance); y = filter(Mdl0,e); gridLength = 25; intGrid1 = linspace(-1,1,gridLength); varGrid1 = linspace(0.1,4,gridLength); [varGrid2,intGrid2] = meshgrid(varGrid1,intGrid1); LogLGrid = zeros(numel(varGrid1),numel(intGrid1)); for k1 = 1:numel(intGrid1) for k2 = 1:numel(varGrid1) Mdl = regARIMA('Intercept',... intGrid1(k1),'Variance',varGrid1(k2)); [~,~,LogLGrid(k1,k2)] = estimate(Mdl,y,'Display','off'); end end figure surf(intGrid2,varGrid2,LogLGrid) % 3D loglikelihood plot xlabel 'Intercept'; ylabel 'Variance'; zlabel 'Loglikelihood'; shading interp

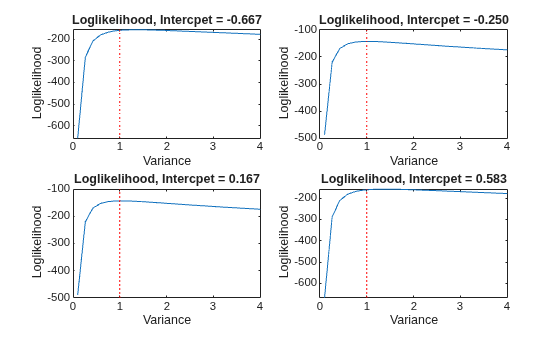

Notice that the maximum (yellow region) occurs around where the intercept is 0 and the variance is 1. If you apply an equality constraint, then the optimizer views a two-dimensional slice (in this example) of the loglikelihood function at that constraint. The following plots display the loglikelihood at several different equality constraints on the intercept.
intValue = [intGrid1(5), intGrid1(10),... intGrid1(15), intGrid1(20)]; figure for k = 1:4 subplot(2,2,k) plot(varGrid1,LogLGrid(intGrid2 == intValue(k))) title(sprintf('Loglikelihood, Intercpet = %.3f',intValue(k))) xlabel 'Variance'; ylabel 'Loglikelihood'; hold on h1 = gca; plot([Variance Variance],h1.YLim,'r:') hold off end
In each case, the maximum of the loglikelihood function occurs close to the true value of the variance.

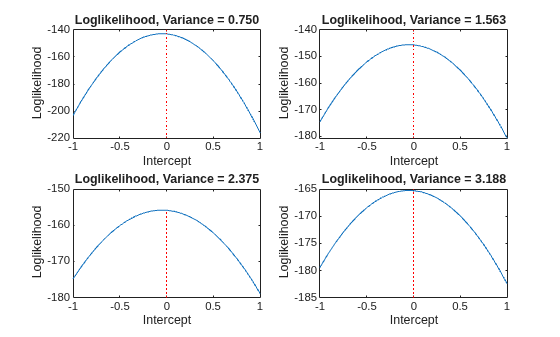

Rather than constrain the intercept, the following plots display the likelihood function using several equality constraints on the variance.
varValue = [varGrid1(5),varGrid1(10),varGrid1(15),varGrid1(20)]; figure for k = 1:4 subplot(2,2,k) plot(intGrid1,LogLGrid(varGrid2 == varValue(k))) title(sprintf('Loglikelihood, Variance = %.3f',varValue(k))) xlabel('Intercept') ylabel('Loglikelihood') hold on h2 = gca; plot([Intercept Intercept],h2.YLim,'r:') hold off end
In each case, the maximum of the loglikelihood function occurs close to the true value of the intercept.
estimate also honors a subset of equality constraints while estimating all other parameters set to
NaN. For example, suppose , and you know that . Specify
Beta = [NaN; 5; NaN] in the
regARIMA model, and pass this model with the data to
estimate optionally returns the estimated covariance matrix for the estimated parameters. If any parameter known to the optimizer has an equality constraint, then the corresponding row and column of the variance-covariance matrix is composed of zeros.
