Use Conditional Input Branch Execution

This example shows how to optimize the generated code for a model that contains Switch and Multiport Switch blocks. When you select the model configuration parameter Conditional input branch execution, Simulink® executes only blocks that compute the control input and data input that the control input selects. This optimization improves execution speed.

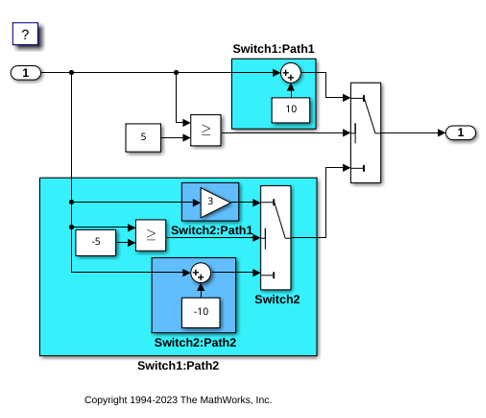

Example Model

In this example, switch paths are conditionally executed. If Switch1 control input is true, Switch1 executes blocks grouped in the Switch1:Path1 branch. If Switch1 control input is false, Switch1 executes blocks grouped in the Switch1:Path2 branch. If Switch1 executes blocks in the Switch1:Path2 branch and Switch2 control input is true, Switch2 executes blocks in the Switch2:Path1 branch. If Switch2 control input is false, Switch2 executes blocks in the Switch2:Path2 branch. The pseudo code shows this logic.

model='ConditionalInput';
open_system(model);

Generate Code

The Conditional input branch execution parameter is on by default. Enter the following command-line API to turn off the parameter.

set_param(model, 'ConditionallyExecuteInputs', 'off');

Build the model

slbuild(model)
### Starting build procedure for: ConditionalInput
### Successful completion of build procedure for: ConditionalInput

Build Summary

Top model targets:

Model             Build Reason                                         Status                        Build Duration
===================================================================================================================
ConditionalInput  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 11.813s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 12.624s

View the generated code without the optimization. These lines of code are in the ConditionalInput.c file.

cfile = fullfile('ConditionalInput_grt_rtw','ConditionalInput.c');
coder.example.extractLines(cfile,'/* Model step', '/* Model initialize', 1, 0);
/* Model step function */
void ConditionalInput_step(void)
{
  real_T rtb_Switch1;

  /* Switch: '<Root>/ Switch2' incorporates:
   *  Constant: '<Root>/C_5'
   *  Gain: '<Root>/  G3'
   *  Inport: '<Root>/input'
   *  RelationalOperator: '<Root>/Relational Operator'
   *  Sum: '<Root>/ Sum'
   */
  if (ConditionalInput_U.input >= -5.0) {
    rtb_Switch1 = 3.0 * ConditionalInput_U.input;
  } else {
    rtb_Switch1 = ConditionalInput_U.input - 10.0;
  }

  /* End of Switch: '<Root>/ Switch2' */

  /* Switch: '<Root>/Switch1' incorporates:
   *  Constant: '<Root>/C5'
   *  Inport: '<Root>/input'
   *  RelationalOperator: '<Root>/Relational Operator1'
   */
  if (ConditionalInput_U.input >= 5.0) {
    /* Outport: '<Root>/output' incorporates:
     *  Constant: '<Root>/  C10'
     *  Sum: '<Root>/ Sum1'
     */
    ConditionalInput_Y.output = ConditionalInput_U.input + 10.0;
  } else {
    /* Outport: '<Root>/output' */
    ConditionalInput_Y.output = rtb_Switch1;
  }

  /* End of Switch: '<Root>/Switch1' */
}

The generated code contains an if-else statement for the Switch2 block and an if statement for the Switch1 block. Therefore, the generated code for Switch1:Path2 executes even if the if statement for Switch1:Path1 evaluates to true.

Enable Optimization

  1. Open the Configuration Parameters dialog box.

  2. Select the Conditional input branch execution parameter. Alternatively, you can use the command-line API to enable the optimization.

set_param(model, 'ConditionallyExecuteInputs','on');

Generate Code with Optimization

slbuild(model)
cfile = fullfile('ConditionalInput_grt_rtw','ConditionalInput.c');
coder.example.extractLines(cfile,'/* Model step', '/* Model initialize', 1, 0);
### Starting build procedure for: ConditionalInput
### Successful completion of build procedure for: ConditionalInput

Build Summary

Top model targets:

Model             Build Reason                     Status                        Build Duration
===============================================================================================
ConditionalInput  Generated code was out of date.  Code generated and compiled.  0h 0m 10.606s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 11.918s

/* Model step function */
void ConditionalInput_step(void)
{
  /* Switch: '<Root>/Switch1' incorporates:
   *  Constant: '<Root>/C5'
   *  Constant: '<Root>/C_5'
   *  Inport: '<Root>/input'
   *  RelationalOperator: '<Root>/Relational Operator'
   *  RelationalOperator: '<Root>/Relational Operator1'
   *  Switch: '<Root>/ Switch2'
   */
  if (ConditionalInput_U.input >= 5.0) {
    /* Outport: '<Root>/output' incorporates:
     *  Constant: '<Root>/  C10'
     *  Sum: '<Root>/ Sum1'
     */
    ConditionalInput_Y.output = ConditionalInput_U.input + 10.0;
  } else if (ConditionalInput_U.input >= -5.0) {
    /* Switch: '<Root>/ Switch2' incorporates:
     *  Gain: '<Root>/  G3'
     *  Outport: '<Root>/output'
     */
    ConditionalInput_Y.output = 3.0 * ConditionalInput_U.input;
  } else {
    /* Outport: '<Root>/output' incorporates:
     *  Sum: '<Root>/ Sum'
     *  Switch: '<Root>/ Switch2'
     */
    ConditionalInput_Y.output = ConditionalInput_U.input - 10.0;
  }

  /* End of Switch: '<Root>/Switch1' */
}

The generated code contains one if statement. The generated code for Switch1:Path2 only executes if the if statement evaluates to false.

Close Model and Code Generation Report

bdclose(model)
