Tasks

Map tasks in the Infineon AURIX to interrupt service routines on the hardware board

Since R2024a

Description

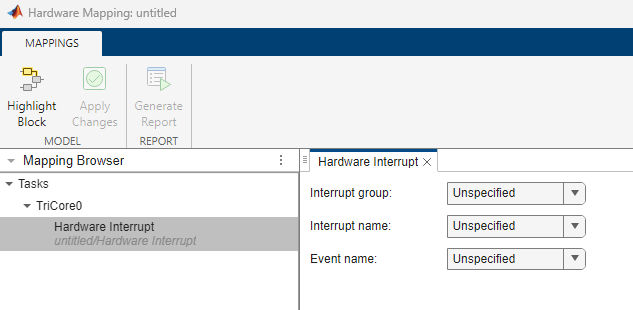

View and edit the map of tasks in the interrupt service routines (ISRs) on the hardware board.

In this tool, you can map the tasks in your software model to the available event sources and interrupts:

• Manually select the task in Browser > Tasks > CPU1 . Select the desired event or interrupt. source. Click the Apply Changes button in the toolstrip.

• The sources of events or interrupts depend on the choice of hardware board and peripherals available in the model.

×

Open the Tasks

• In the Hardware tab, click Hardware Mapping.



Parameters

CPU1

Interrupt group — Hardware interrupt peripheral group

Unspecified (default) | options vary based on peripherals available in the model

This parameter is read-only.

This parameter lists all the event source available for hardware interrupt peripheral.

Interrupt name — Event source or interrupts

Unspecified (default) | options vary based on the hardware board and available peripherals

The sources of events or interrupts depend on the choice of hardware board and peripherals available in the model. For example, the event PWM_Periodinterrupt_GTMTOM_2 is available when you select period event in PWM peripheral block.

Version History

Introduced in R2024a
