# firlpnorm

Least P-norm optimal FIR filter

## Syntax

`b = firlpnorm(n,f,edges,a)`

b = firlpnorm(n,f,edges,a,w)

b = firlpnorm(n,f,edges,a,w,p)

b = firlpnorm(n,f,edges,a,w,p,dens)

b = firlpnorm(n,f,edges,a,w,p,dens,initnum)

b = firlpnorm(...,'minphase')

[b,err] = firlpnorm(...)

## Description

`b = firlpnorm(n,f,edges,a)`

returns
a filter of numerator order `n`

which represents
the best approximation to the frequency response described by `f`

and `a`

in
the least-Pth norm sense. P is set to 128 by default, which essentially
equivalent to the infinity norm. Vector `edges`

specifies
the band-edge frequencies for multiband designs. `firlpnorm`

uses
an unconstrained quasi-Newton algorithm to design the specified filter.

`f`

and `a`

must have the
same number of elements, which can exceed the number of elements in `edges`

.
This lets you specify filters with any gain contour within each band.
However, the frequencies in `edges`

must also be
in vector `f`

. Always use `freqz`

to
check the resulting filter.

**Note**

`firlpnorm`

uses a nonlinear optimization
routine that may not converge in some filter design cases. Furthermore
the algorithm is not well-suited for certain large-order (order >
100) filter designs.

`b = firlpnorm(n,f,edges,a,w)`

uses
the weights in `w`

to weight the error. `w`

has one entry per frequency point (the same length as `f`

and `a`

)
which tells `firlpnorm`

how much emphasis to put
on minimizing the error in the vicinity of each frequency point relative
to the other points. For example,

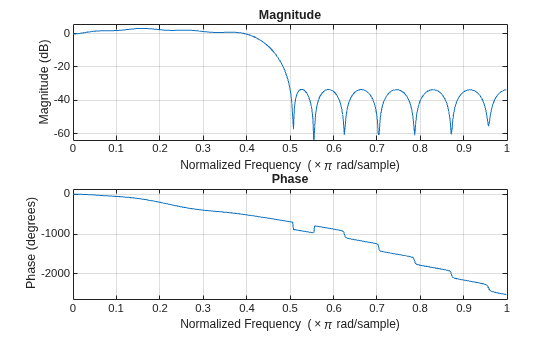

b = firlpnorm(20,[0 .15 .4 .5 1],[0 .4 .5 1],... [1 1.6 1 0 0],[1 1 1 10 10])

designs a lowpass filter with a peak of 1.6 within the passband, and with emphasis placed on minimizing the error in the stopband.

`b = firlpnorm(n,f,edges,a,w,p)`

where `p`

is
a two-element vector [`pmin pmax`

] lets you specify
the minimum and maximum values of `p`

used in the
least-pth algorithm. Default is `[2 128]`

which essentially
yields the L-infinity, or Chebyshev, norm. `pmin`

and `pmax`

should
be even numbers. The design algorithm starts optimizing the filter
with `pmin`

and moves toward an optimal filter in
the `pmax`

sense. When `p`

is set
to '** inspect**',

`firlpnorm`

does
not optimize the resulting filter. You might use this feature to inspect
the initial zero placement.`b = firlpnorm(n,f,edges,a,w,p,dens)`

specifies
the grid density `dens`

used in the optimization.
The number of grid points is [`dens*(n+1)`

]. The
default is 20. You can specify `dens`

as a single-element
cell array. The grid is equally spaced.

`b = firlpnorm(n,f,edges,a,w,p,dens,initnum)`

lets
you determine the initial estimate of the filter numerator coefficients
in vector `initnum`

. This can prove helpful for difficult
optimization problems. The pole-zero editor in Signal Processing Toolbox™ software
can be used for generating `initnum`

.

`b = firlpnorm(...,'minphase')`

where
'`minphase`

' is the last argument in the argument
list generates a minimum-phase FIR filter. By default, `firlpnorm`

design
mixed-phase filters. Specifying input option '`minphase`

'
causes `firlpnorm`

to use a different optimization
method to design the minimum-phase filter. As a result of the different
optimization used, the minimum-phase filter can yield slightly different
results.

`[b,err] = firlpnorm(...)`

returns
the least-pth approximation error `err`

.

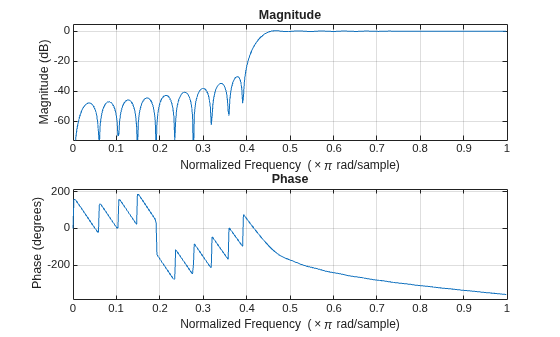

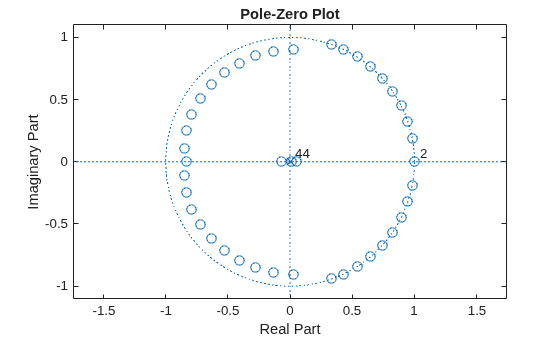

## Examples

## References

Saramaki, T, Finite Impulse Response Filter
Design, *Handbook for Digital Signal Processing*Mitra,
S.K. and J.F. Kaiser Eds. Wiley-Interscience, N.Y., 1993, Chapter
4.

## Extended Capabilities

## Version History

**Introduced in R2011a**
