trainoss

One-step secant backpropagation

Syntax

net.trainFcn = 'trainoss'
[net,tr] = train(net,...)

Description

trainoss is a network training function that updates weight and bias values according to the one-step secant method.

net.trainFcn = 'trainoss' sets the network trainFcn property.

[net,tr] = train(net,...) trains the network with trainoss.

Training occurs according to trainoss training parameters, shown here with their default values:

net.trainParam.epochs1000

Maximum number of epochs to train

net.trainParam.goal0

Performance goal

net.trainParam.max_fail6

Maximum validation failures

net.trainParam.min_grad1e-10

Minimum performance gradient

net.trainParam.searchFcn'srchbac'

Name of line search routine to use

net.trainParam.show25

Epochs between displays (NaN for no displays)

net.trainParam.showCommandLinefalse

Generate command-line output

net.trainParam.showWindowtrue

Show training GUI

net.trainParam.timeinf

Maximum time to train in seconds

Parameters related to line search methods (not all used for all methods):

net.trainParam.scal_tol20

Divide into delta to determine tolerance for linear search.

net.trainParam.alpha0.001

Scale factor that determines sufficient reduction in perf

net.trainParam.beta0.1

Scale factor that determines sufficiently large step size

net.trainParam.delta0.01

Initial step size in interval location step

net.trainParam.gama0.1

Parameter to avoid small reductions in performance, usually set to 0.1 (see srch_cha)

net.trainParam.low_lim0.1

Lower limit on change in step size

net.trainParam.up_lim 0.5

Upper limit on change in step size

net.trainParam.maxstep100

Maximum step length

net.trainParam.minstep1.0e-6

Minimum step length

net.trainParam.bmax26

Maximum step size

Network Use

You can create a standard network that uses trainoss with feedforwardnet or cascadeforwardnet. To prepare a custom network to be trained with trainoss:

  1. Set net.trainFcn to 'trainoss'. This sets net.trainParam to trainoss’s default parameters.

  2. Set net.trainParam properties to desired values.

In either case, calling train with the resulting network trains the network with trainoss.

Examples

collapse all

This example shows how to train a neural network using the trainoss train function.

Here a neural network is trained to predict body fat percentages.

[x, t] = bodyfat_dataset;
net = feedforwardnet(10, 'trainoss');
net = train(net, x, t);

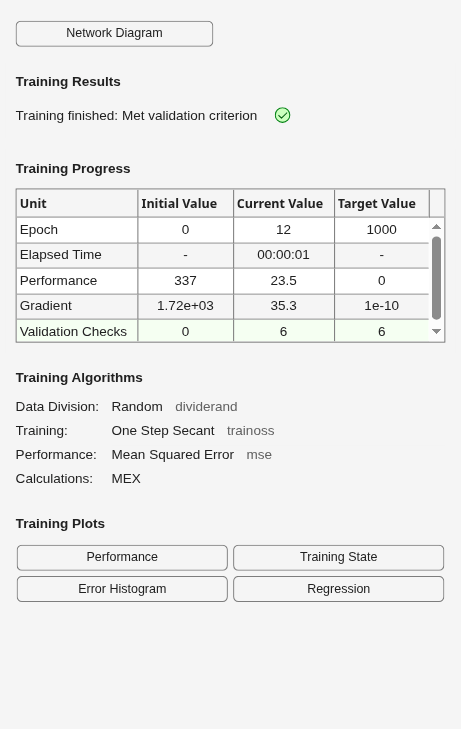

Figure Neural Network Training (20-Jul-2024 16:52:19) contains an object of type uigridlayout.

y = net(x);

More About

collapse all

One Step Secant Method

Because the BFGS algorithm requires more storage and computation in each iteration than the conjugate gradient algorithms, there is need for a secant approximation with smaller storage and computation requirements. The one step secant (OSS) method is an attempt to bridge the gap between the conjugate gradient algorithms and the quasi-Newton (secant) algorithms. This algorithm does not store the complete Hessian matrix; it assumes that at each iteration, the previous Hessian was the identity matrix. This has the additional advantage that the new search direction can be calculated without computing a matrix inverse.

The one step secant method is described in [Batt92]. This algorithm requires less storage and computation per epoch than the BFGS algorithm. It requires slightly more storage and computation per epoch than the conjugate gradient algorithms. It can be considered a compromise between full quasi-Newton algorithms and conjugate gradient algorithms.

Algorithms

trainoss can train any network as long as its weight, net input, and transfer functions have derivative functions.

Backpropagation is used to calculate derivatives of performance perf with respect to the weight and bias variables X. Each variable is adjusted according to the following:

X = X + a*dX;

where dX is the search direction. The parameter a is selected to minimize the performance along the search direction. The line search function searchFcn is used to locate the minimum point. The first search direction is the negative of the gradient of performance. In succeeding iterations the search direction is computed from the new gradient and the previous steps and gradients, according to the following formula:

dX = -gX + Ac*X_step + Bc*dgX;

where gX is the gradient, X_step is the change in the weights on the previous iteration, and dgX is the change in the gradient from the last iteration. See Battiti (Neural Computation, Vol. 4, 1992, pp. 141–166) for a more detailed discussion of the one-step secant algorithm.

Training stops when any of these conditions occurs:

  • The maximum number of epochs (repetitions) is reached.

  • The maximum amount of time is exceeded.

  • Performance is minimized to the goal.

  • The performance gradient falls below min_grad.

  • Validation performance (validation error) has increased more than max_fail times since the last time it decreased (when using validation).

References

Battiti, R., “First and second order methods for learning: Between steepest descent and Newton’s method,” Neural Computation, Vol. 4, No. 2, 1992, pp. 141–166

Version History

Introduced before R2006a
