Interact with Polar Plot
This example shows how to interact with a polar plot created using
Create Polar Plot of Helix Antenna
Create a helix antenna that has a 28 mm radius, a 1.2 mm width and 4 turns.
hx = helix('Radius',28e-3,'Width',1.2e-3,'Turns',4);
Calculate the directivity of the antenna at 1.8 GHz.
H = pattern(hx,1.8e9,0,0:1:360);

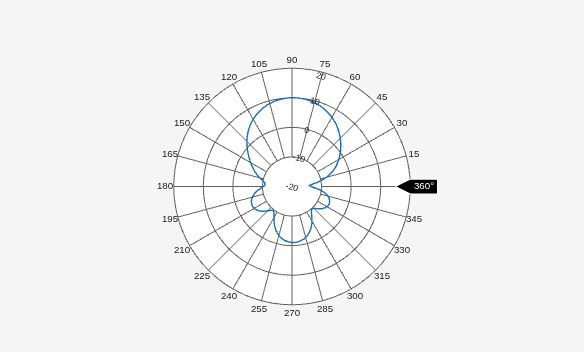

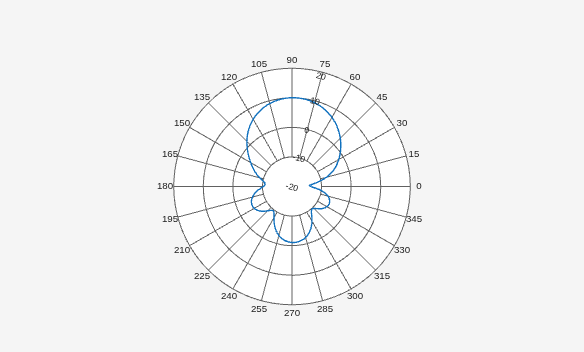

Display the polar plot of the antenna.
P = polarpattern(H);
Interact with Polar Plot

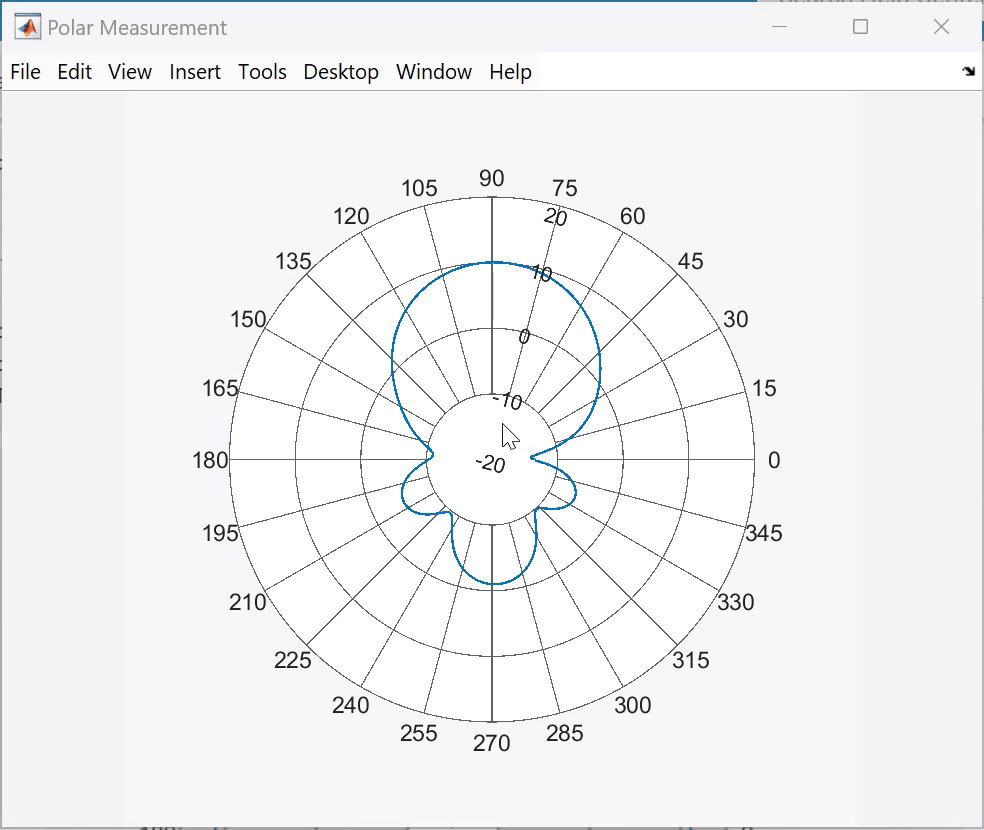

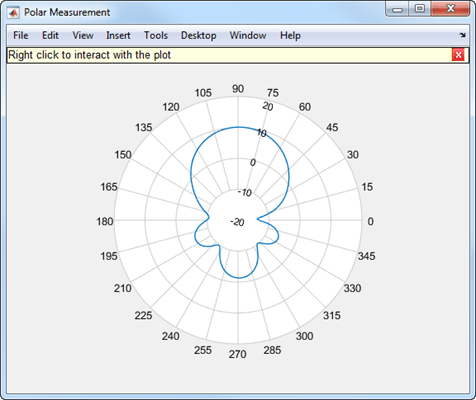

Hover over the plot. You see a message on top of the plot: Right click to interact with the plot. Right-click anywhere in the Polar Measurement window to display a context menu for interacting with the plot. For example, right-click outside the plot to show the Main context menu. Right-click inside the plot to show the Display context menu.
Update Angle and Magnitude Values

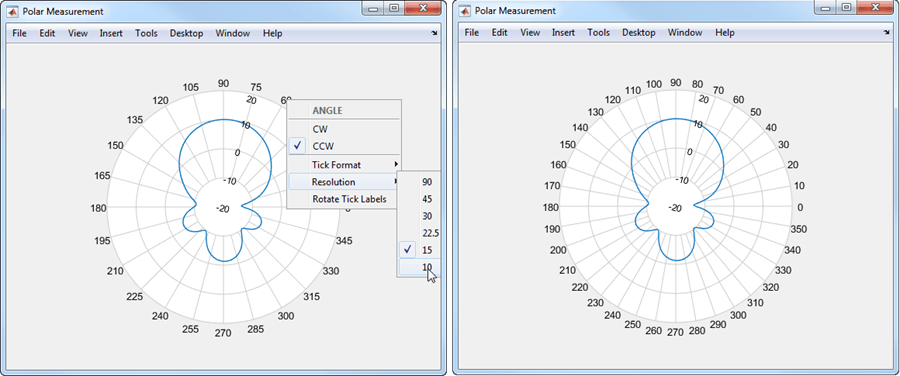

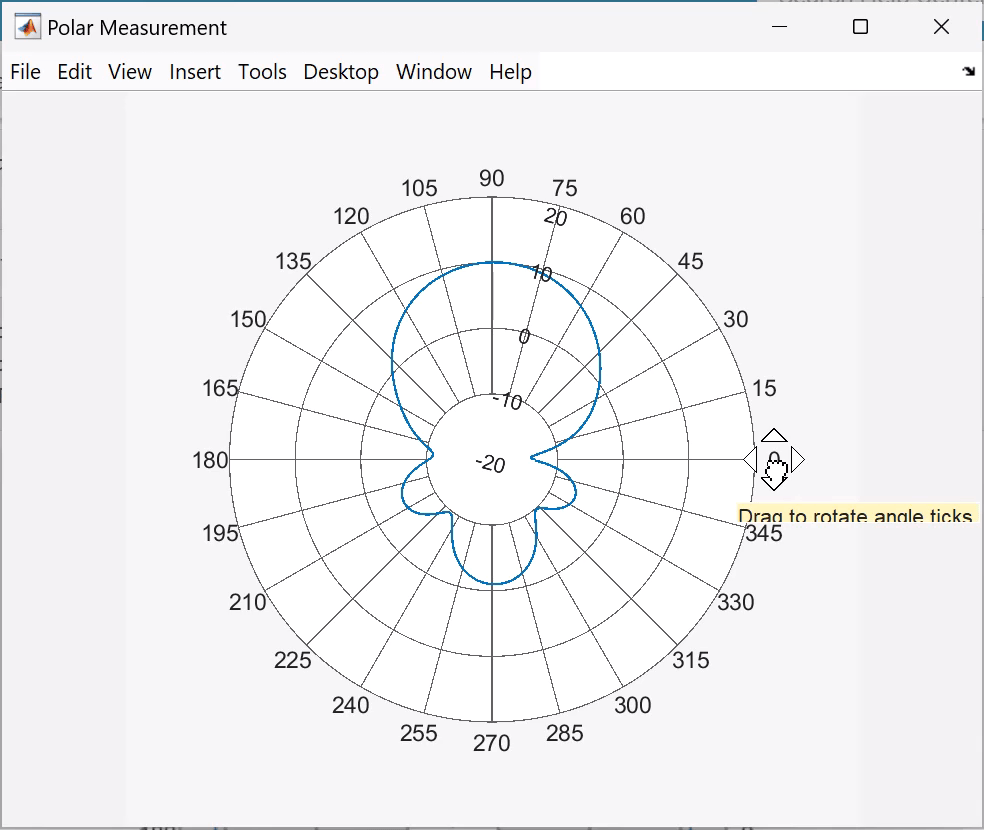

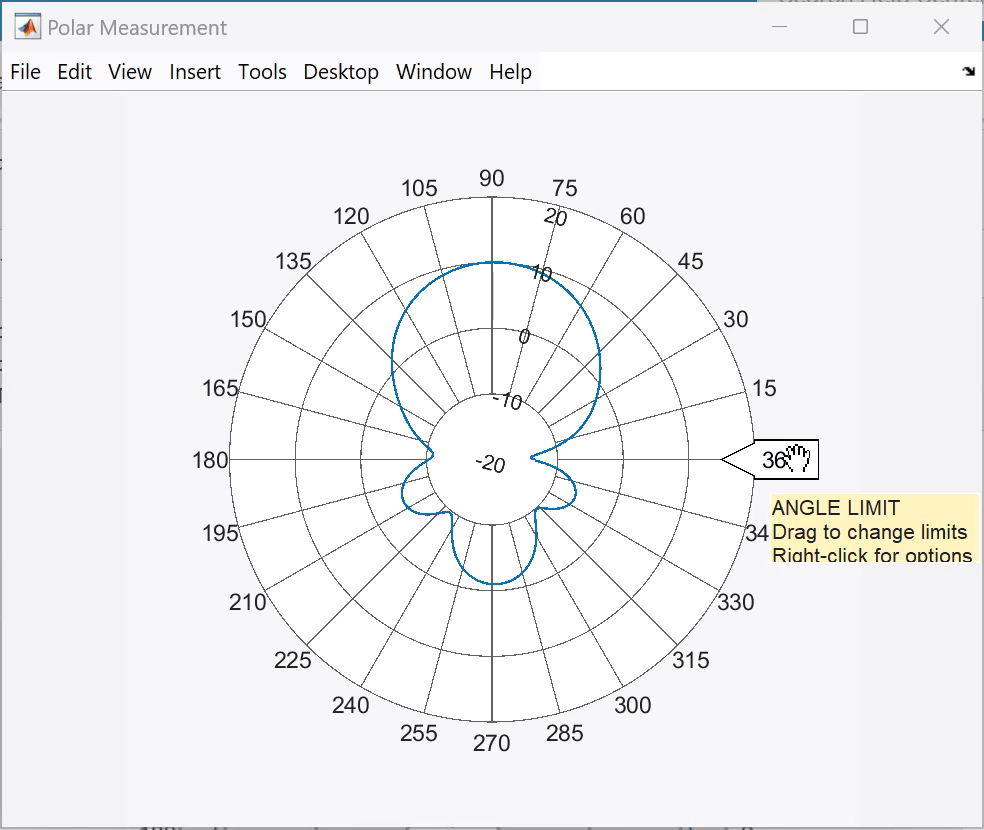

The angular values are around the circumference of the polar plot. Right-click any of the angle values to open ANGLE context menu. By default, the angles are displayed
Change the resolution from 15 degrees to 10 degrees.

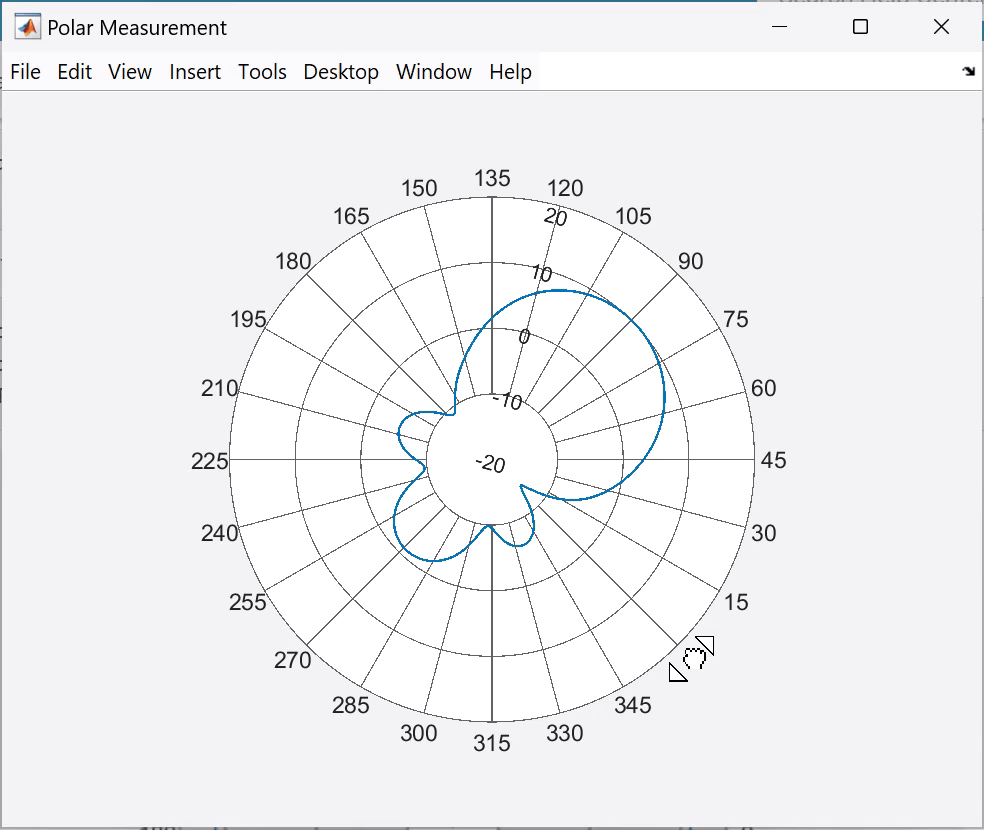

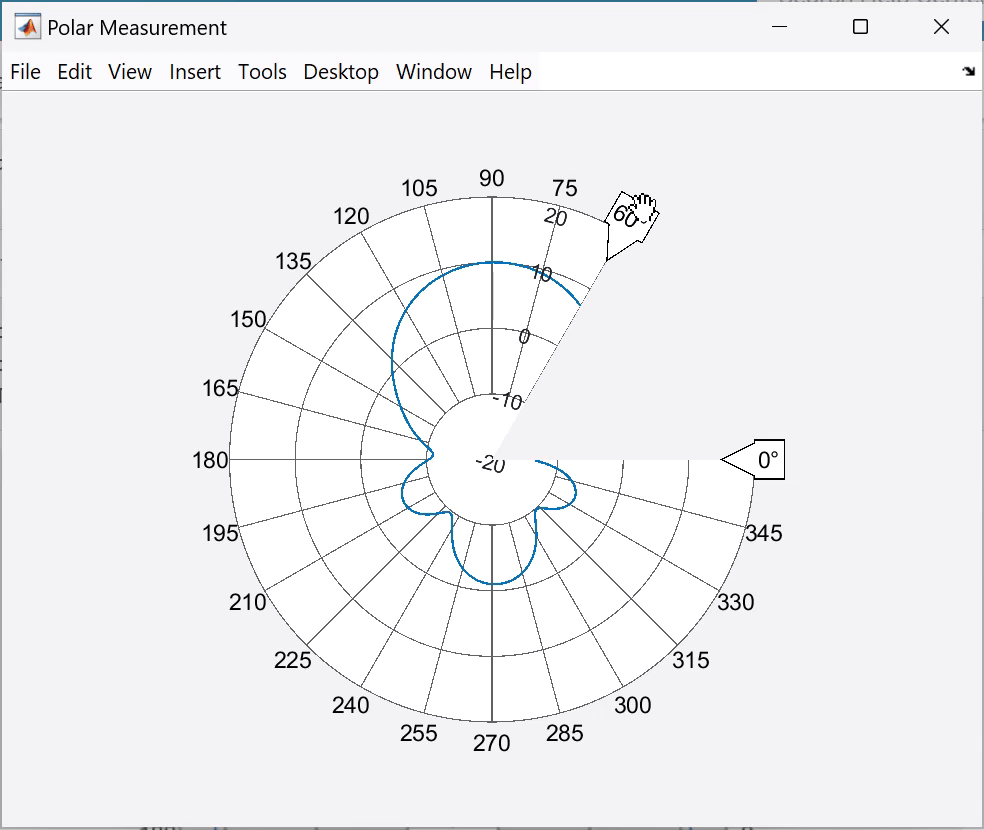

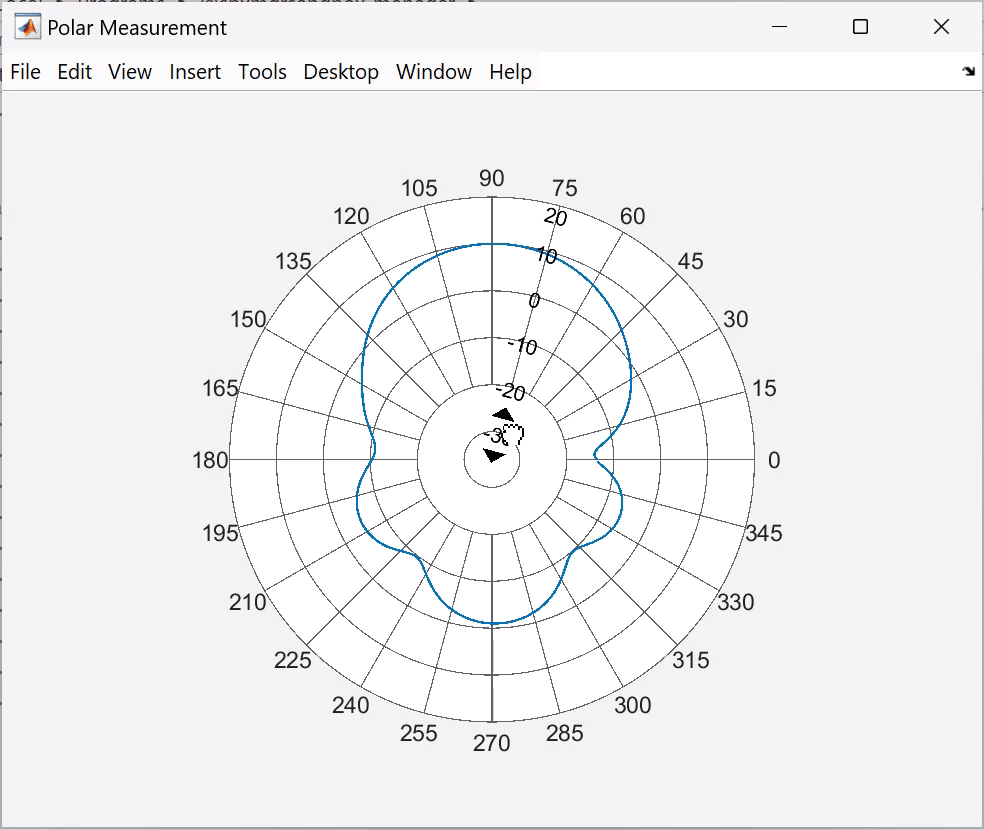

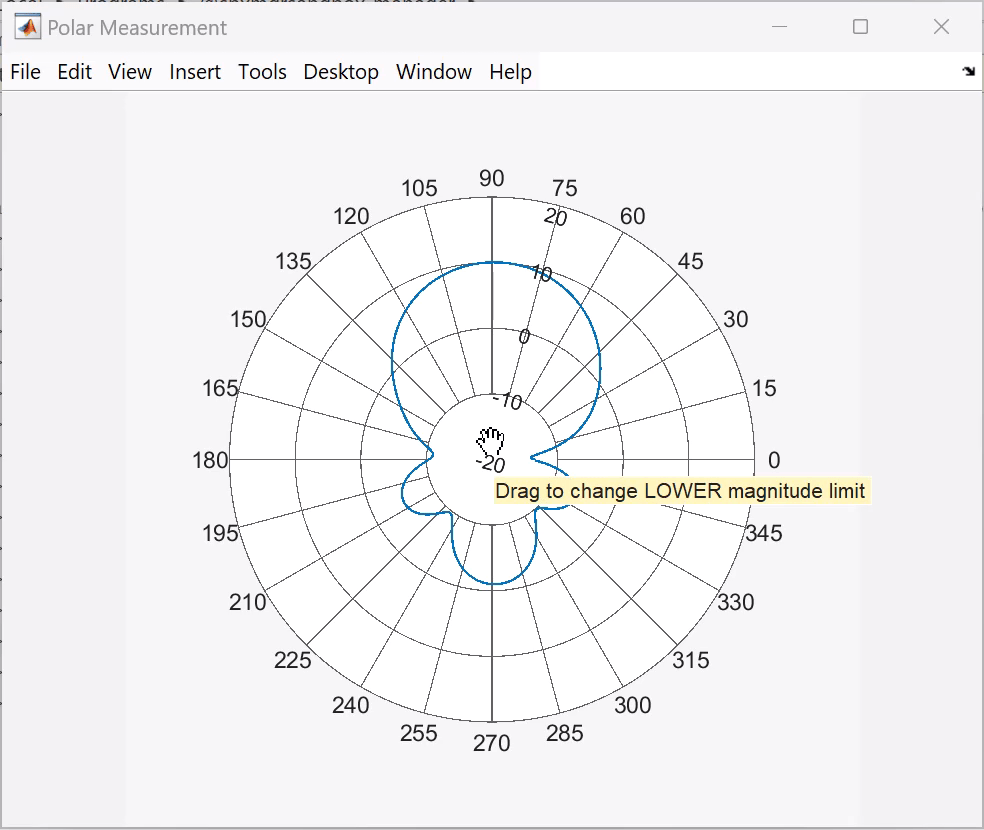

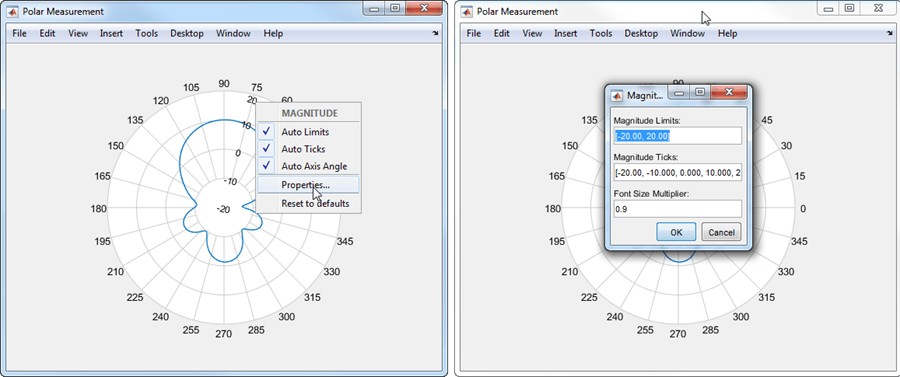

The magnitude values are on the radial lines of the plot. Right-click any of the magnitude values to open the MAGNITUDE context menu. Choose properties from the context menu to change the magnitude limits, magnitude ticks, or font size.
Add Cursors and Calculate Angle Span
Add cursors at 60 degrees and 105 degrees.

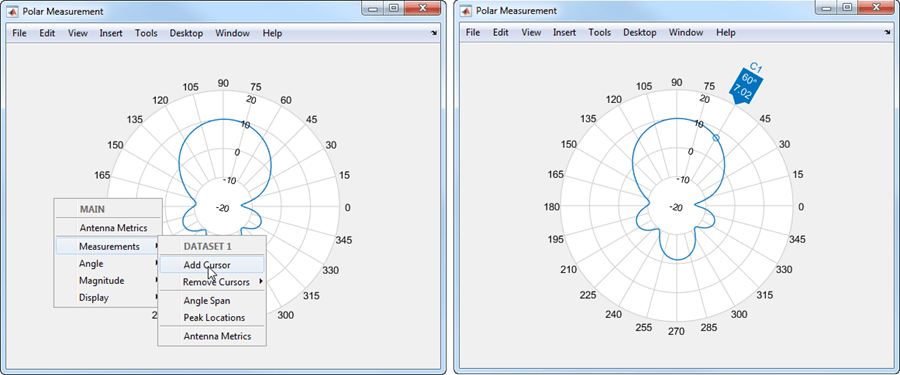

To add a cursor from the MAIN or DISPLAY context menus, select
Measurements > Add Cursor. After adding the cursor, place the mouse pointer on the cursor and drag it to 60 degrees.
You can also add a cursor by double-clicking on the angle values. Double-click 105 to add a cursor. Right-click the newly added cursor and move the cursor to exact value of 105 degrees.

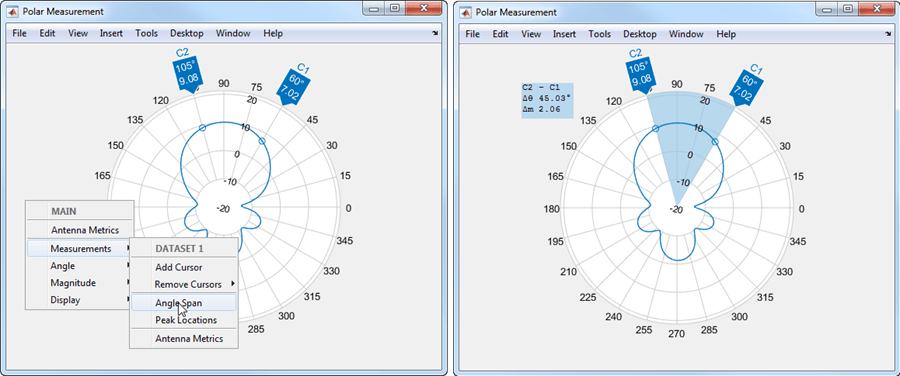

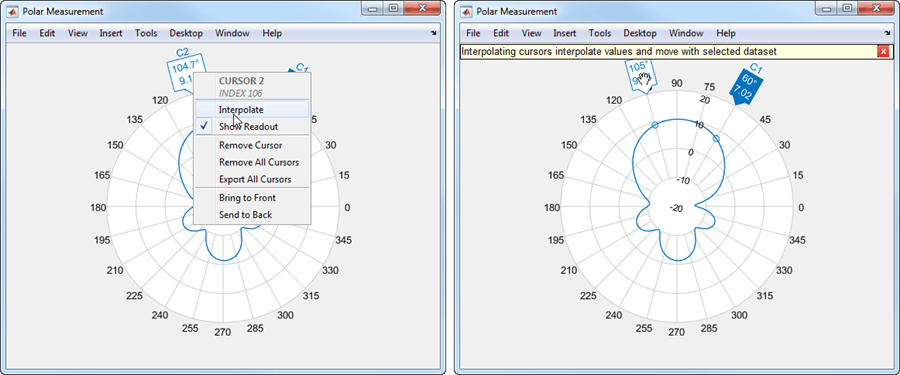

You can also interpolate the two angle values to 60 degrees and 150 degrees. Right-click on each cursor and choose Interpolate from the CURSOR context menu. To set the angle span, from the MAIN or DISPLAY context menu, select
Measurements > Angle Span.
Calculate the counterclockwise angle span between 60 degrees and 105 degrees.

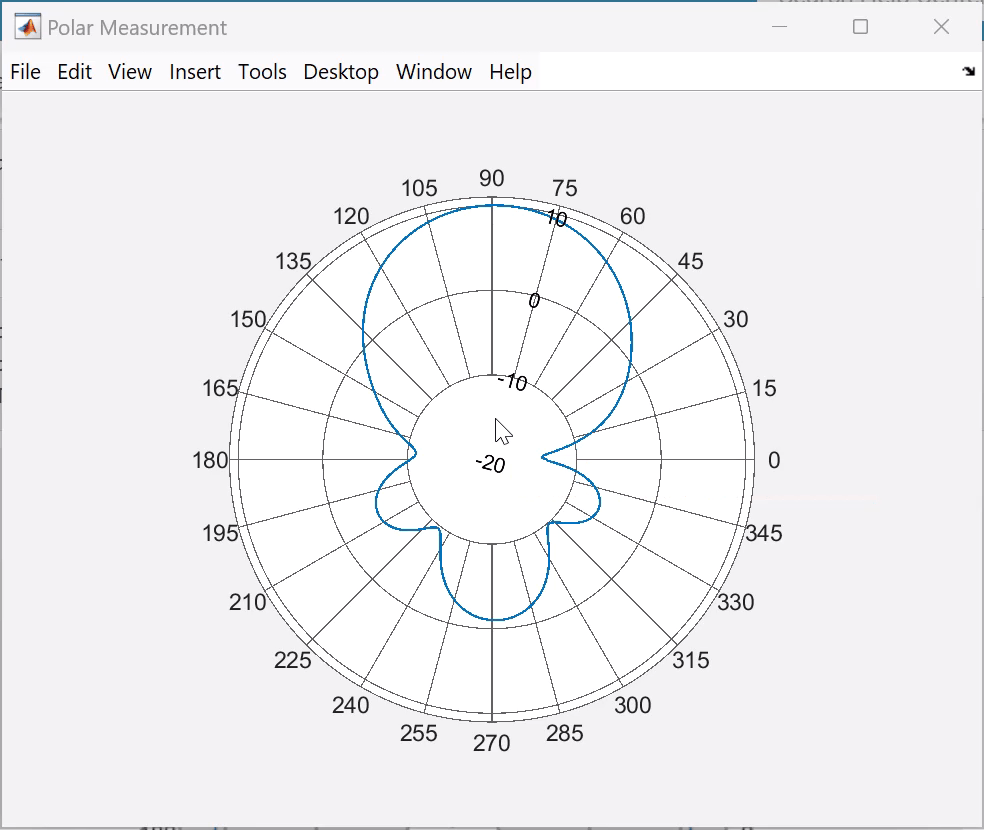

Zoom In and Zoom Out
You can use the mouse pointer to zoom in and zoom out of the plot. Place the pointer at the center of the plot and drag radially outward.
Display Peak Locations

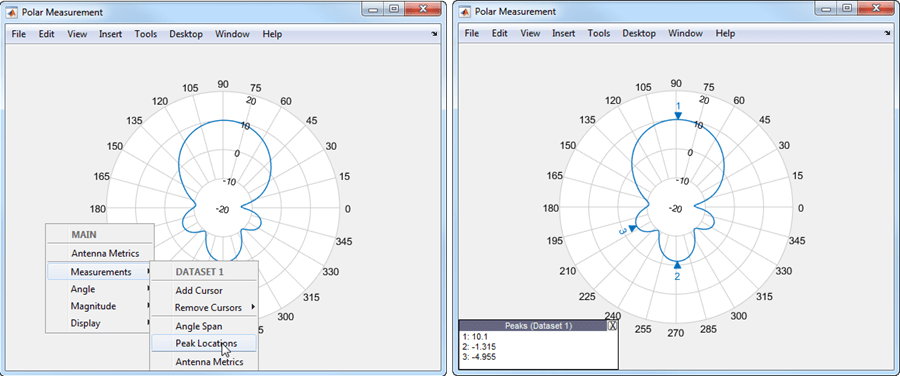

To display the peak locations from the MAIN or DISPLAY context menus, select
Measurements > Peak Location.

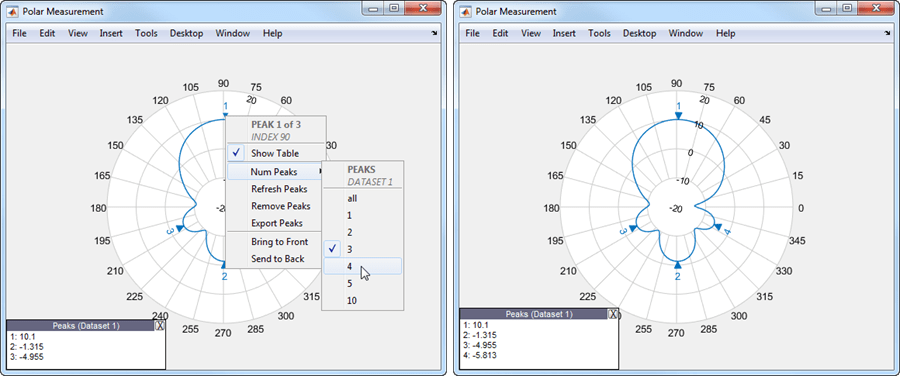

Right-click any of the peak triangles and choose NumPeaks. Increase the number of peaks to 4.
View Antenna Metrics
Antenna metrics in the polar plot display the main, back, and side lobes of the antenna. There are two ways to turn display antenna metrics on the plot:

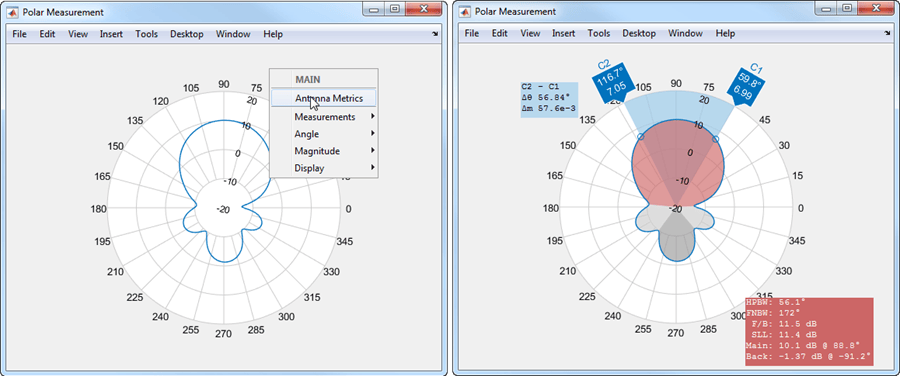

1. Right-click within the polar figure to open the Main context menu. Choose Antenna Metrics.
2. Right-click inside the polar plot to open the Display context menu. Inside the Measurement menu, choose Antenna Metrics.
By default, the plot shows the HPBW (half-power beamwidth) of the antenna. The antenna measurements text box displays:
SLL(side lobe level)
Main(main lobe peak value and corresponding angle)
Back(back lobe peak value and corresponding angle)

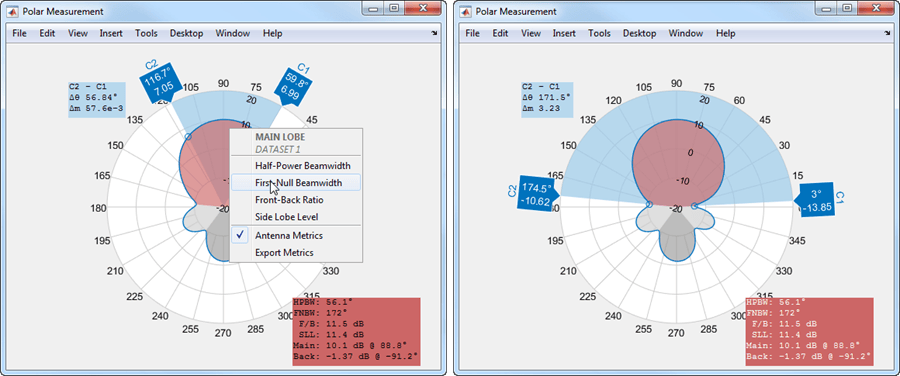

To view the FNBW, right-click inside the red or gray polar plot region to open the MAIN LOBE or the BACK LOBE context menu and then choose First-Null Beamwidth.
