Grid-Connected PV Array

by



24 Jan 2012 (Updated )

Two demonstrations of a grid-connected PV array using SimPowerSystems.

| Watch this File

File Information
Description

The following two models are included in the package:

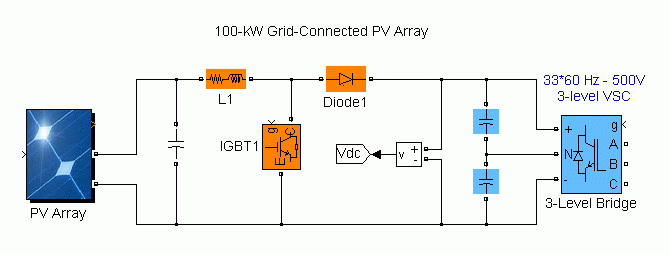

• PVarray_Grid_IncCondReg_det.mdl is a detailed model of a 100-kW array connected to a 25-kV grid via a DC-DC boost converter and a three-phase three-level Voltage Source Converter (VSC). Maximum Power Point Tracking (MPPT) is implemented in the boost converter by means of a Simulink model using the “Incremental Conductance + Integral Regulator” technique.

• PVarray_Grid_PandO_avg.mdl is an average model of a 200-kW array connected to a 25-kV grid via two DC-DC boost converters and a single three-phase VSC. The MPPT controller based on the “Perturb and Observe” technique is implemented by means of a MATLAB Function block that generates embeddable C code.

A Help file containing useful information on the two models is also included.

Authors: Pierre Giroux, Gilbert Sybille, Hydro-Quebec Research Institute (IREQ)
Carlos Osorio, Shripad Chandrachood, The Mathworks

Required Products SimPowerSystems
Simulink
MATLAB
MATLAB release MATLAB 7.13 (R2011b)
