Triangular Distribution

Overview

The triangular distribution provides a simplistic representation of the probability distribution when limited sample data is available. Its parameters are the minimum, maximum, and peak of the data. Common applications include business and economic simulations, project management planning, natural phenomena modeling, and audio dithering.

Parameters

The triangular distribution uses the following parameters.

ParameterDescriptionConstraints
aLower limitAB
bPeak locationABC
cUpper limitCB

The mean and variance of the triangular distribution are related to the parameters a, b, and c.

The mean is

mean=(a+b+c3).

The variance is

var=(a2+b2+c2abacbc18).

Parameter Estimation

Typically, you estimate triangular distribution parameters using subjectively reasonable values based on the sample data. You can estimate the lower and upper limit parameters a and c using the minimum and maximum values of the sample data, respectively. You can estimate the peak location parameter b using the sample mean, median, mode, or any other subjectively reasonable estimate of the population mode.

Probability Density Function

The probability density function (pdf) of the triangular distribution is

f(x|a,b,c)={2(xa)(ca)(ba);axb2(cx)(ca)(cb);b<xc0;x<a,x>c.

For an example, see Plot Triangular Distribution pdfs.

Cumulative Distribution Function

The cumulative distribution function (cdf) of the triangular distribution is

F(x|a,b,c)={0,x<a(xa)2(ca)(ba),axb1(cx)2(ca)(cb),b<xc1,x>c.

For an example, see Plot Triangular Distribution cdfs.

Examples

Plot Triangular Distribution pdfs

Change the value of the triangular distribution parameters a, b, and c to alter the shape of the probability distribution function (pdf).

Create four triangular distribution objects with different parameter values.

pd1 = makedist("Triangular");
pd2 = makedist("Triangular","a",-1,"b",0,"c",1);
pd3 = makedist("Triangular","a",-0.5,"b",0,"c",1);
pd4 = makedist("Triangular","a",0,"b",0,"c",1);

Compute the pdfs of the four distributions.

x = -2:0.01:2;
pdf1 = pdf(pd1,x);
pdf2 = pdf(pd2,x);
pdf3 = pdf(pd3,x);
pdf4 = pdf(pd4,x);

Plot the four pdfs.

plot(x,pdf1)
hold on
plot(x,pdf2,":")
plot(x,pdf3,"-.")
plot(x,pdf4,"--")
legend(["a = 0, b = 0.5, c = 1","a = -1, b = 0, c = 1", ...
    "a = -0.5, b = 0, c = 1","a = 0, b = 0, c = 1"], ...
    "Location","northwest");
hold off

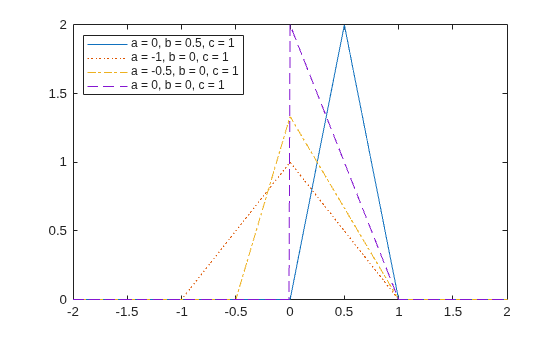

Figure contains an axes object. The axes object contains 4 objects of type line. These objects represent a = 0, b = 0.5, c = 1, a = -1, b = 0, c = 1, a = -0.5, b = 0, c = 1, a = 0, b = 0, c = 1.

As the distance between a and c increases, the density at any particular value within the distribution boundaries decreases. Because the density function integrates to 1, the height of the pdf plot decreases as its width increases. The location of the peak parameter b determines whether the pdf skews right or left, or if it is symmetrical.

Plot Triangular Distribution cdfs

Change the value of the triangular distribution parameters a, b, and c to alter the shape of the cumulative distribution function (cdf).

Create four triangular distribution objects with different parameters.

pd1 = makedist("Triangular");
pd2 = makedist("Triangular","a",-1,"b",0,"c",1);
pd3 = makedist("Triangular","a",-0.5,"b",0,"c",1);
pd4 = makedist("Triangular","a",0,"b",0,"c",1);

Compute the cdfs of the four distributions.

x = -1.2:0.01:1.2;
cdf1 = cdf(pd1,x);
cdf2 = cdf(pd2,x);
cdf3 = cdf(pd3,x);
cdf4 = cdf(pd4,x);

Plot the four cdfs.

plot(x,cdf1)
hold on
plot(x,cdf2,":")
plot(x,cdf3,"-.")
plot(x,cdf4,"--")
legend(["a = 0, b = 0.5, c = 1","a = -1, b = 0, c = 1", ...
    "a = -0.5, b = 0, c = 1","a = 0, b = 0, c = 1"], ...
    "Location","northwest");
xlim([-1.2 1.2]);
ylim([0 1.1])
hold off

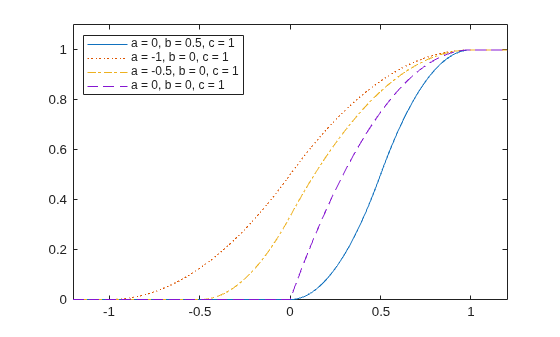

Figure contains an axes object. The axes object contains 4 objects of type line. These objects represent a = 0, b = 0.5, c = 1, a = -1, b = 0, c = 1, a = -0.5, b = 0, c = 1, a = 0, b = 0, c = 1.
