Extreme Value Distribution

Definition

The probability density function for the extreme value distribution with location parameter µ and scale parameter σ is

y=f(x|μ,σ)=σ1exp(xμσ)exp(exp(xμσ))

This form of the probability density function is suitable for modeling the minimum value. To model the maximum value, use the negative of the original values.

If T has a Weibull distribution with parameters a and b, then log T has an extreme value distribution with parameters µ = log a and σ = 1/b.

Background

Fit Extreme Value Distributions

Extreme value distributions are often used to model the smallest or largest value among a large set of independent, identically distributed random values representing measurements or observations. The extreme value distribution is appropriate for modeling the smallest value from a distribution whose tails decay exponentially fast, such as the normal distribution. It can also model the largest value from a distribution, such as the normal or exponential distributions, by using the negative of the original values.

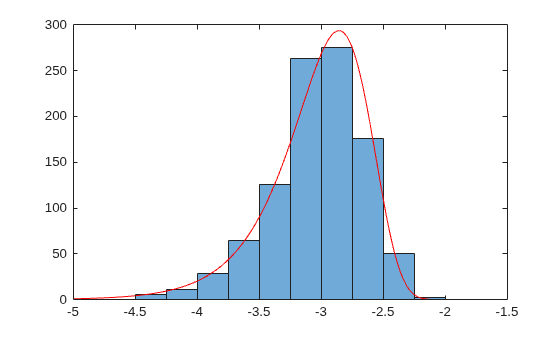

Fit an extreme value distribution to minimum values taken over 1000 sets of 500 observations from a normal distribution.

rng("default") % For reproducibility
xMinima = min(randn(1000,500),[],2);
paramEstsMinima = evfit(xMinima);
y = linspace(-5,-1.5,1001);
histogram(xMinima,-4.75:0.25:-1.75);
p = evpdf(y,paramEstsMinima(1),paramEstsMinima(2));
line(y,0.25*length(xMinima)*p,"Color","red")

Figure contains an axes object. The axes object contains 2 objects of type histogram, line.

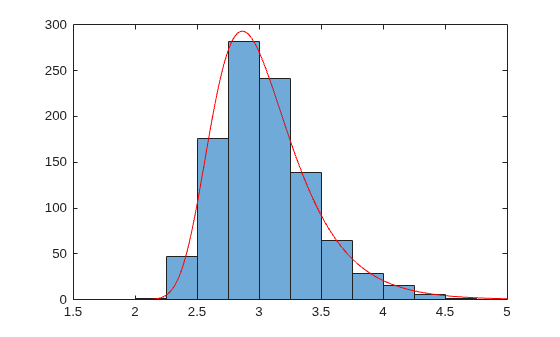

Fit an extreme value distribution to the maximum values in each set of observations.

rng("default") % For reproducibility
xMaxima = max(randn(1000,500),[],2);
paramEstsMaxima = evfit(-xMaxima);
y = linspace(1.5,5,1001);
histogram(xMaxima,1.75:0.25:4.75);
p = evpdf(-y,paramEstsMaxima(1),paramEstsMaxima(2));
line(y,0.25*length(xMaxima)*p,"Color","red")

Figure contains an axes object. The axes object contains 2 objects of type histogram, line.

Although the extreme value distribution is most often used as a model for extreme values, you can also use it as a model for other types of continuous data. For example, extreme value distributions are closely related to the Weibull distribution. If T has a Weibull distribution, then log(T) has a type 1 extreme value distribution.

Parameters

The function evfit returns the maximum likelihood estimates (MLEs) and confidence intervals for the parameters of the extreme value distribution. The following example shows how to fit some sample data using evfit, including estimates of the mean and variance from the fitted distribution.

Suppose you want to model the size of the smallest washer in each batch of 1000 from a manufacturing process. If you believe that the sizes are independent within and between each batch, you can fit an extreme value distribution to measurements of the minimum diameter from a series of eight experimental batches. The following code returns the MLEs of the distribution parameters as parmhat and the confidence intervals as the columns of parmci.

x = [19.774 20.141 19.44 20.511 21.377 19.003 19.66 18.83];
[parmhat, parmci] = evfit(x)
parmhat =
   20.2506    0.8223

parmci =
   19.644 0.49861
   20.857 1.3562

You can find mean and variance of the extreme value distribution with these parameters using the function evstat.

[meanfit, varfit] = evstat(parmhat(1),parmhat(2))
meanfit =
   19.776

varfit =
   1.1123

Examples

Compute the Extreme Value Distribution pdf

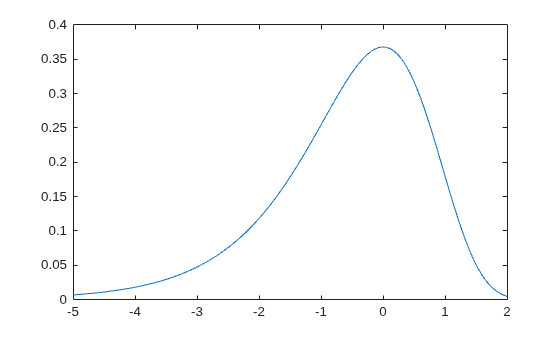

Compute the pdf of an extreme value distribution.

t = [-5:.01:2];
y = evpdf(t);

Plot the pdf.

figure;
plot(t,y)

Figure contains an axes object. The axes object contains an object of type line.

The extreme value distribution is skewed to the left, and its general shape remains the same for all parameter values. The location parameter, mu, shifts the distribution along the real line, and the scale parameter, sigma, expands or contracts the distribution.

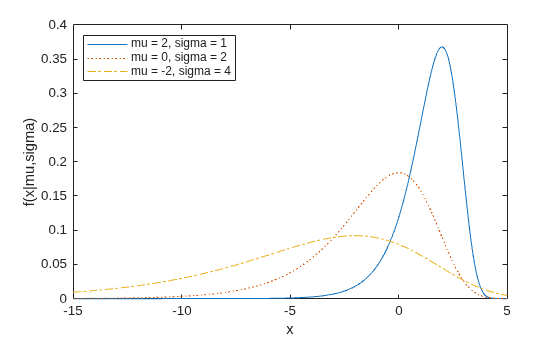

The following plots the probability function for different combinations of mu and sigma.

x = -15:.01:5;
plot(x,evpdf(x,2,1),'-', ...
     x,evpdf(x,0,2),':', ...
     x,evpdf(x,-2,4),'-.');
legend({'mu = 2, sigma = 1', ...
        'mu = 0, sigma = 2', ...
        'mu = -2, sigma = 4'}, ...
       'Location','NW')
xlabel('x')
ylabel('f(x|mu,sigma)')

Figure contains an axes object. The axes object with xlabel x, ylabel f(x|mu,sigma) contains 3 objects of type line. These objects represent mu = 2, sigma = 1, mu = 0, sigma = 2, mu = -2, sigma = 4.
